I General description

The transceiver has 212 memory channels including 10 scan
edge memory channels (5 pairs), and 2 call channels. Each of
these channels can be individually programmed with operating
frequency (pgs. 11–13), duplex direction (p. 23) and offset
(p. 27), subaudible tone encoder or tone squelch and its tone
frequency (pgs. 23, 25, 51, 52) and skip information* (p. 44).
In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.
*except for scan edge memory channels.

I Memory channel selection

D Using the tuning dial
Push [M/CALL•MW] to select
memory mode.
MAIN
T X
M
"!" appears
q Push the desired band's
[M/CALL(MW)] several
times to select memory
mode.
• "!" indicator appears
w Rotate the same band's
[DIAL] to select the de-
sired memory channel.
• Programmed memory
channels only can be se-
lected.

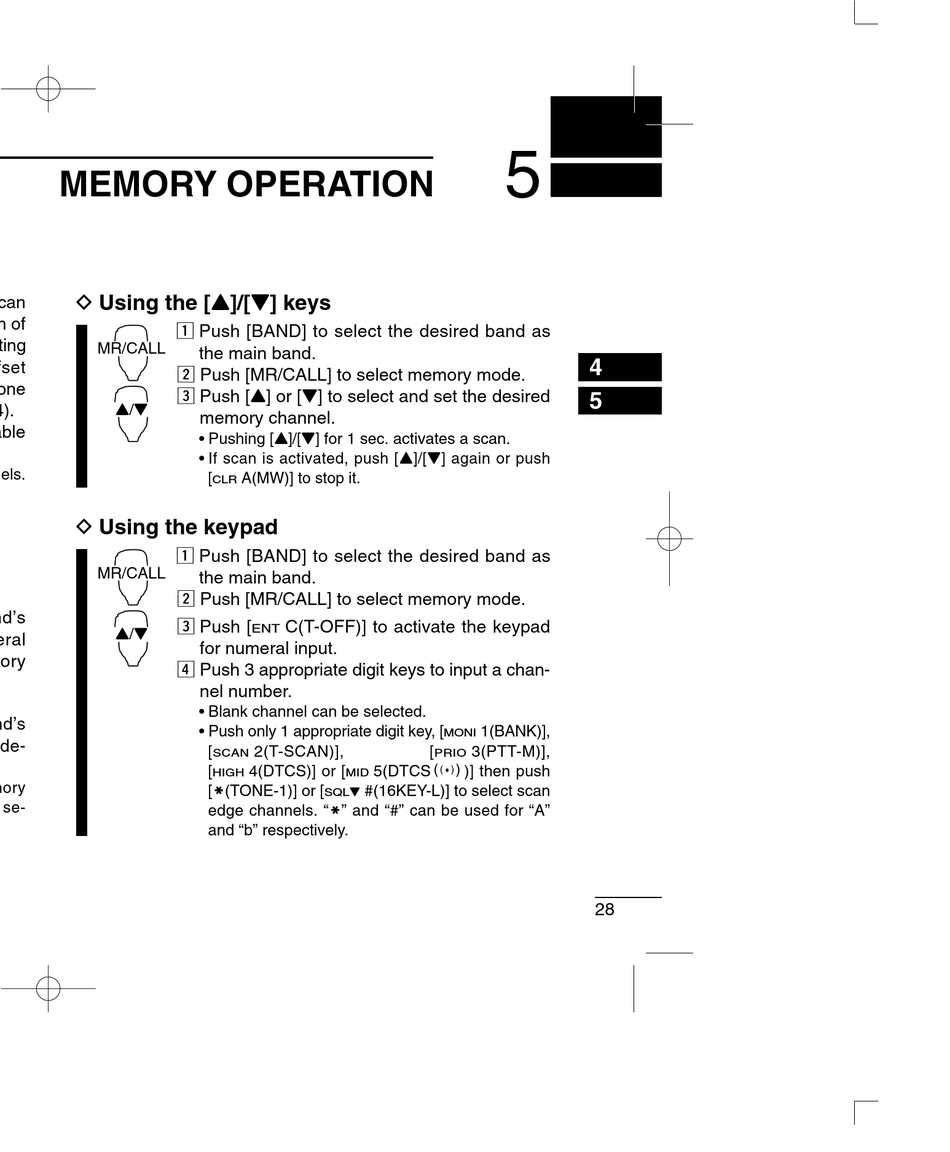

MEMORY OPERATION

D Using the [Y]/[Z] keys
z Push [BAND] to select the desired band as
MR/CALL
the main band.
x Push [MR/CALL] to select memory mode.
c Push [Y] or [Z] to select and set the desired
Y/Z
memory channel.
• Pushing [Y]/[Z] for 1 sec. activates a scan.
• If scan is activated, push [Y]/[Z] again or push
[ A(MW)] to stop it.
CLR
D Using the keypad
z Push [BAND] to select the desired band as
MR/CALL
the main band.
x Push [MR/CALL] to select memory mode.
c Push [
ENT
Y/Z
for numeral input.
v Push 3 appropriate digit keys to input a chan-
nel number.
• Blank channel can be selected.
• Push only 1 appropriate digit key, [
[ 2(T-SCAN)],
SCAN
[ 4(DTCS)] or [
HIGH
[M M (TONE-1)] or [
edge channels. "M M " and "#" can be used for "A"
and "b" respectively.
5
C(T-OFF)] to activate the keypad
1(BANK)],
MONI
[ 3(PTT-M)],
PRIO
5(DTCSS)] then push
MID
#(16KEY-L)] to select scan
Z
SQL
4
5
28
