Left band
y
u
i
o
!0
*The same controls for both the left and
right bands are arranged in symmetry.
y MAIN•BAND SWITCH [MAIN•BAND]
➥ Push to select the main band. (p. 11)
➥ Enters operating band select condition when pushed for
1 sec. (p. 11)
u VFO/MHz TUNING•SCAN SWITCH [V/MHz•SCAN]
➥ Selects and toggles VFO mode and 1 MHz (or 10 MHz
for some versions) tuning when pushed. (p. 13)
➥ Starts scan when pushed for 1 sec. (p. 40)
• Cancels a scan when pushed during scan.
iMEMORY/CALL•MEMORY WRITE SWITCH [M/CALL•MW]
➥ Push to select and toggle memory and call channel
modes. (pgs. 12, 28, 37)
➥ Selects a memory channel for programming when
pushed for 1 sec. (pgs. 29, 38, 41)
PWR
MAIN
BAND
V/MHz
SCAN
M/CALL
MW
VOL
DUAL BAND FM TRANSCEIVER
DIAL
SQL
DUP
MONI
!1
SET
VOL
i2725
SQL
TONE LOW
DTMF PRIO
!1
o VOLUME CONTROL [VOL] (p. 16)
Adjusts the audio level for relative band.
!0 TUNING DIAL [DIAL]
Selects the operating frequency (p. 13), memory channel
(p. 28), the setting of the set mode item and the scanning
direction (p. 40) for the relative band.
!1 SQUELCH CONTROL [SQL]
Varies the squelch level for relative band. (p. 16)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further. (p. 17)
PANEL DESCRIPTION

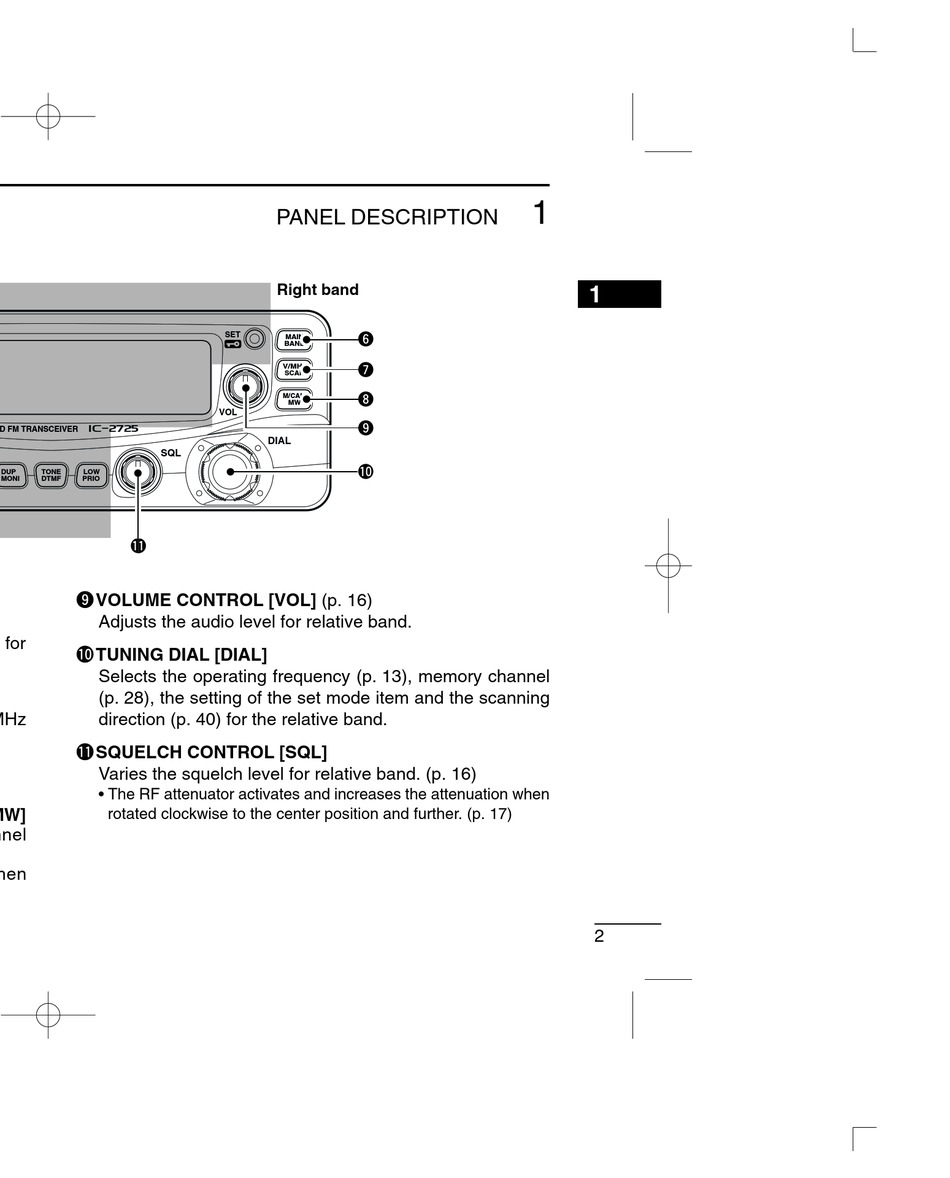

Right band
