I Dtmf Speed - Icom IC-2725E Instruction Manual

D Manual transmission
z Deactivate the DTMF memory encoder by
DTMF-S
pushing [FUNC] then [
x Push [DTMF-S] to turn the DTMF direct selec-
tion ON.
• The function indicator (microphone) lights green.
c Push one of "0" to "9" and "A" to "F" keys mo-
mentarily, then push the desired DTMF keys,
0–9 and A to F.
• A: [ A(MW)]
CLR
C: [ C(T-OFF)]
ENT
E: [M M (TONE-1)]
• Automatically transmits without pushing PTT.
• The first code, one of "A" to "F," is not transmitted.
DTMF code transmission starts from the 2nd code.
v Push [DTMF-S] again to deactivate the DTMF
direct selection.
B(D-OFF)].
SET
B: [ B(D-OFF)],
SET
D: [ D(MUTE)],
Y
SQL
F: [ #(16KEY-L)]
Z
SQL
DTMF MEMORY ENCODER

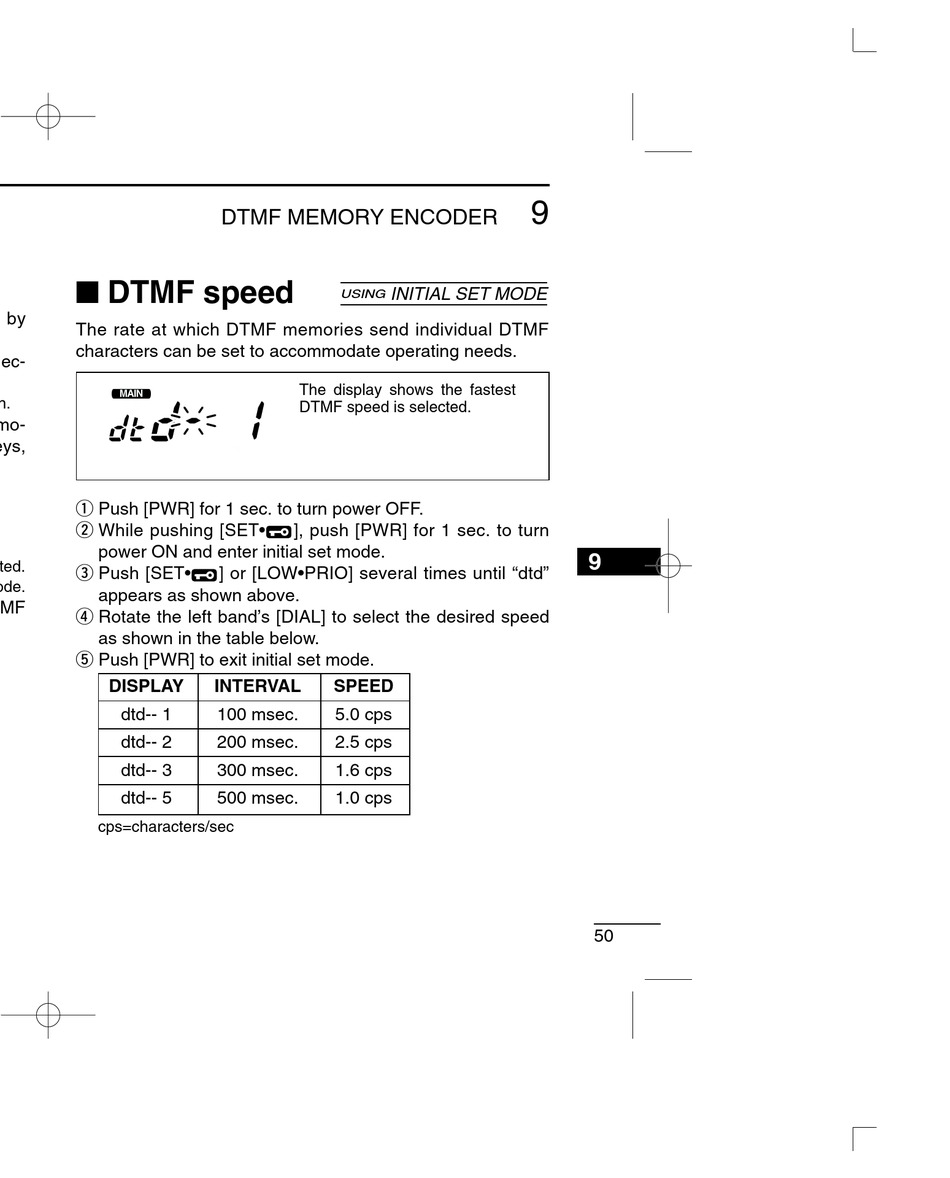

I DTMF speed

The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
MAIN
T X
M
q Push [PWR] for 1 sec. to turn power OFF.
w While pushing [SET•
], push [PWR] for 1 sec. to turn
power ON and enter initial set mode.
e Push [SET•
] or [LOW•PRIO] several times until "dtd"
appears as shown above.
r Rotate the left band's [DIAL] to select the desired speed
as shown in the table below.
t Push [PWR] to exit initial set mode.
DISPLAY INTERVAL
dtd-- 1 100 msec.
dtd-- 2 200 msec.
dtd-- 3 300 msec.
dtd-- 5 500 msec.
cps=characters/sec
INITIAL SET MODE
USING
The display shows the fastest
DTMF speed is selected.
SPEED
5.0 cps
2.5 cps
1.6 cps
1.0 cps
9
9
50
