2. Pull the hard drive (3) out of the node by the latch handle (2).

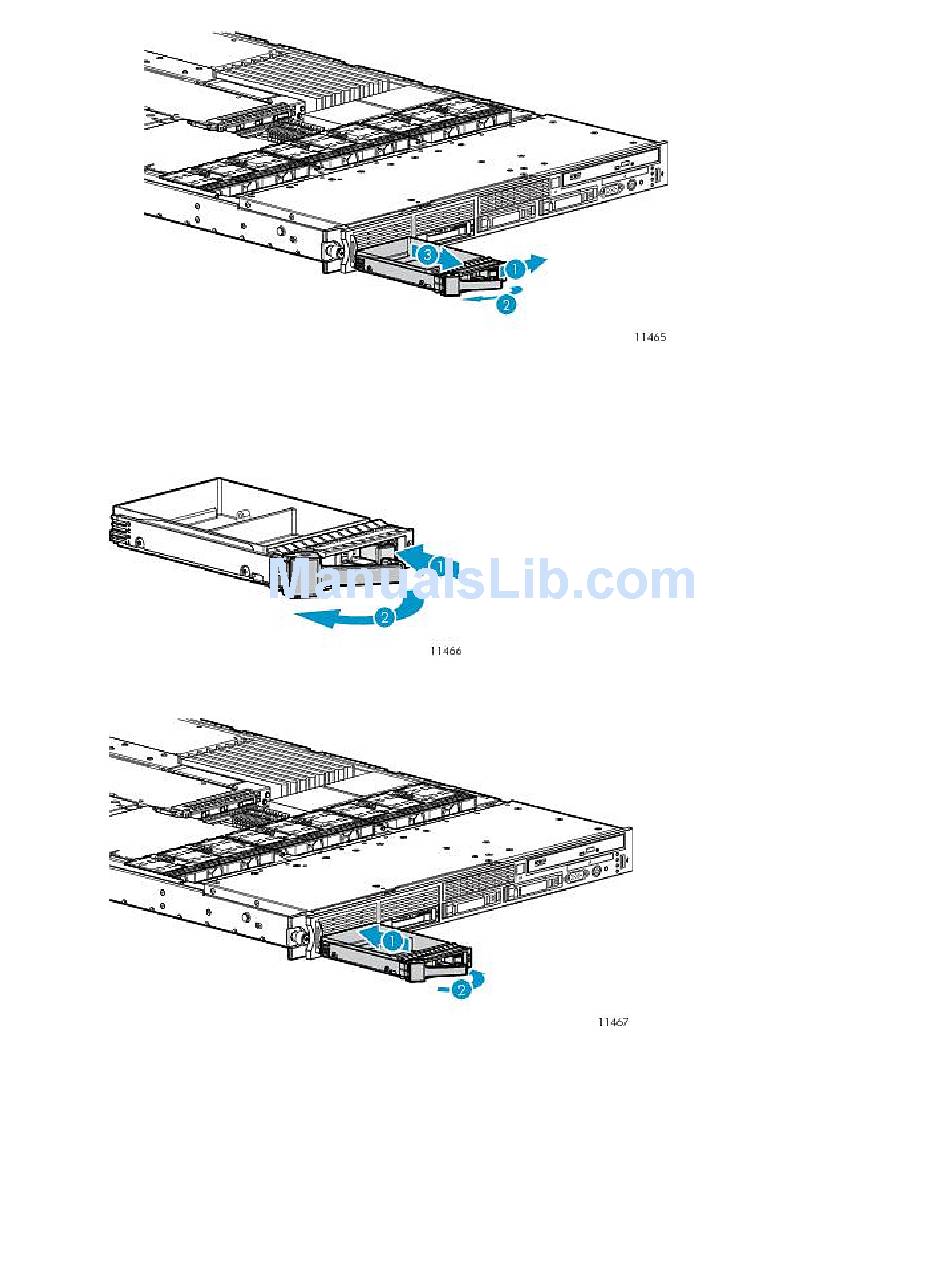

Figure 72 Removing a node hard drive
.
To replace the component, pull out the latch handle (2) out as far as it can go and slide the drive into
the bay until the latch mechanism engages the chassis. Then, firmly push in the latch handle to lock
the drive in the drive bay.
Figure 73 Preparing the node hard drive
.
Figure 74 Installing the node hard drive
.
