Racked Vls9000 System (32-Port Connectivity Kit Shown) - HP StorageWorks 9000 - Virtual Library System User Manual

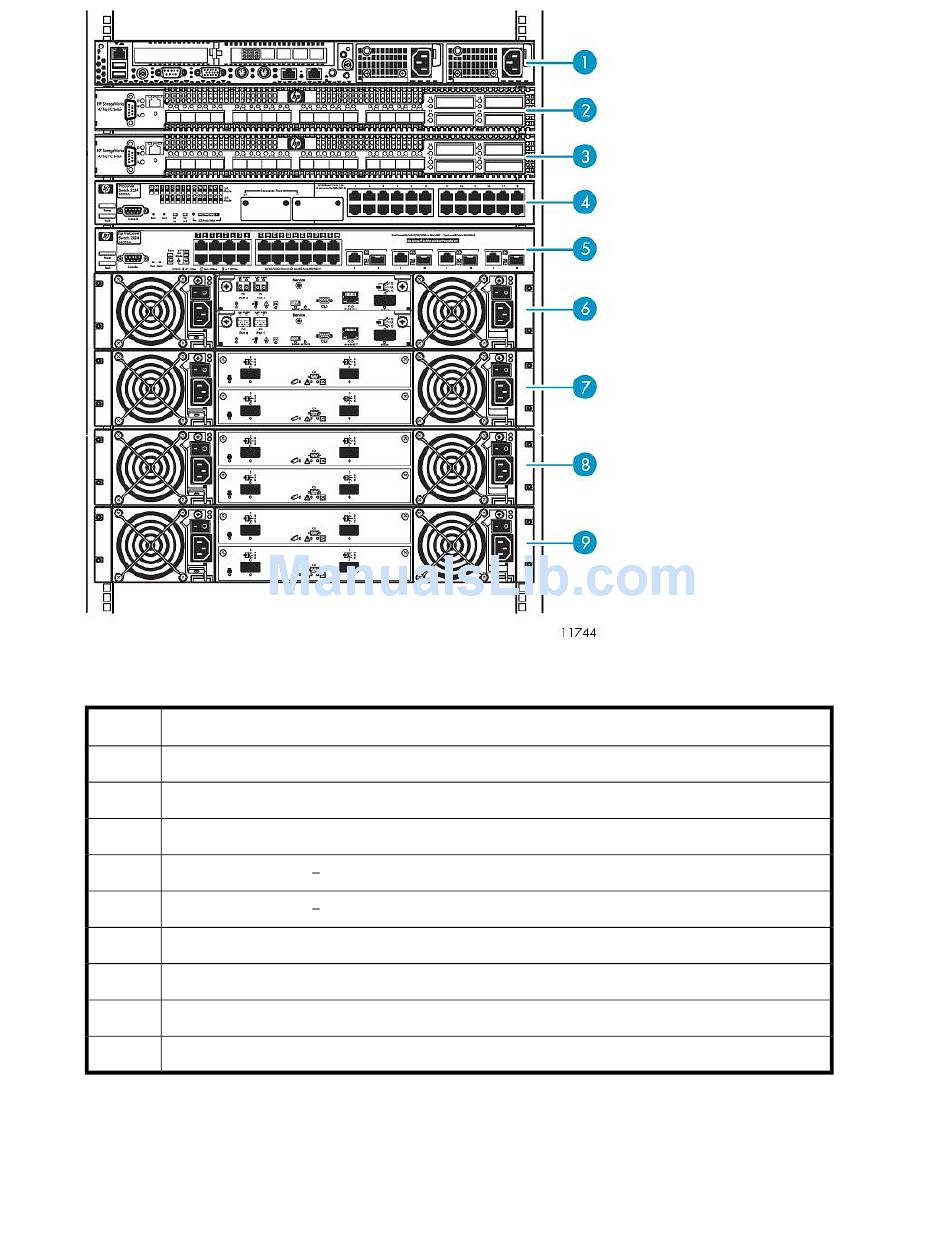

Figure 1 Racked VLS9000 system (32-port connectivity kit shown)
.
Item Description
1 Node 0, primary node
2 FC switch 0
3 FC switch 1
4 Ethernet Switch 2510 24 (100 Mb)
5 Ethernet Switch 2810 24G (1 Gb)
6 Base disk array enclosure
7 Expansion disk array enclosure
8 Expansion disk array enclosure
9 Expansion disk array enclosure
You can install either the VLS9000 20-port or 32-port connectivity kit with the VLS9000-series. (The
VLS9000 7.5 TB and 10 TB systems omit the connectivity kit.) The 20-port connectivity kit includes
two 10-port Fibre Channel switches and two Ethernet switches. The 32-port connectivity kit includes
