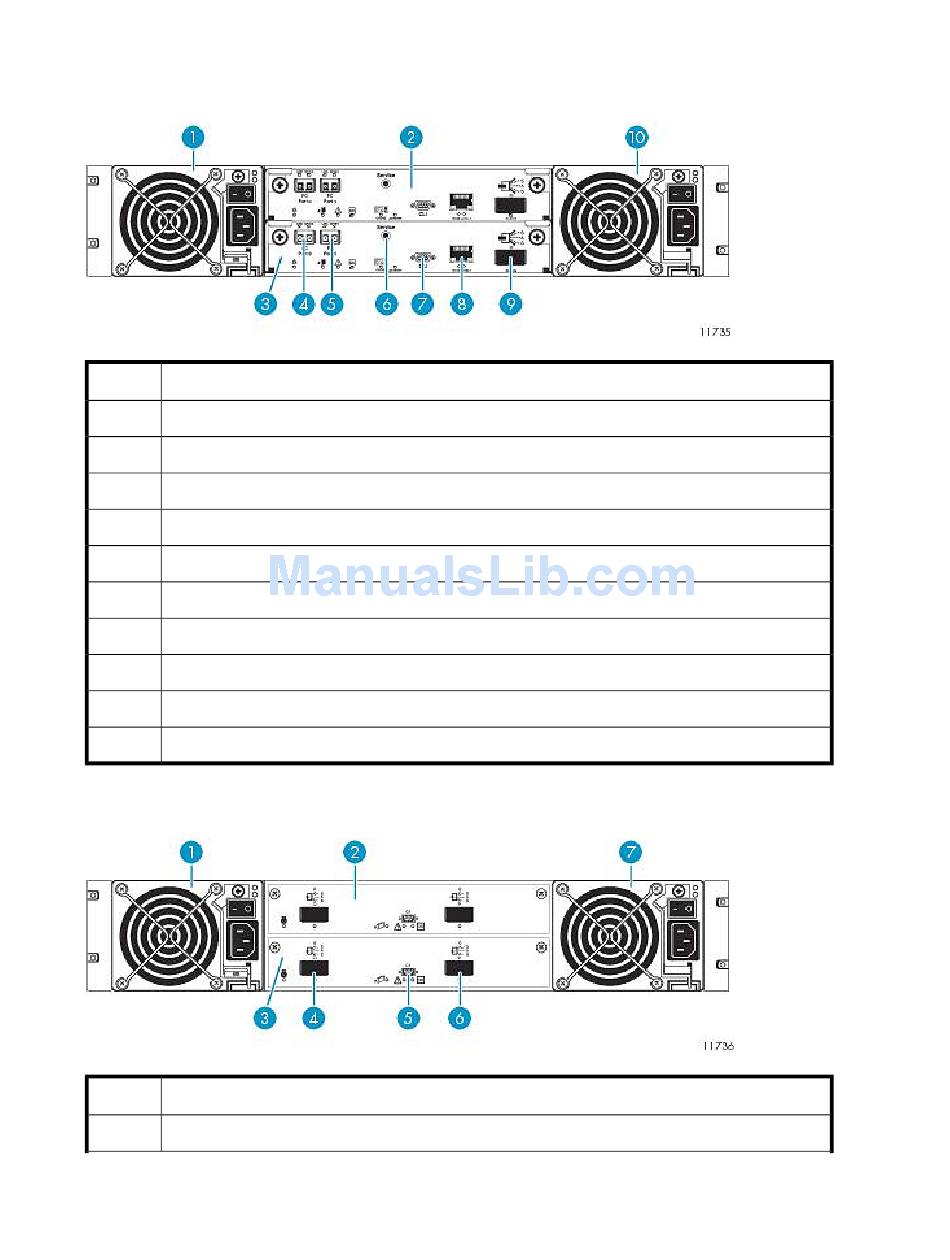

Rear Panel Components

Base Disk Array Enclosure

Item Description
1 Power module 0
2 RAID controller 0
3 RAID controller 1
4 Fibre Channel port 0
5 Fibre Channel port 1 (not used)
6 Service port (for service only)
7 CLI port (not used)
8 Ethernet port
9 SAS output port
10 Power module 1

Expansion Disk Array Enclosure

Item Description
1 Power module 0
248 Component Identification
