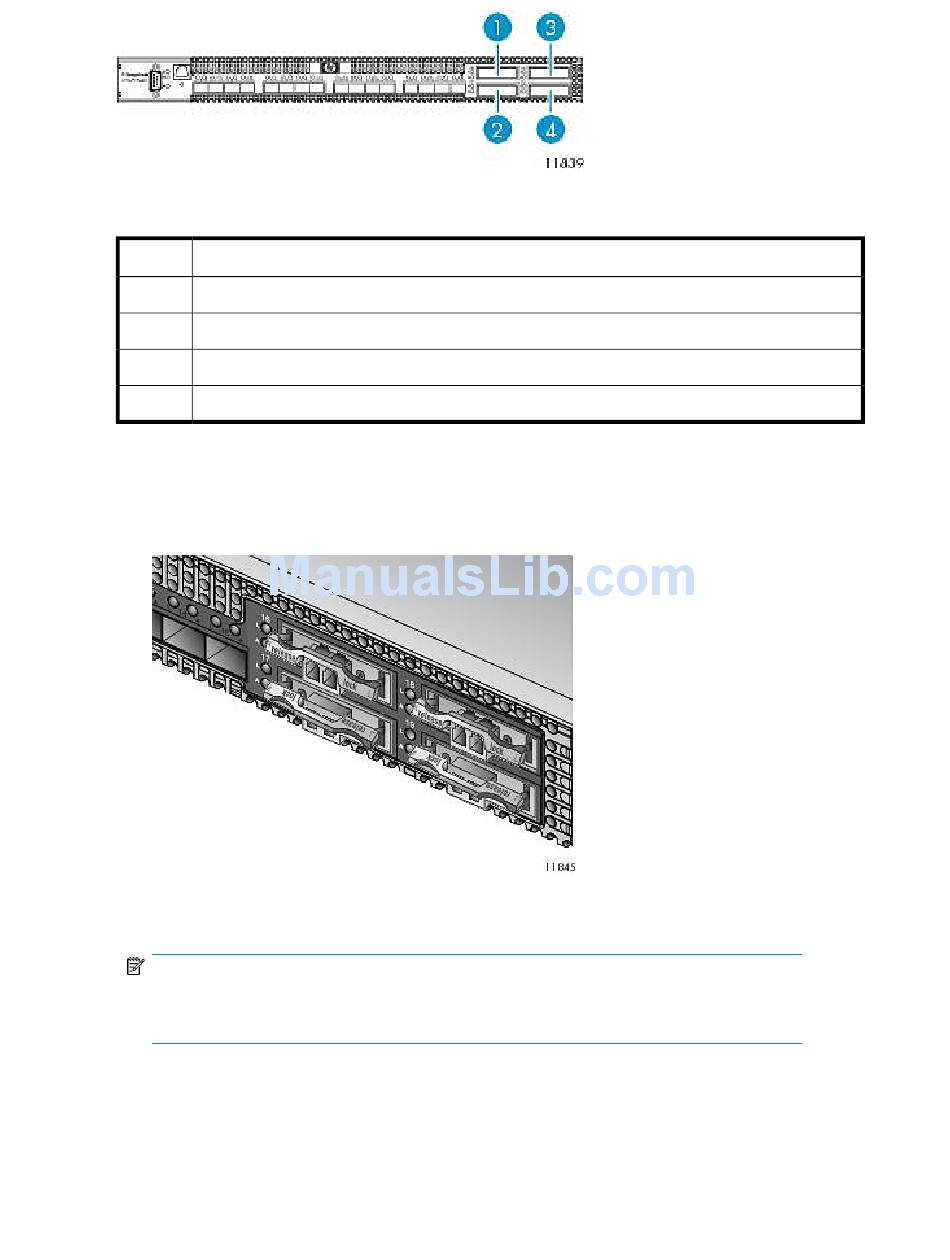

Figure 23 Fibre Channel Switch 4/16q 10Gb ports
.
Item Description
1 Fibre Channel port 16
2 Fibre Channel port 17
3 Fibre Channel port 18
4 Fibre Channel port 19
1. Locate four XPAKs supplied in the interswitch link kit contents.
2. Remove the port covers from ports 16 through 19 on Fibre Channel Switch 4/16q.
3. With the latch in the center position, slide the XPAK into the port until it clicks into place. See
Figure 24.
Figure 24 Installed XPAK transponders
.
NOTE:
Install XPAKs into ports 16 and 18 with the heat sink facing up. Install XPAKs into ports 17
and 19 with the heat sink facing down.
4. Move the latch to the locked position, as indicated on the latch.
5. Repeat steps 2 through 4 for each Fibre Channel Switch 4/16q with the remaining XPAKs.
