Item Description
Ethernet port activity
5
LED
Ethernet port link
6
status LED
7 Port logged-In LED
8 Port activity LED

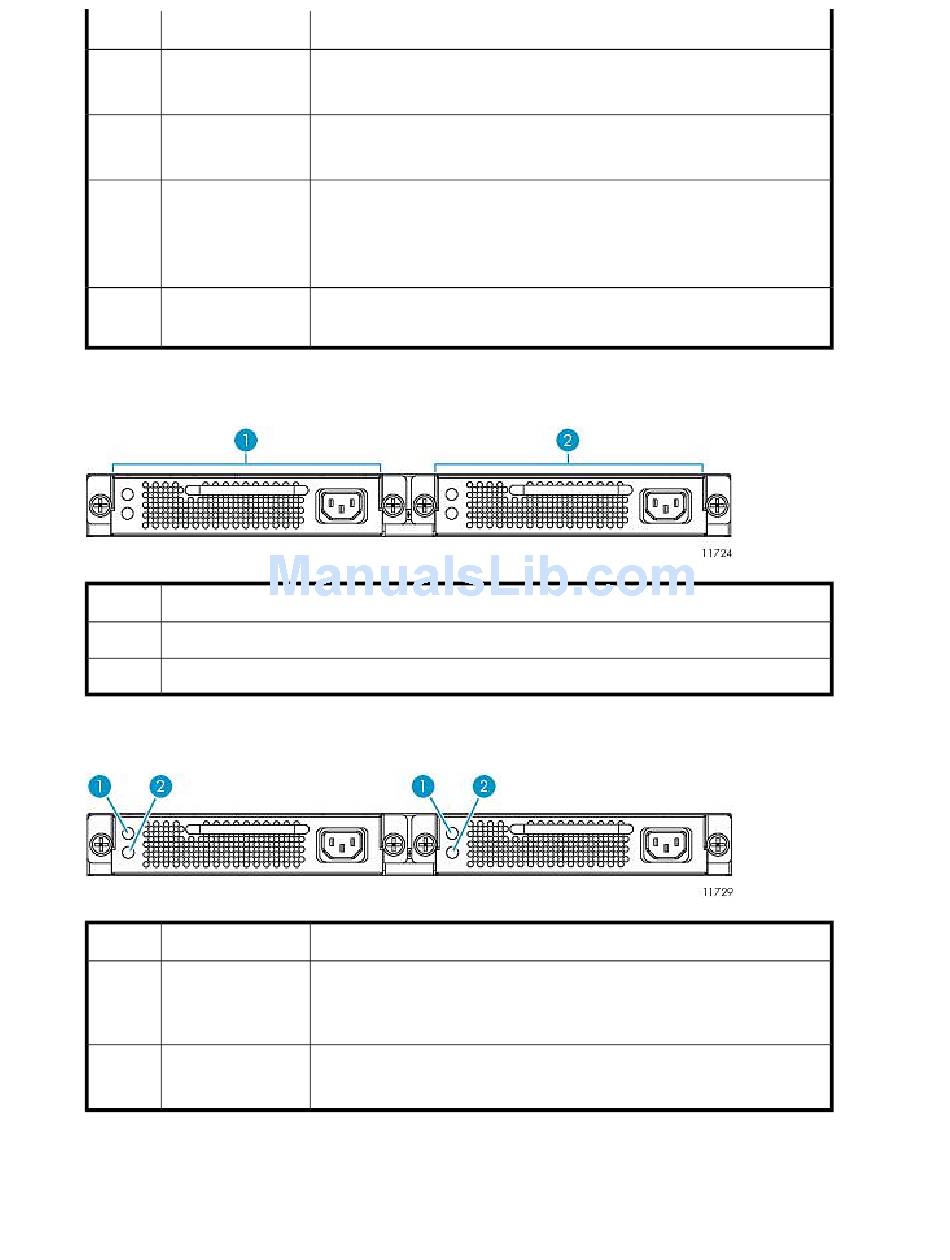

Rear Panel Components

Item Description
1 Power supply 0
2 Power supply 1

Rear Panel LEDs and Buttons

Item Description
Power supply status
1
LED
Power supply fault
2
LED
240 Component Identification
Status
Green = Data is being transmitted or received over the Ethernet connection.
Off = No data being transmitted or received.
Green = Ethernet connection has been established.
Off = No connection.
Green = A device is logged in to the port.
Flashing green (constant 1 Hz) = A device is logging in to the port.
Flashing green (constant 2 Hz) = The port is down, offline, or an error has
occurred.
Green = Data is passing through the port. Each frame that the port transmits
or receives causes LED to illuminate for 50 milliseconds.
Status
Green = Power supply is receiving AC voltage and producing the proper
DC voltages.
Off = Power supply is not receiving AC voltage.
Amber = Power supply fault exists and requires attention.
Off = Power supply is operating normally.
