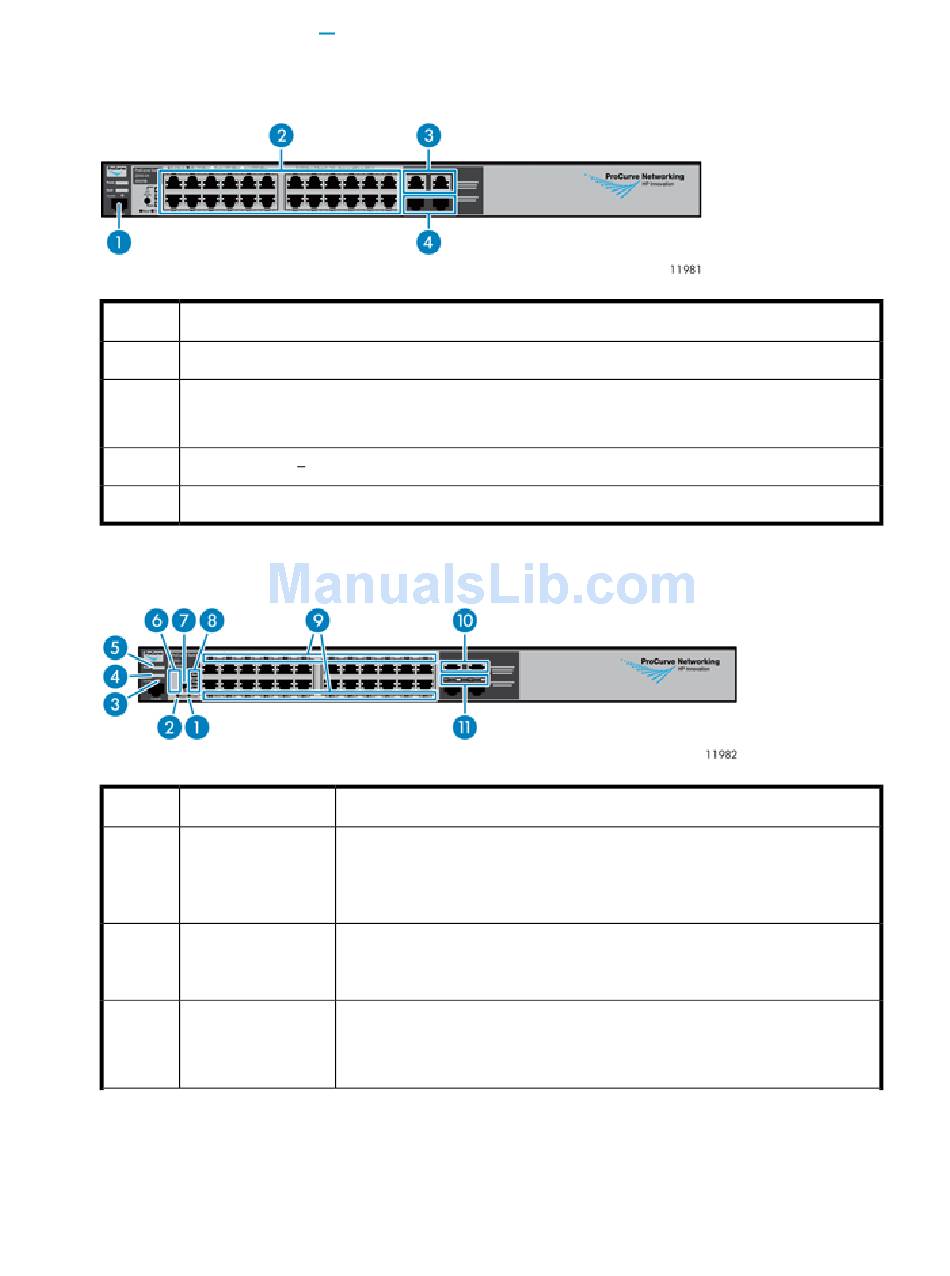

Ethernet Switch 2510 24 Components, LEDs, and Buttons

Front Panel Components

Item Description
1 Console port
10/100Base-TX RJ-45 Ethernet ports 1 through 24
2
(numbered from left to right, top to bottom)
3 10/100/1000 T dual-personality ports 25 and 26
4 mini—GBIC dual-personality ports 25 and 26

Front Panel LEDs and Buttons

Item Description
1 Clear button
2 Reset button
3 Locator LED
Status
When pressed with the Reset button in a specific pattern, any configuration
changes you may have made through the switch console, the web browser
interface, and SNMP management are removed, and the factory default
configuration is restored to the switch.
Press to reset the switch while it is powered on. This action clears any tem-
porary error conditions that may have occurred and executes the switch self
test. Also resets all network activity counters to zero.
Blinking blue = Locate function is active. Firmware controlled, can be set to
on or blinking.
Off = Locate function is disabled.
HP StorageWorks 241
