2. Connect one end of a SAS cable to RAID controller 1 of the base disk array enclosure. Connect
the other end to SAS input port of expansion controller 1 of expansion disk array enclosure 0.
3. Connect one end of a SAS cable to SAS output port of expansion controller 0 of the expansion
disk array enclosure 0. Connect the other end to SAS input port of expansion controller 0 of
expansion disk array enclosure 1.
4. Connect one end of a SAS cable to SAS output port of expansion controller 1 of the expansion
disk array enclosure 0. Connect the other end to SAS input port of expansion controller 1 of
expansion disk array enclosure 1.
5. Connect one end of a SAS cable to SAS output port of expansion controller 0 of the expansion
disk array enclosure 1. Connect the other end to SAS input port of expansion controller 0 of
expansion disk array enclosure 2.
6. Connect one end of a SAS cable to SAS output port of expansion controller 1 of the expansion
disk array enclosure 1. Connect the other end to SAS input port of expansion controller 1 of
expansion disk array enclosure 2.
7. Connect black power cables to power module on the left.
8. Route the black power cables through the left side of the rack and connect them to a PDM.
9. Connect gray power cables to the power modules on the right.
10. Route the gray power cables through the right side of the rack and connect them to a PDM.
11. Repeat steps 1 — 10 for each array.
12. Secure the SAS cables of each array together with a Velcro tie.

Cabling Ethernet Switch 2510 24

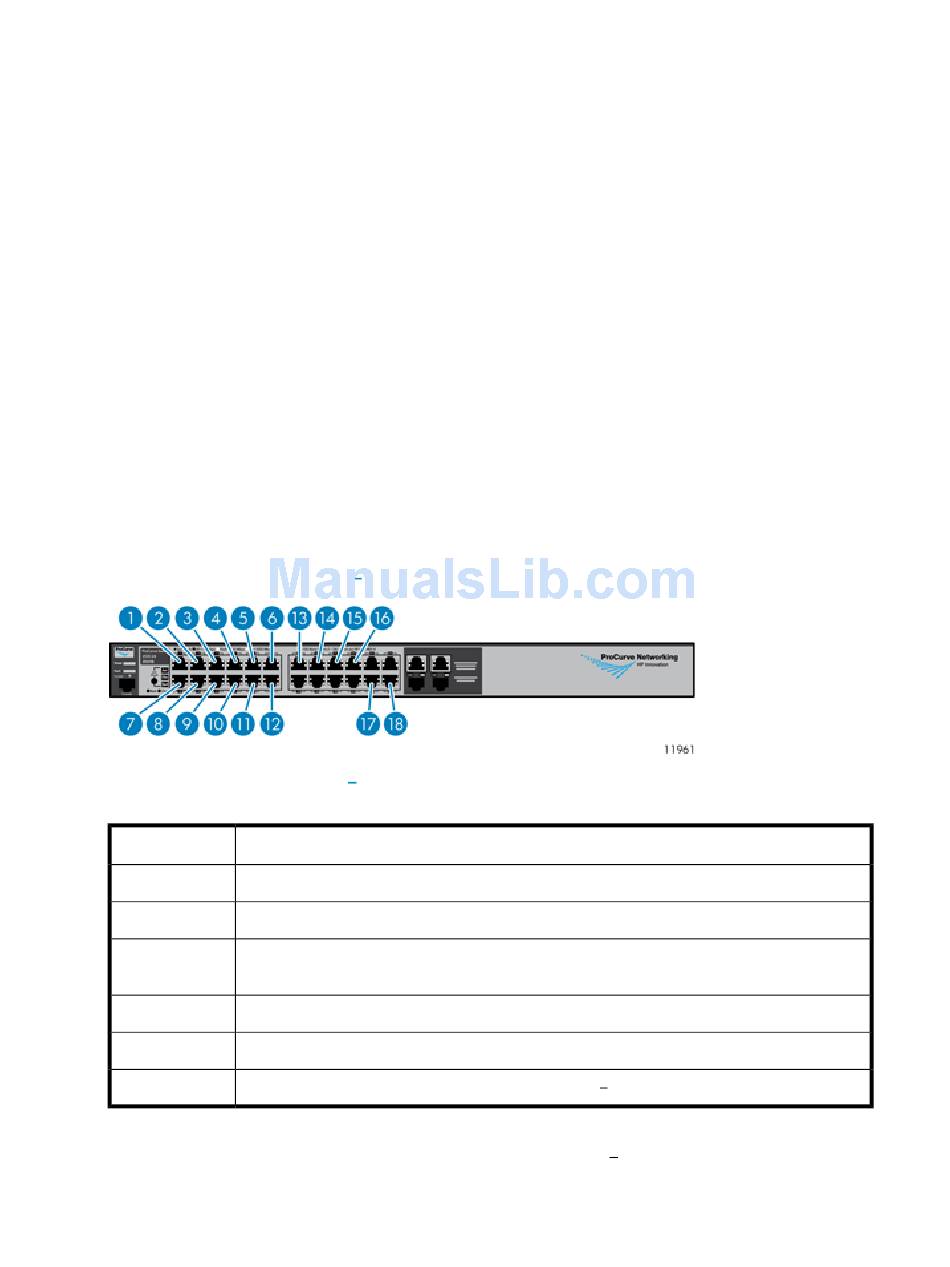

Figure 18 Ethernet Switch 2510 24 port cabling
.
Item
1
2—8
9—15
16
17
18
1. Connect one end of an Ethernet cable to the Ethernet port of Fibre Channel switch #1. Connect
the other end of the Ethernet cable to port 23 of Switch 2510 24.
Description
Ethernet cable from USB adapter on primary node
Ethernet cable from USB adapter on secondary nodes (if present)
Ethernet cables from RAID controllers 1 of base disk array enclosures of up to 8 arrays (if
present)
Ethernet cable from RAID controller 1 of base disk array enclosure of 1st array (array 0)
Ethernet cable from Ethernet port of Fibre Channel switch #1
Ethernet cable from port 24 of Ethernet Switch 2810 24G
HP StorageWorks 61
