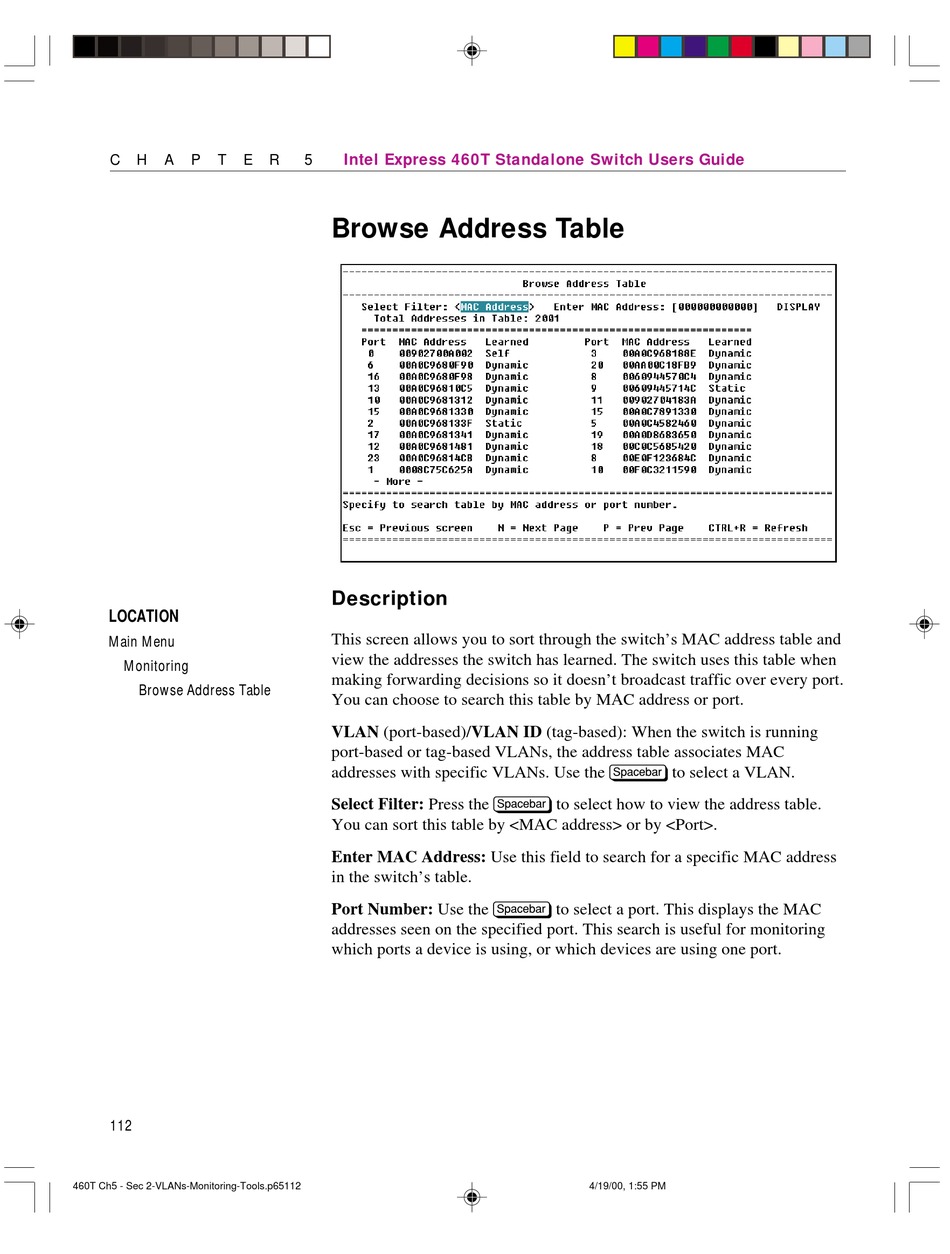

Browse Address Table
Description
This screen allows you to sort through the switch's MAC address table and
view the addresses the switch has learned. The switch uses this table when
making forwarding decisions so it doesn't broadcast traffic over every port.
You can choose to search this table by MAC address or port.
VLAN (port-based)/VLAN ID (tag-based): When the switch is running
port-based or tag-based VLANs, the address table associates MAC
addresses with specific VLANs. Use the z to select a VLAN.
Select Filter: Press the z to select how to view the address table.
You can sort this table by <MAC address> or by <Port>.
Enter MAC Address: Use this field to search for a specific MAC address
in the switch's table.
Port Number: Use the z to select a port. This displays the MAC
addresses seen on the specified port. This search is useful for monitoring
which ports a device is using, or which devices are using one port.
