R 3 Intel Device View 2.1

Using the Device Tree

When you start Intel Device View, the Device Discovery service begins
searching for supported Intel network devices on your network. As it
discovers devices, the Device Discovery service adds an icon for each
device to the Device Tree on the left side of the screen.

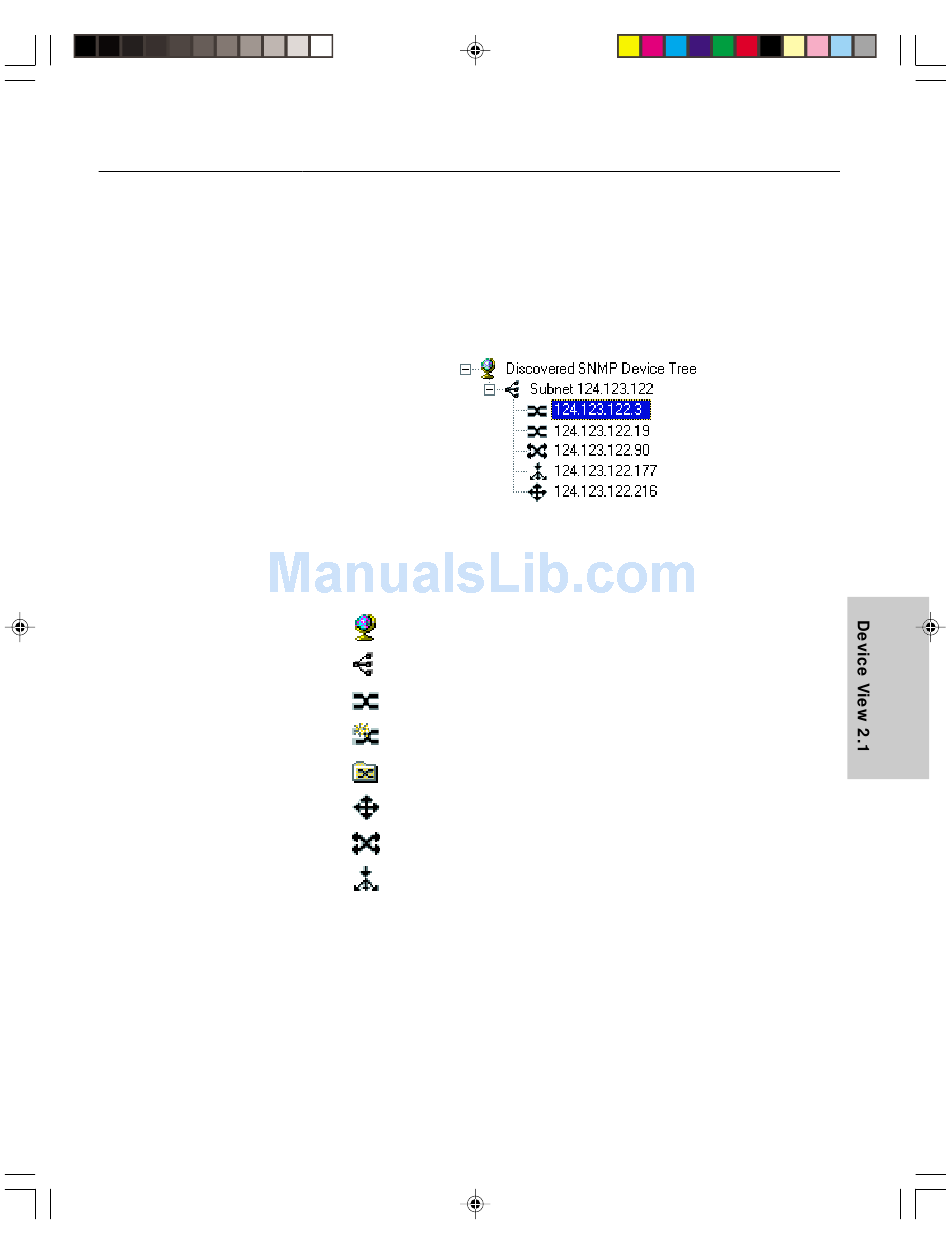

Different states of the Express 460T switch are represented by unique icons
in the Device Tree.
Device Tree icons
Device Tree root
Subnet
Intel Express Switch (if non-responding the icon is red)
Unconfigured Intel Express Switch
Group of Intel Express Switches
Intel Express Router
Intel Express Switch (Layer 3 capable)
Intel Express Stackable Hub
The Device Tree works much like Windows Explorer. To expand the root or
a subnet, click the (+) next to the icon. To collapse the view, click the (-)
next to the icon. Double-click a device icon to view the device image.
