C
H
A
P
T
E
LOCATION
Main Menu
Configure VLAN
Add a MAC-based VLAN
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Using Local Management

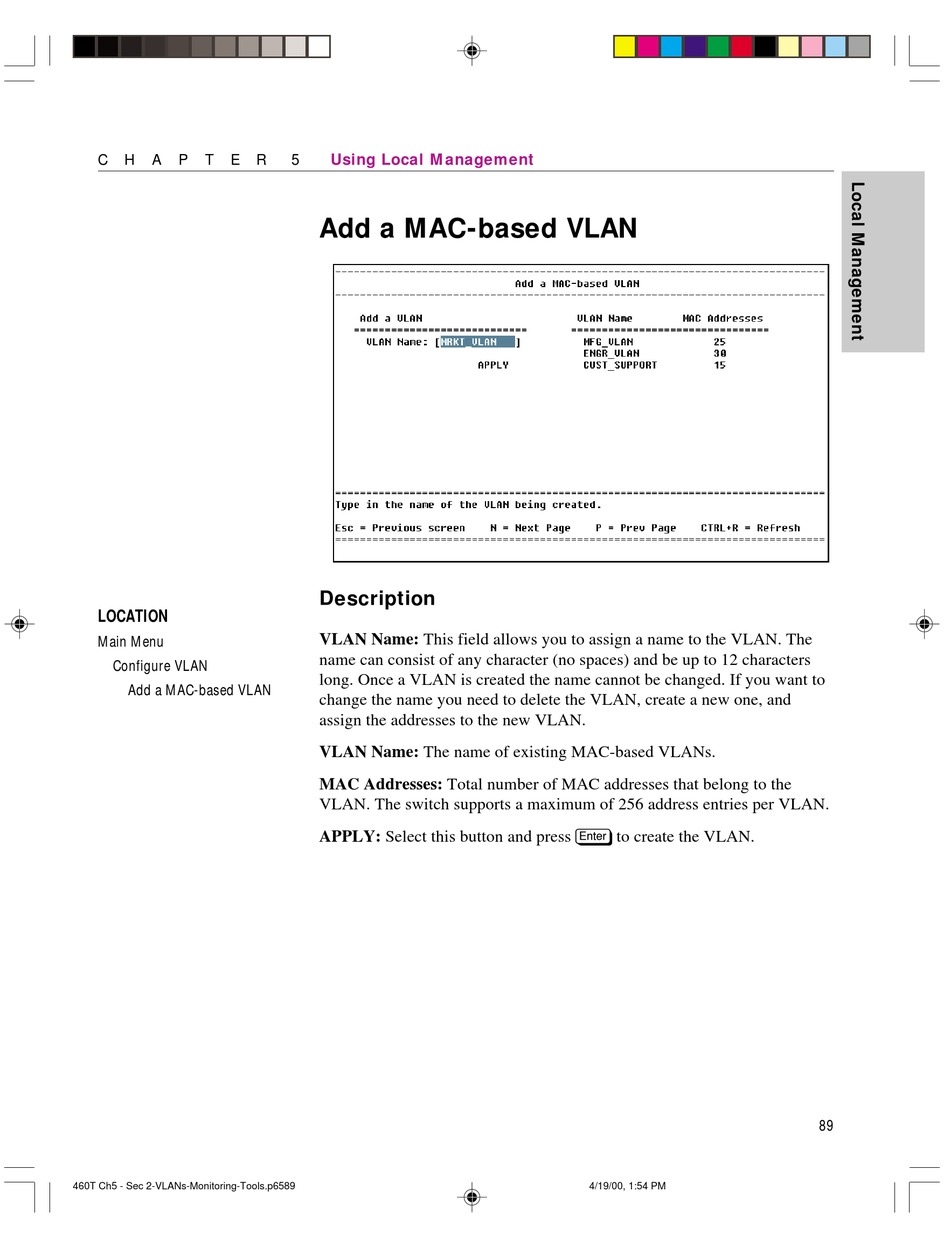

Add a MAC-based VLAN
Description
VLAN Name: This field allows you to assign a name to the VLAN. The
name can consist of any character (no spaces) and be up to 12 characters
long. Once a VLAN is created the name cannot be changed. If you want to
change the name you need to delete the VLAN, create a new one, and
assign the addresses to the new VLAN.
VLAN Name: The name of existing MAC-based VLANs.
MAC Addresses: Total number of MAC addresses that belong to the
VLAN. The switch supports a maximum of 256 address entries per VLAN.
APPLY: Select this button and press e to create the VLAN.
89
