C
H
A
P
T
E
LOCATION
Main Menu
Configure VLAN
Edit/Delete a Mac-based VLAN
Edit a MAC-based VLAN
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Using Local Management

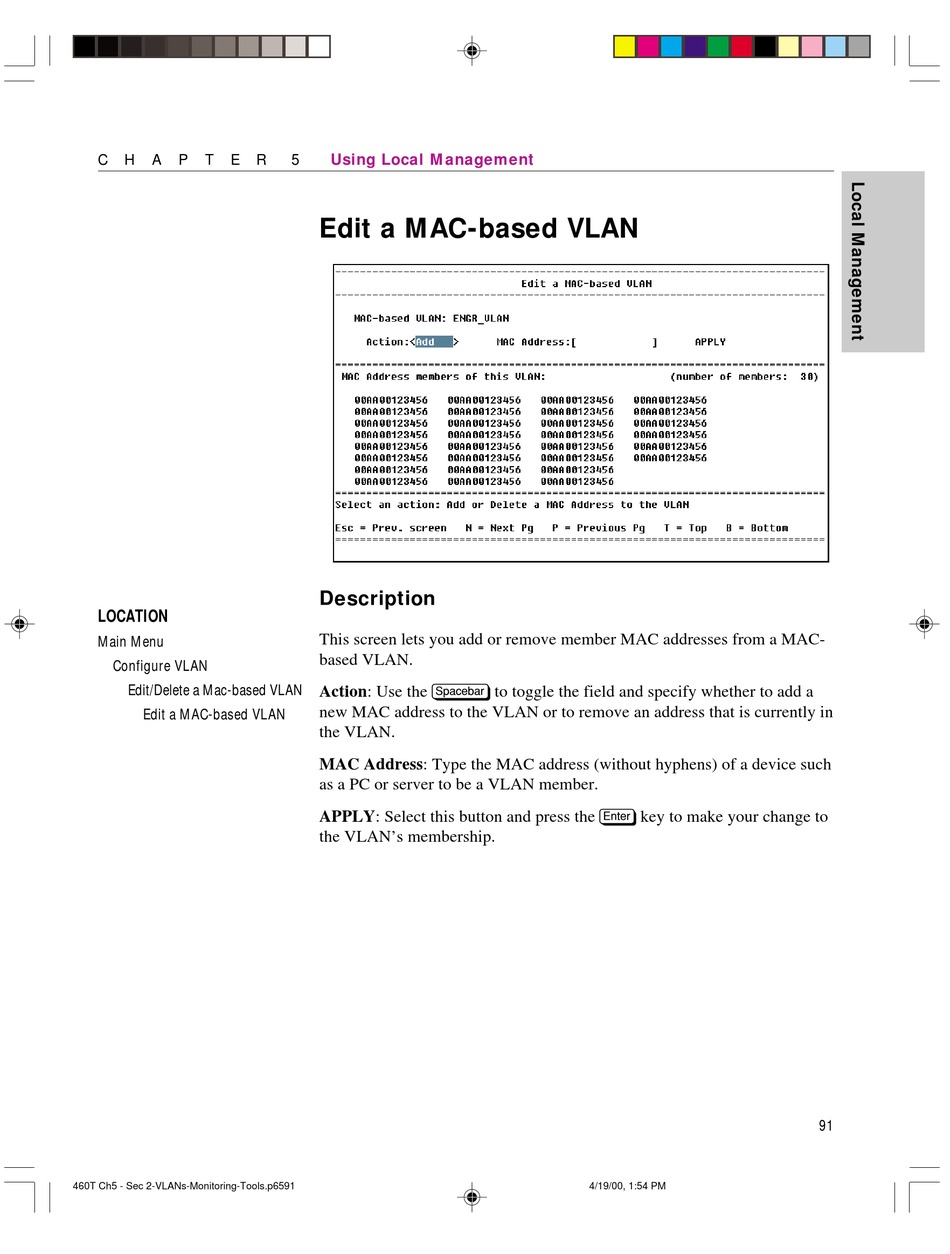

Edit a MAC-based VLAN
Description
This screen lets you add or remove member MAC addresses from a MAC-
based VLAN.
Action: Use the z to toggle the field and specify whether to add a
new MAC address to the VLAN or to remove an address that is currently in
the VLAN.
MAC Address: Type the MAC address (without hyphens) of a device such
as a PC or server to be a VLAN member.
APPLY: Select this button and press the e key to make your change to
the VLAN's membership.
91
4/19/00, 1:54 PM
91
