Update Firmware And Config Files - Intel ES460MSX - Ethernet 1000Base SX Switch Module User Manual

C H A P T E
LOCATION
Main Menu
Configure Management
Update Firmware and . . .
NOTE
Be sure to check Intel's Customer
Support Web site for firmware
updates to the Express 460T
Standalone Switch.
460T Ch5 - Sec 1-Nav & Config.p65
R 5 Using Local Management

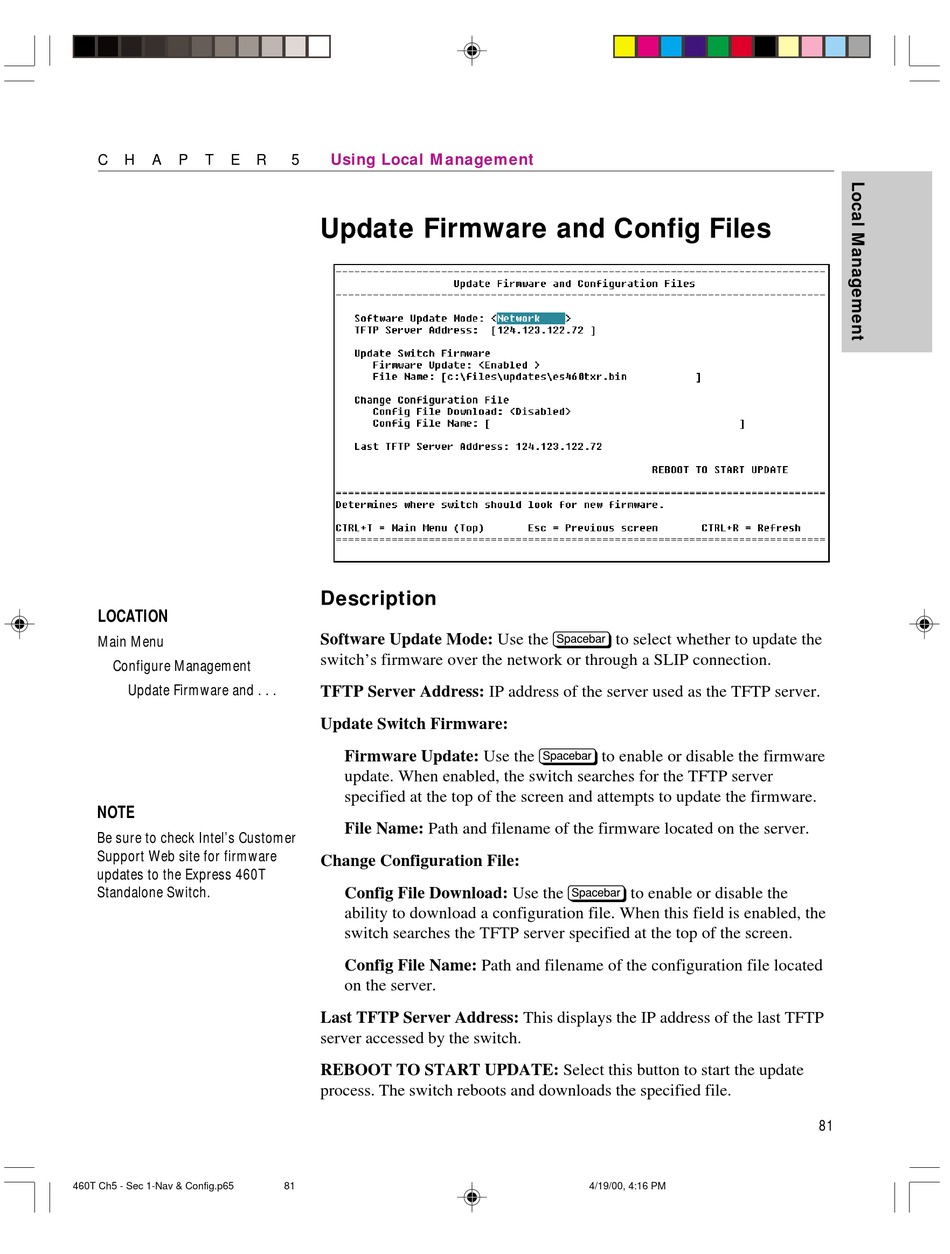

Update Firmware and Config Files

Description
Software Update Mode: Use the z to select whether to update the
switch's firmware over the network or through a SLIP connection.
TFTP Server Address: IP address of the server used as the TFTP server.
Update Switch Firmware:
Firmware Update: Use the z to enable or disable the firmware
update. When enabled, the switch searches for the TFTP server
specified at the top of the screen and attempts to update the firmware.
File Name: Path and filename of the firmware located on the server.
Change Configuration File:
Config File Download: Use the z to enable or disable the
ability to download a configuration file. When this field is enabled, the
switch searches the TFTP server specified at the top of the screen.
Config File Name: Path and filename of the configuration file located
on the server.
Last TFTP Server Address: This displays the IP address of the last TFTP
server accessed by the switch.
REBOOT TO START UPDATE: Select this button to start the update
process. The switch reboots and downloads the specified file.
