C H A P T E
LOCATION
To return to the Main Menu at any
time, press c T.
56
460T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel Express 460T Standalone Switch Users Guide

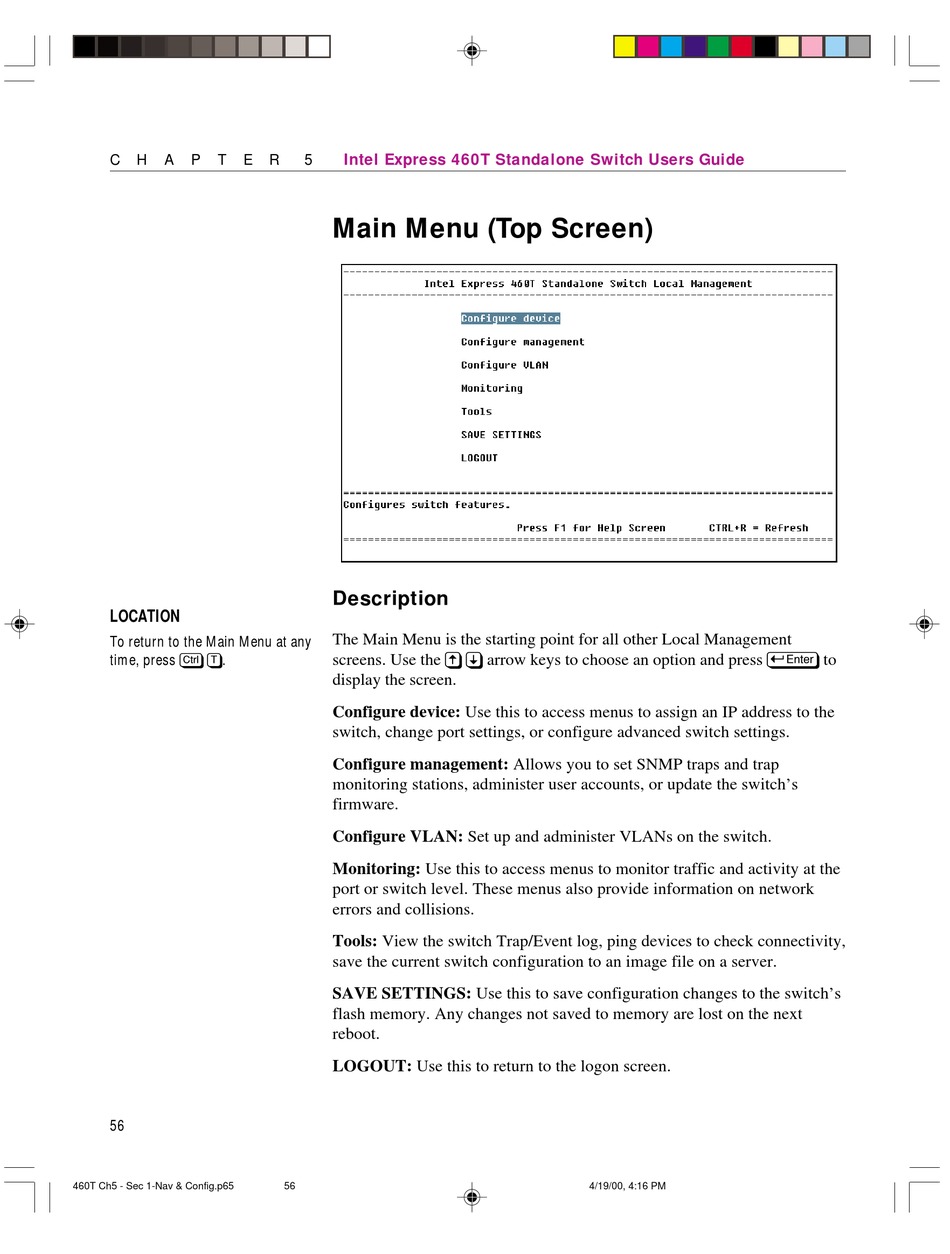

Main Menu (Top Screen)

Description
The Main Menu is the starting point for all other Local Management
screens. Use the W Z arrow keys to choose an option and press E to
display the screen.
Configure device: Use this to access menus to assign an IP address to the
switch, change port settings, or configure advanced switch settings.
Configure management: Allows you to set SNMP traps and trap
monitoring stations, administer user accounts, or update the switch's
firmware.
Configure VLAN: Set up and administer VLANs on the switch.
Monitoring: Use this to access menus to monitor traffic and activity at the
port or switch level. These menus also provide information on network
errors and collisions.
Tools: View the switch Trap/Event log, ping devices to check connectivity,
save the current switch configuration to an image file on a server.
SAVE SETTINGS: Use this to save configuration changes to the switch's
flash memory. Any changes not saved to memory are lost on the next
reboot.
LOGOUT: Use this to return to the logon screen.
