R 1 Express 460T Switch Features and Setup

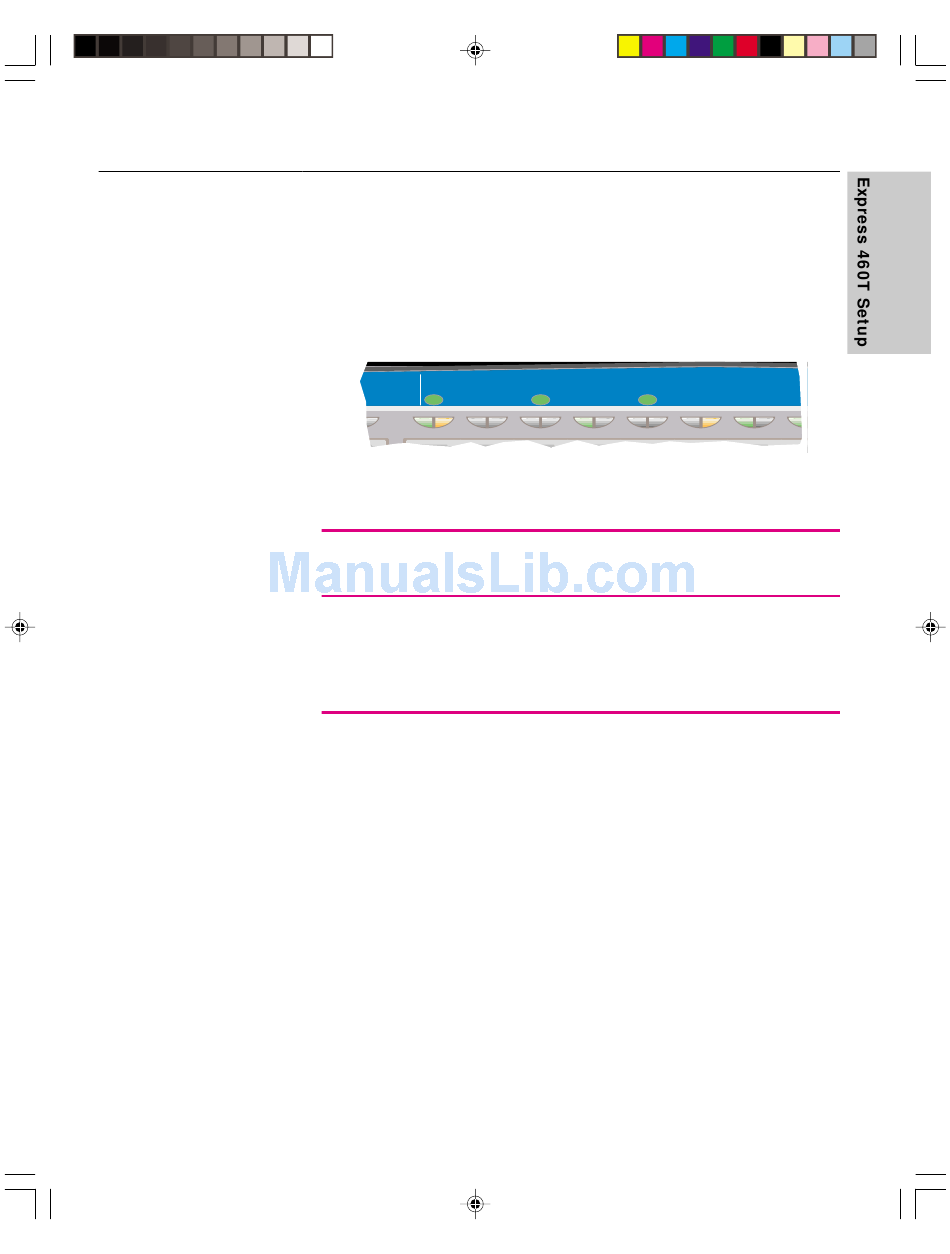

Module A LEDs

The LEDs are located on the front of the switch over ports 9-16. These
LEDs provide information about the 100FX, 1000SX, or 1000LX module
such as the module's status, link, port activity, and collisions.
Module A
8 9
LED
Status
Link\Act\Coll
When you are using the 1000SX, 1000LX, or 1000T module, only the port 1
LED will blink and show activity since the module has only one port.

Configuring Modules

Normally, you will not need to make any changes to the optional modules
because they are designed to configure themselves automatically for the
attached device. However, you might need to configure the modules in order
to communicate with older devices. You can use the Local Management or
Web Device Manager to configure the 100FX, 1000SX, 1000LX, or 1000T
modules.
7
Port 1
Status Link\Act\Coll
10 11 12
Status Meaning
On (green) Module is present and functioning.
Off No module present.
Solid green Device linked.
Blinking green Receiving activity on that port.
Blinking orange A collision was detected on this segment.
Off No link detected.
4/19/00, 11:01 AM
Port 2
Link\Act\Coll
13 14 15 1
