Web Device Manager
MAC-based VLAN
You configure a MAC-based VLAN by creating the VLAN and then adding
the MAC addresses of member devices.
To create a MAC-based VLAN
1 Click the Configure VLAN menu and then click MAC-based VLAN.
2 Click Add VLAN.
3 In the VLAN Name box, type a name for the VLAN and click Submit.

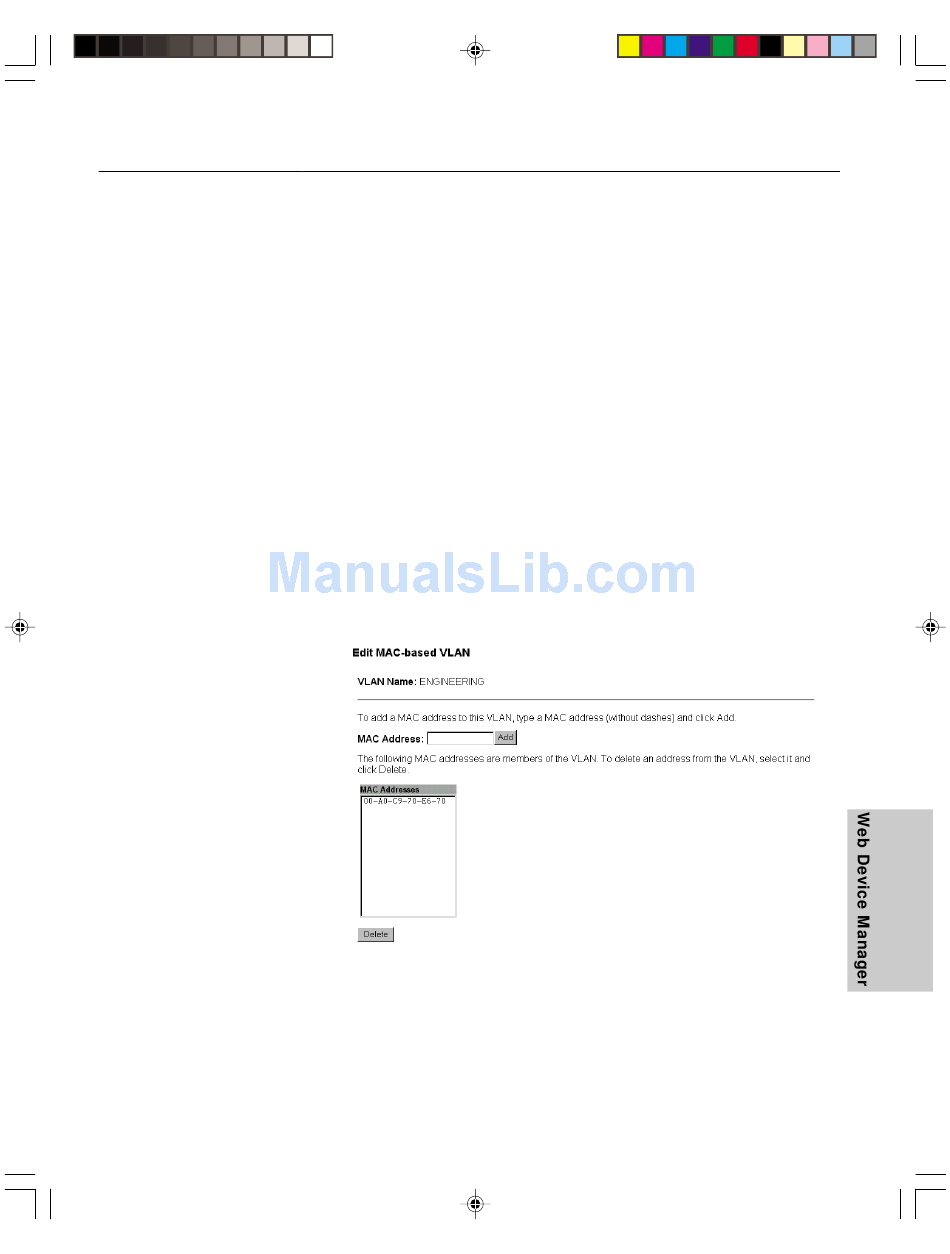

To add or delete addresses from a MAC-based VLAN
1 From the list of MAC-based VLANs, click a VLAN and click Edit
MAC Addresses.
2 In the MAC Address field, type a MAC address (without dashes) and
click Add. All MAC addresses in the VLAN are listed in the MAC
Addresses box to the left.
To delete an address from the member list, click the address and click
Delete.
3 After you have finished adding addresses to the VLAN, click Submit.
