R 1 Express 460T Switch Features and Setup

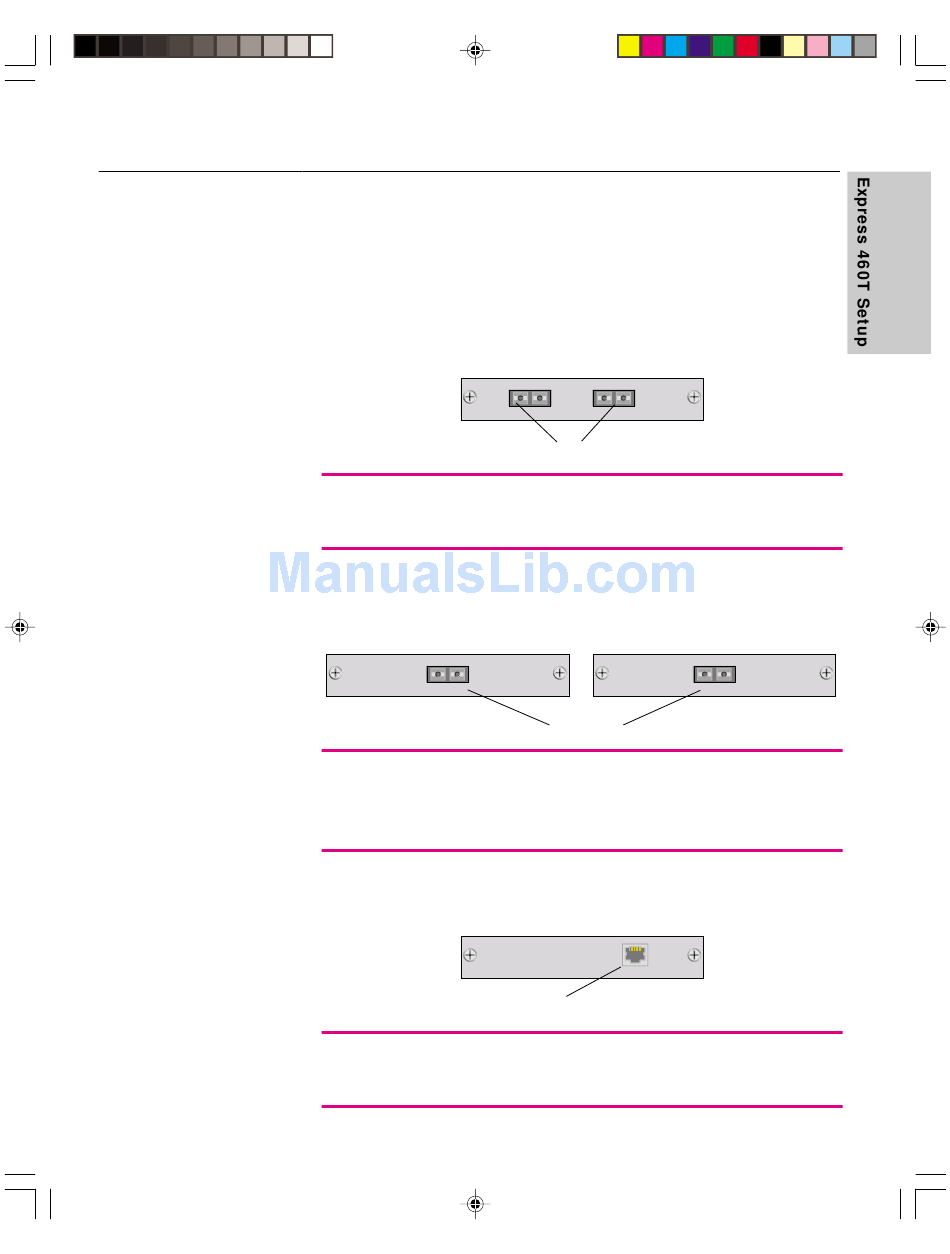

Module Features

Both the 16- and 24-port versions of the Express 460T Standalone Switches
can accept a module to provide additional functionality.
100Base-FX Fiber Module (Product Code ES460MFX)
• Connects to 100Base-FX devices (such as a switch or server) at full- or half-duplex.
• Extends network diameter up to 400m (half-duplex) or 2000m (full-duplex).
1000Base-SX Gigabit Module (Product Code ES460MSX)
1000Base-LX Gigabit Module (Product Code ES460MLX)
TX
• Connects to 1000Base-SX or 1000Base-LX devices at full-duplex.
• SX module extends network diameter 260m to 550m (depending on type of fiber).
• LX module extends network diameter 550m to 5000m (depending on type of fiber).
1000Base-T Gigabit Module (Product Code ES460MT)
• Connects to devices at 100Mbps at full- or half-duplex or 1000Mbps at full-duplex.
• Extends network diameter up to 100m.
3
Port 1 Port 2
TX RX TX RX
Fiber Ports
1000SX Module for
Port 1
®
Intel Express
460T Switch
RX
Fiber Port
1000T Module for
®
Intel Express
460T Switch
Ethernet Port
4/19/00, 11:00 AM
100FX Module for
®
Intel Express
460T Switch
1000LX Module for
Port 1
®
Intel Express
460T Switch
TX RX
Port 1
