LOCATION

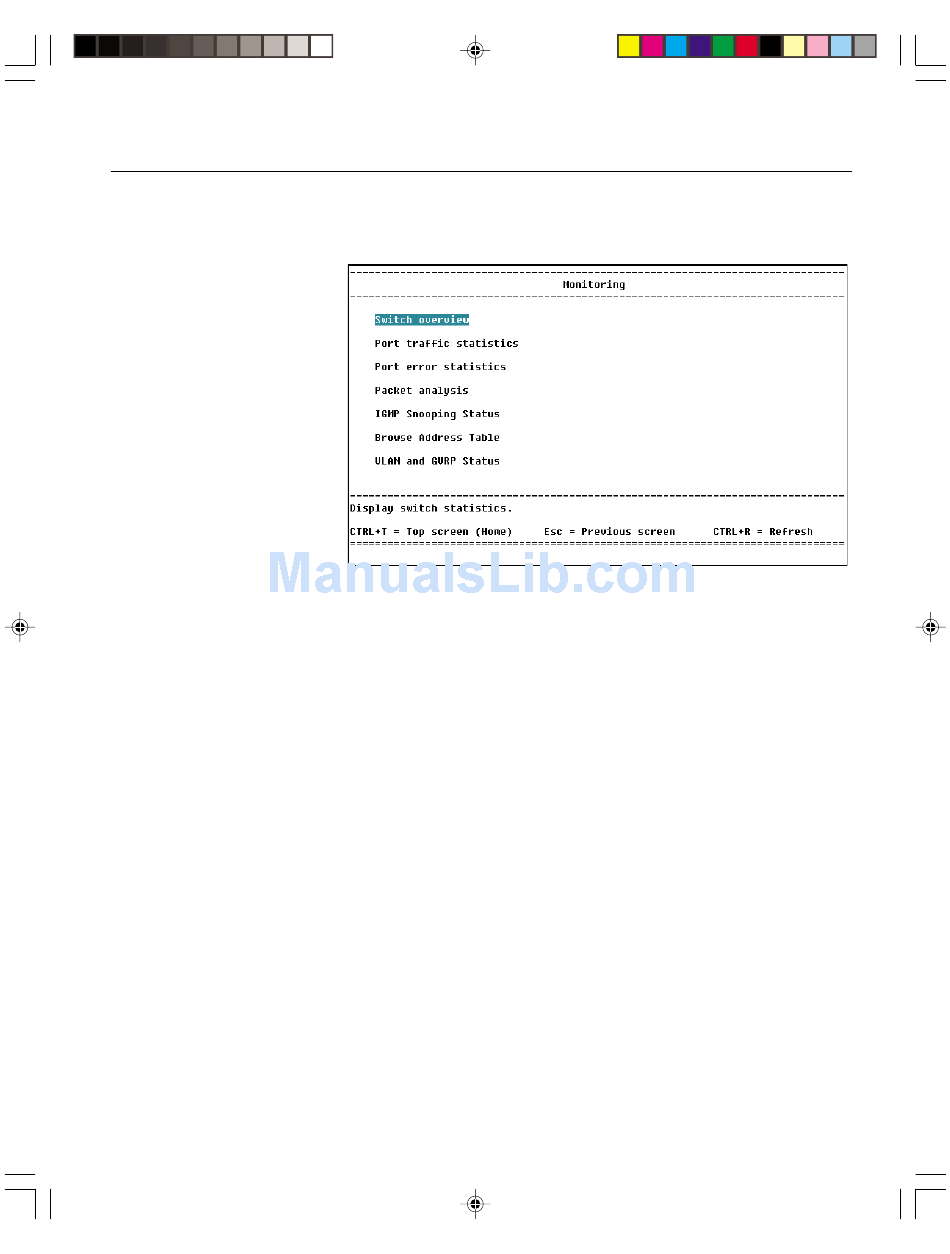

Main Menu
Monitoring
104
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Intel Express 460T Standalone Switch Users Guide
Monitor (Network Statistics)
Description
Switch overview: Displays an overview of all ports on the switch.
Port traffic statistics: Displays port traffic statistics and utilization.
Port error statistics: Displays port error statistics.
Packet analysis: Displays traffic per port by packet size and type.
IGMP Snooping Status: Displays active IP multicast groups detected by
the switch.
Browse the address table: Displays the entries in the switch's address
table by port or MAC address.
VLAN/GVRP Status: Displays status for static and dynamic tag-based
(IEEE 802.1Q) VLANs. This option is available only when the switch is
running 802.1Q VLANs.
104
4/19/00, 1:54 PM
