IGMP Snooping Status

460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Using Local Management
IGMP Snooping Status
Description

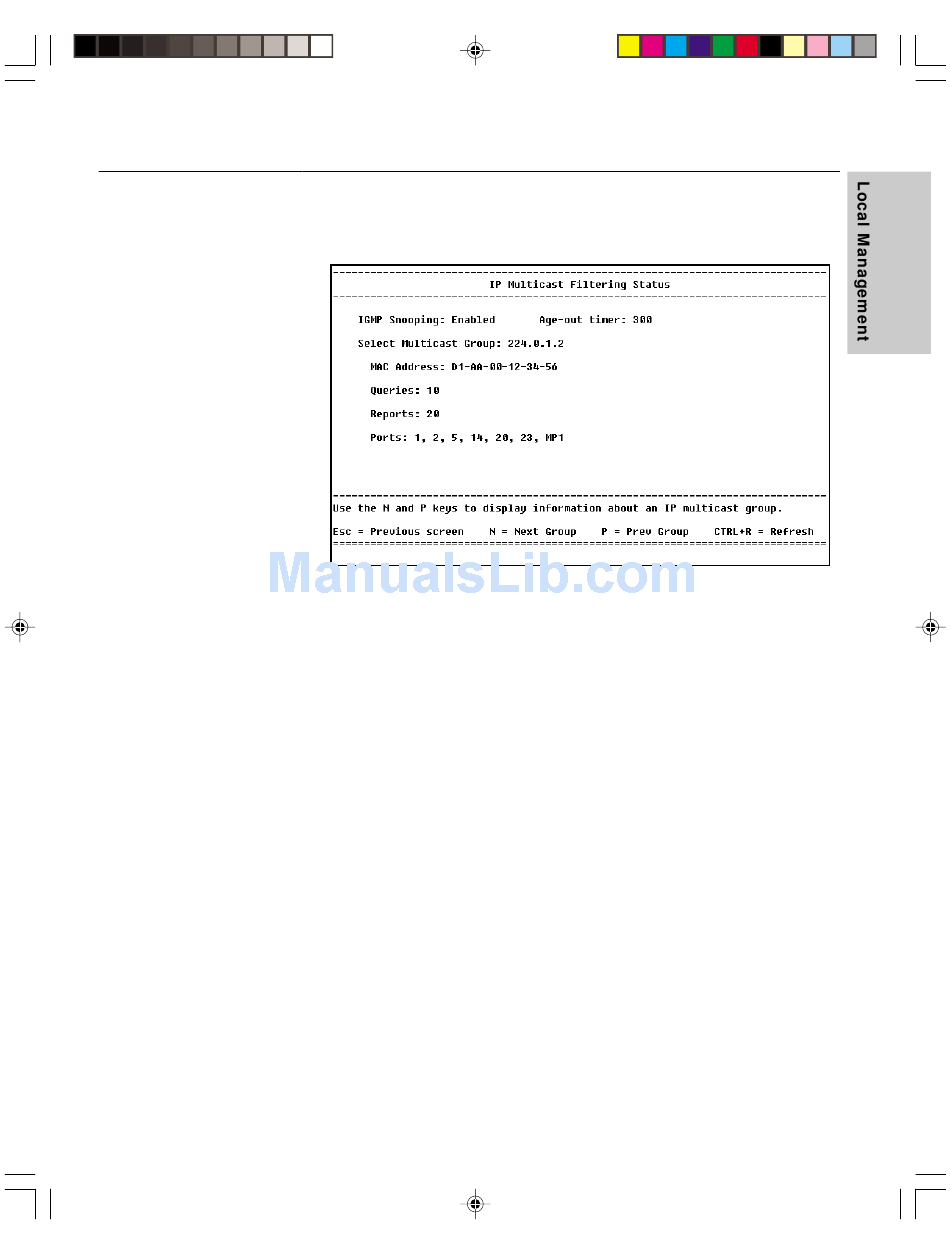

This screen displays the active multicast groups detected by the switch.
The switch uses these groups for filtering purposes when you enable IGMP
snooping.
VLAN: Displays the name of the VLAN with IGMP snooping enabled.
This field only appears when port-based or tag-based VLANs are active on
the switch.
Age-out timer: Displays the time the switch waits between IGMP queries.
Multicast group: The IP address of the multicast group.
MAC address: The MAC address of the multicast group.
Queries: The number of IGMP requests sent from the IGMP multicast
server or router to individual network hosts.
Reports: The number of notifications sent from each host to the server,
signifying that the host is still (or wants to be) part of the multicast group.
Ports: The ports on the switch that have devices belonging to the selected
multicast group.
Use the N (next group) and P (previous group) keys to display the status of
different IP multicast groups on the switch.
