C H A P T E
LOCATION
Main Menu
Configure VLAN
Create an 802.1Q VLAN
NOTE
A '+' next to the Member toggle
indicates that port is a member of
more than one VLAN.
94
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel Express 460T Standalone Switch Users Guide

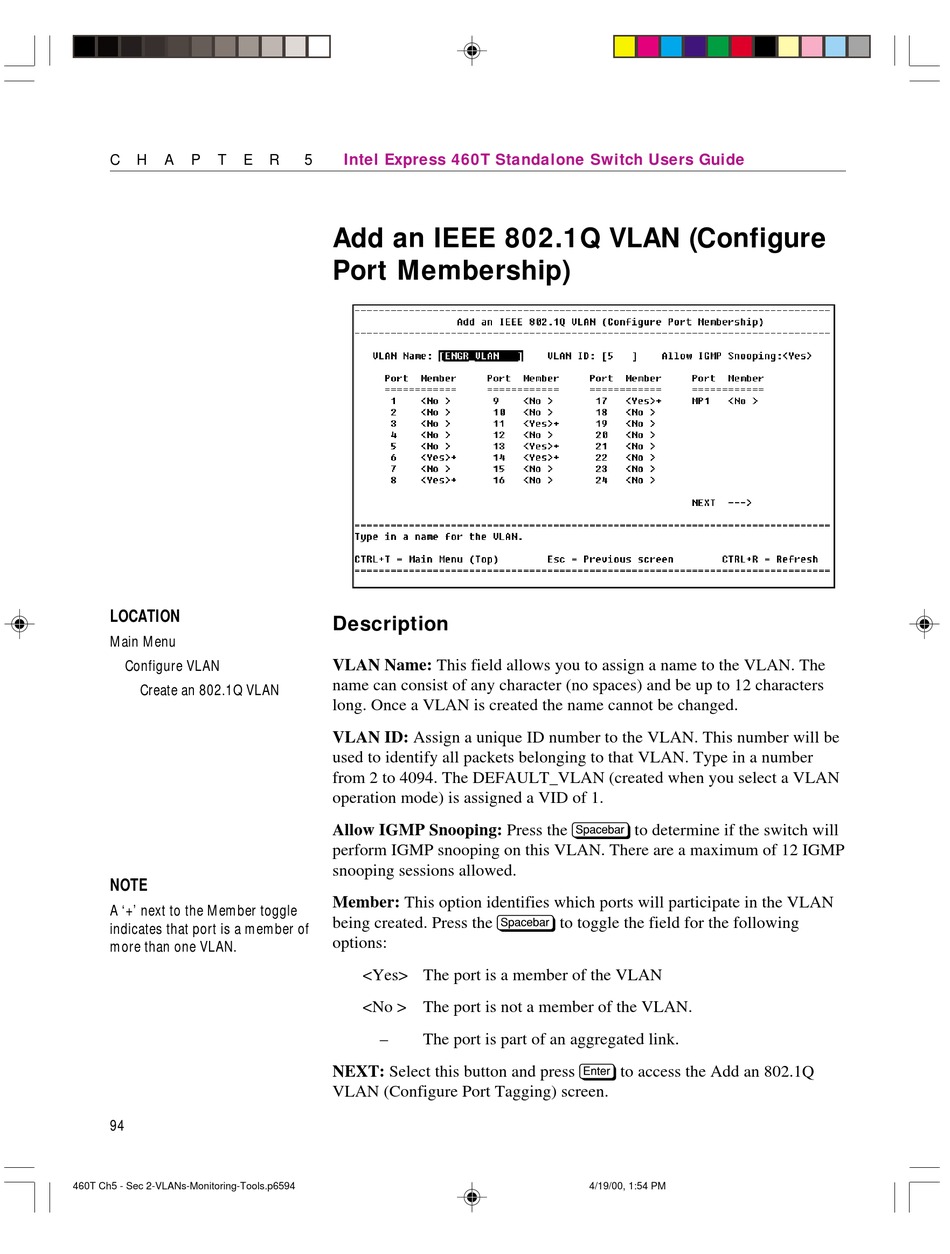

Add an IEEE 802.1Q VLAN (Configure
Port Membership)
Description
VLAN Name: This field allows you to assign a name to the VLAN. The
name can consist of any character (no spaces) and be up to 12 characters
long. Once a VLAN is created the name cannot be changed.
VLAN ID: Assign a unique ID number to the VLAN. This number will be
used to identify all packets belonging to that VLAN. Type in a number
from 2 to 4094. The DEFAULT_VLAN (created when you select a VLAN
operation mode) is assigned a VID of 1.
Allow IGMP Snooping: Press the z to determine if the switch will
perform IGMP snooping on this VLAN. There are a maximum of 12 IGMP
snooping sessions allowed.
Member: This option identifies which ports will participate in the VLAN
being created. Press the z to toggle the field for the following
options:
<Yes> The port is a member of the VLAN
<No > The port is not a member of the VLAN.
– The port is part of an aggregated link.
NEXT: Select this button and press e to access the Add an 802.1Q
VLAN (Configure Port Tagging) screen.
