C H A P T E
LOCATION
Main Menu

Configure Device

460T Ch5 - Sec 1-Nav & Config.p65
R 5 Using Local Management

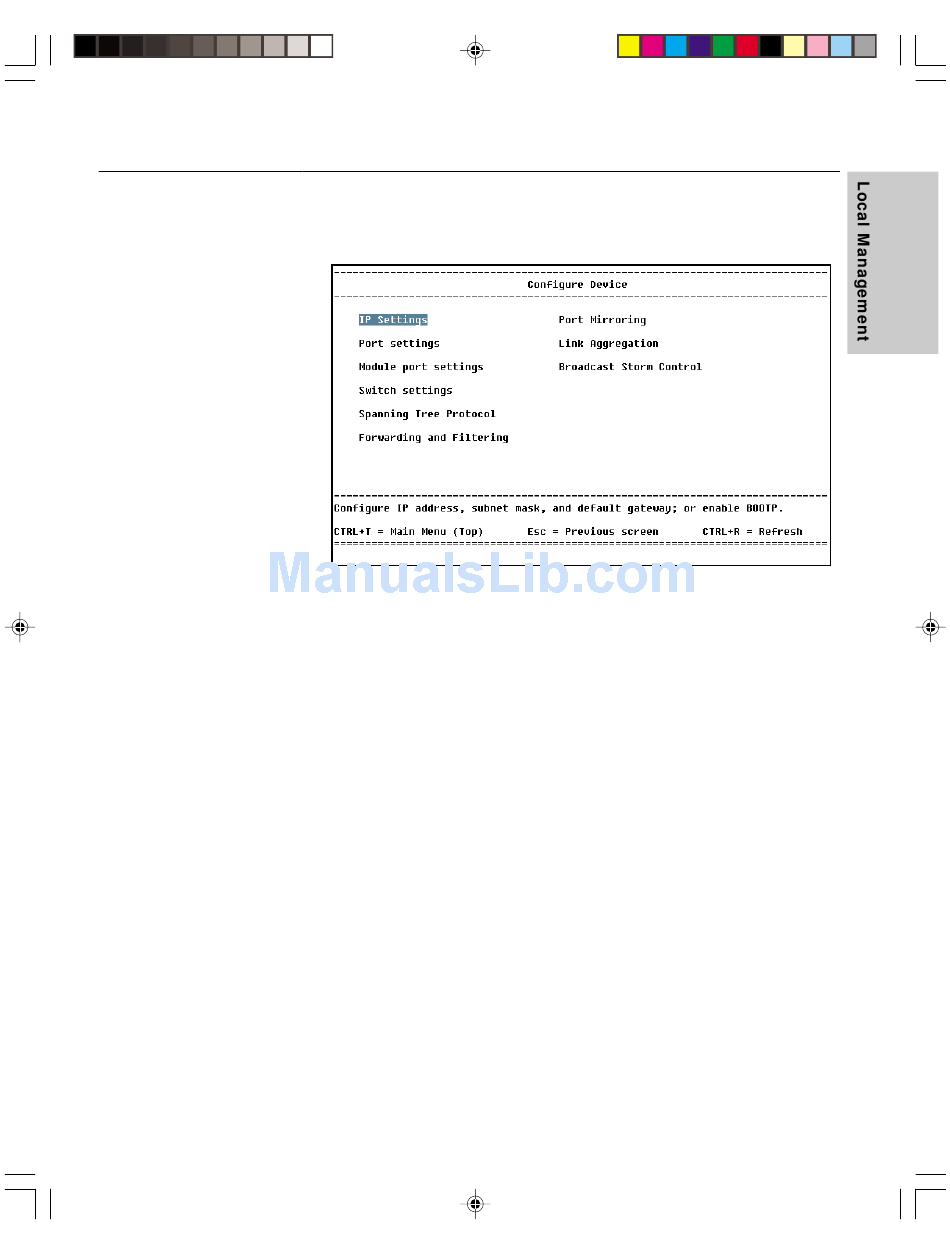

Configure Device
Description
IP Settings: Configures the switch's IP address.
Port Settings: Configures port speed, enables and disables ports, and
displays link status.
Module Port Settings: Configures the module's speed and duplex settings,
enables and disables ports, and displays link status.
Switch Settings: Sets switch identification, displays detailed information
about the switch hardware and firmware, and configures some advanced
switch settings.
Spanning Tree Protocol: Configures Spanning Tree for the entire switch
or individual ports.
Forwarding and Filtering: Adds, removes, or locks the switch's address
table, enables IGMP snooping, and sets filters for specific MAC addresses.
Port Mirroring: Sends a copy of data from one port to another for
monitoring and troubleshooting purposes.
Link Aggregation: Combine ports on the switch to increase bandwidth.
Broadcast Storm Control: Configures ports to drop excessive broadcast
traffic before it floods the network.
