C
H
A
P
T
E
LOCATION
Main Menu
Tools
Ping a Device
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Using Local Management

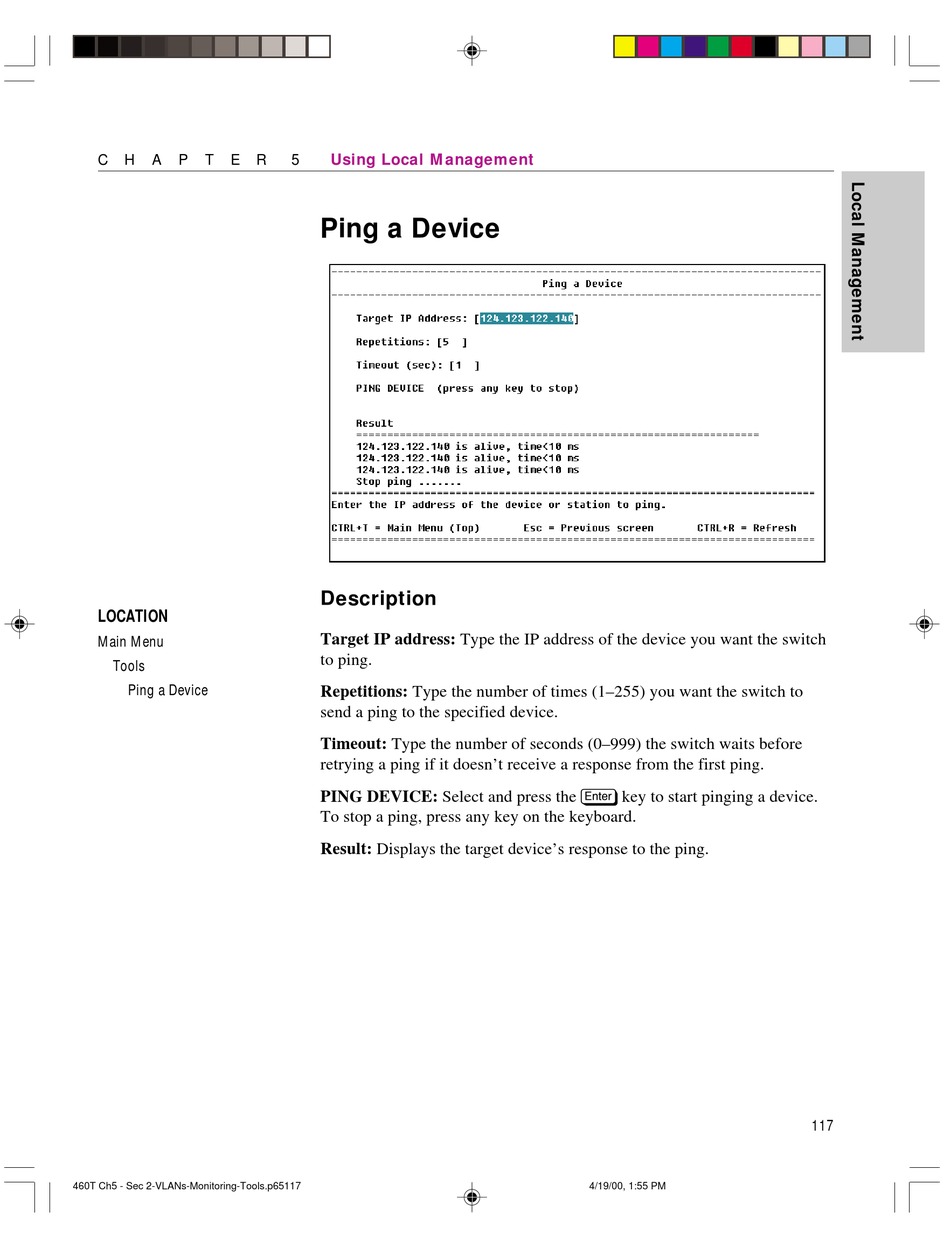

Ping a Device
Description
Target IP address: Type the IP address of the device you want the switch
to ping.
Repetitions: Type the number of times (1–255) you want the switch to
send a ping to the specified device.
Timeout: Type the number of seconds (0–999) the switch waits before
retrying a ping if it doesn't receive a response from the first ping.
PING DEVICE: Select and press the e key to start pinging a device.
To stop a ping, press any key on the keyboard.
Result: Displays the target device's response to the ping.
117
4/19/00, 1:55 PM
117
