42
4
Intel Express 460T Standalone Switch Users Guide
Tag-based VLAN
You configure a tag-based VLAN by configuring port membership and
ingress/egress rules. It is important to note whether the devices in your
VLAN support 802.1Q VLAN tags. If some of your devices don't support
tagging, additional configuration may be necessary.
To configure a tag-based (IEEE 802.1Q) VLAN
1 Create a VLAN and assign member ports.
• Click the Configure VLAN menu and then click Tag-based (IEEE
802.1Q) VLAN.

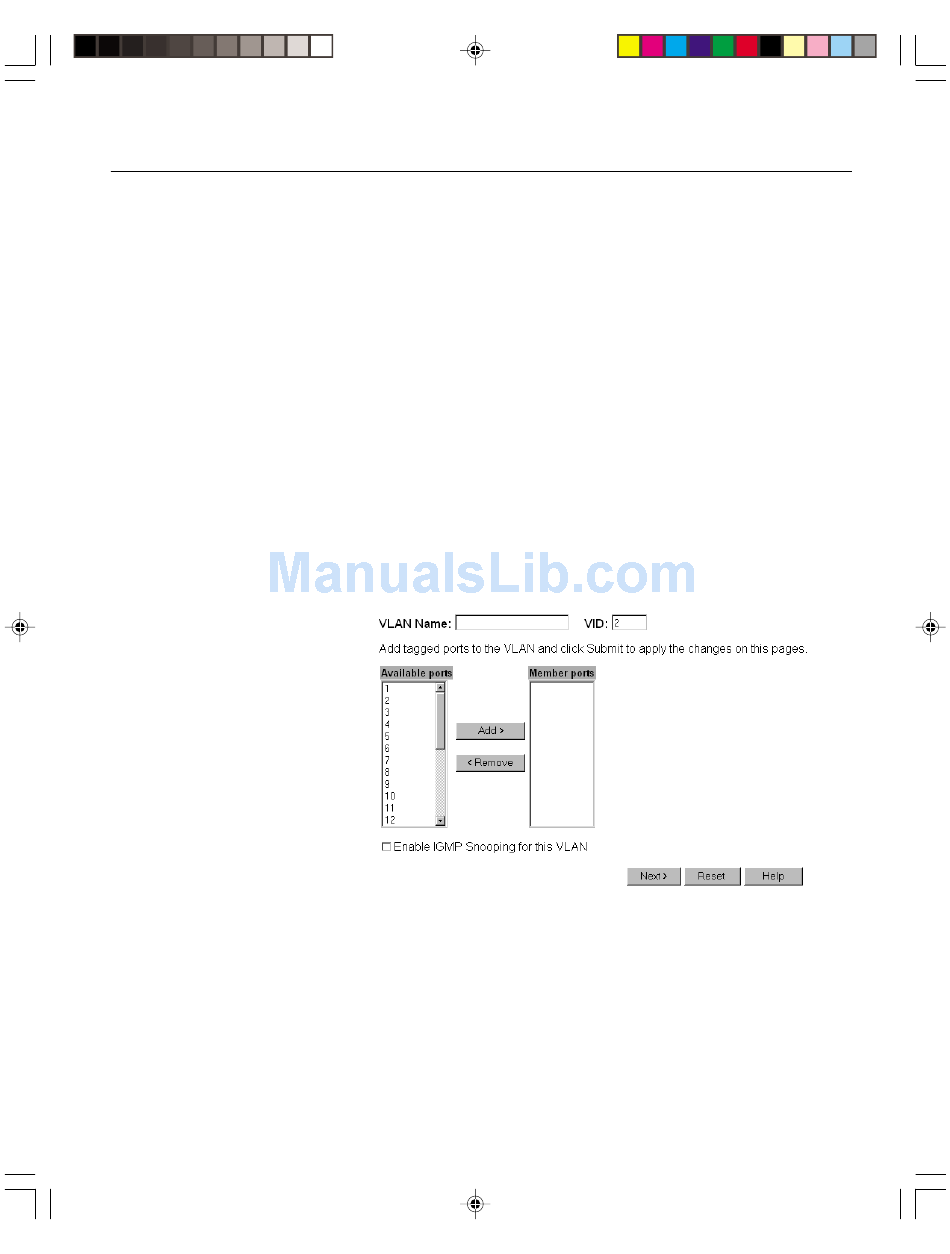

• From the main Tag-based VLAN page, click Add to create a new
VLAN. To modify an existing VLAN, click the VLAN name and
click Edit.
• If you are creating a new VLAN, type a name and VID (from 2 to
4094) to identify it.
• To add a port to the VLAN, click the port in the Available ports box
and click Add. To remove a port, click the port in the Member ports
box and click Remove.
• The switch supports a maximum of 12 IGMP Snooping sessions to
manage broadcast traffic. If you want the VLAN to be part of a
IGMP Snooping session, click the Enable IGMP Snooping check
box.
• When you have finished adding ports, click Next.
