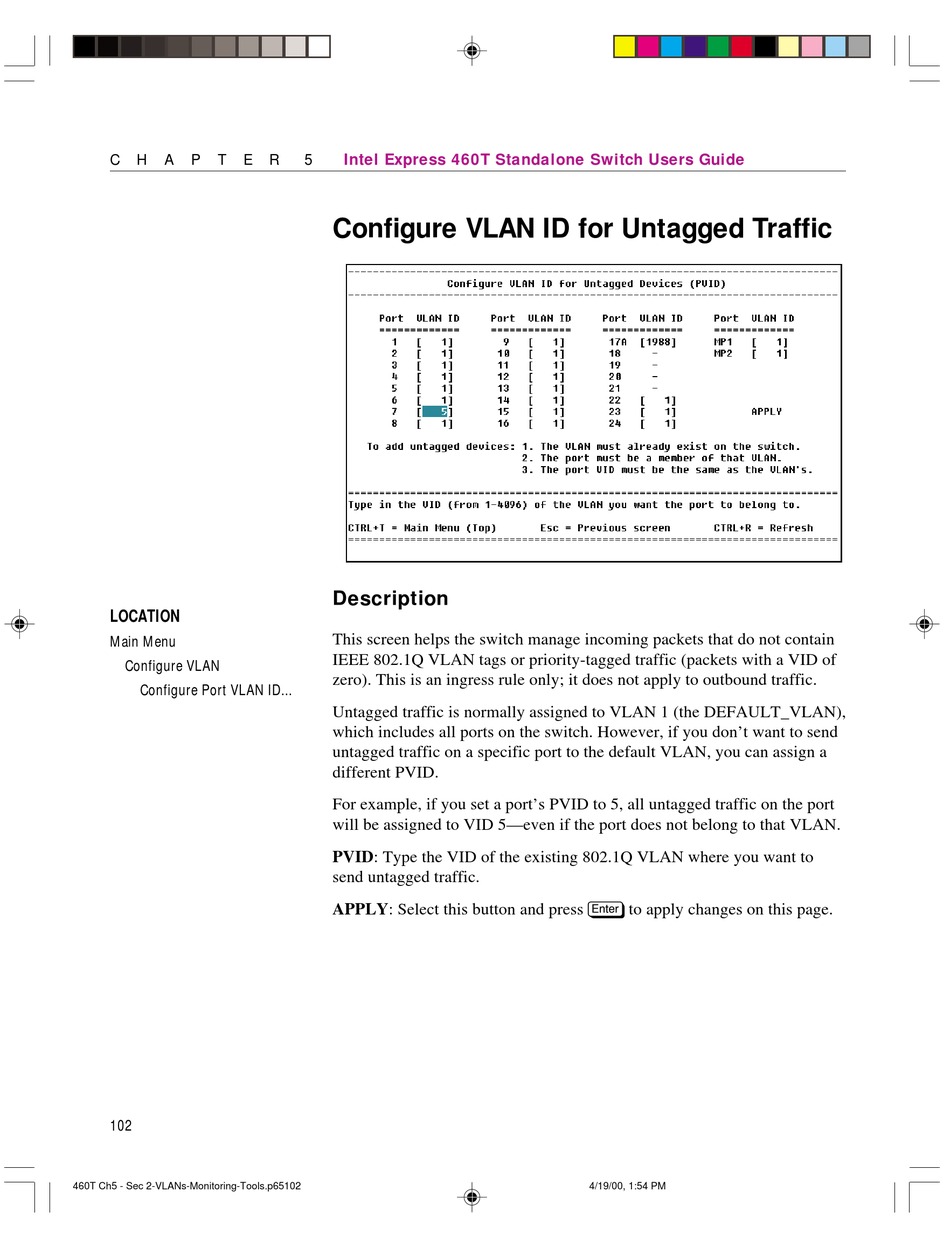

Intel Express 460T Standalone Switch Users Guide
Configure VLAN ID for Untagged Traffic
Description
This screen helps the switch manage incoming packets that do not contain
IEEE 802.1Q VLAN tags or priority-tagged traffic (packets with a VID of
zero). This is an ingress rule only; it does not apply to outbound traffic.
Untagged traffic is normally assigned to VLAN 1 (the DEFAULT_VLAN),
which includes all ports on the switch. However, if you don't want to send
untagged traffic on a specific port to the default VLAN, you can assign a
different PVID.
For example, if you set a port's PVID to 5, all untagged traffic on the port
will be assigned to VID 5—even if the port does not belong to that VLAN.
PVID: Type the VID of the existing 802.1Q VLAN where you want to
send untagged traffic.
APPLY: Select this button and press e to apply changes on this page.
