C H A P T E
LOCATION
Main Menu
Configure VLAN
Edit IEEE 802.1Q VLAN
NOTE
A '+' next to the Member toggle
indicates that port is a member of
more than one VLAN.
100
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel Express 460T Standalone Switch Users Guide

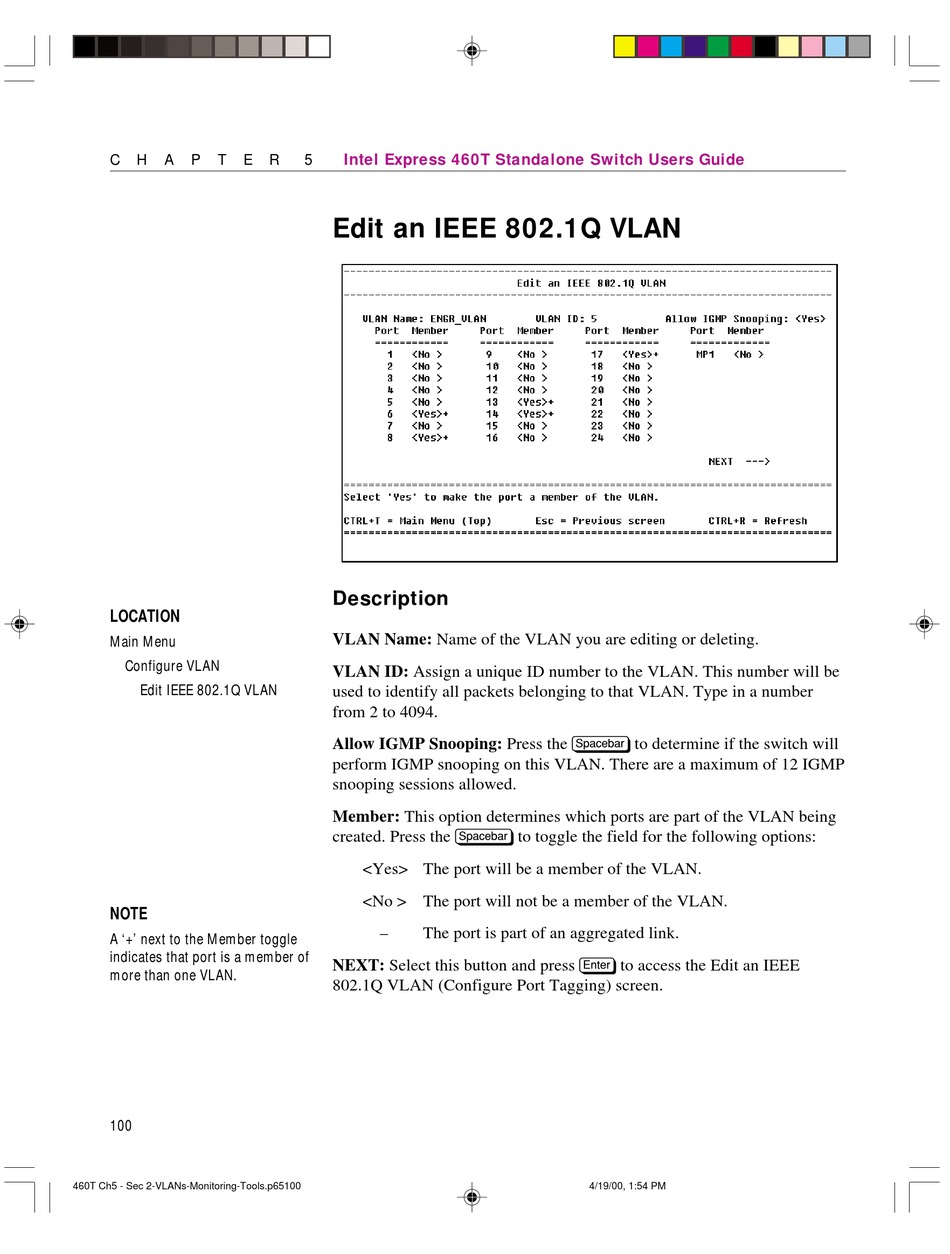

Edit an IEEE 802.1Q VLAN

Description
VLAN Name: Name of the VLAN you are editing or deleting.
VLAN ID: Assign a unique ID number to the VLAN. This number will be
used to identify all packets belonging to that VLAN. Type in a number
from 2 to 4094.
Allow IGMP Snooping: Press the z to determine if the switch will
perform IGMP snooping on this VLAN. There are a maximum of 12 IGMP
snooping sessions allowed.
Member: This option determines which ports are part of the VLAN being
created. Press the z to toggle the field for the following options:
<Yes> The port will be a member of the VLAN.
<No > The port will not be a member of the VLAN.
– The port is part of an aggregated link.
NEXT: Select this button and press e to access the Edit an IEEE
802.1Q VLAN (Configure Port Tagging) screen.
100 4/19/00, 1:54 PM
