Functional Architecture
•
Unique Chip ID for each part, burned at the time production testing
•
Hardware 32-bit Random Number generator
•
JTAG Master interface
•
On-Chip Test Infrastructure for testing BMC firmware
Graphics Controller Subsystem
•
Integrated Matrix Graphics Core
•
2D Hardware Graphics Acceleration
•
DDR-2 memory interface supports up to 128Mbytes of memory
•
Supports all display resolutions up to 1600 x 1200 16bpp @ 75Hz
•
High speed Integrated 24-bit RAMDAC
•
Single lane PCI Express* host interface

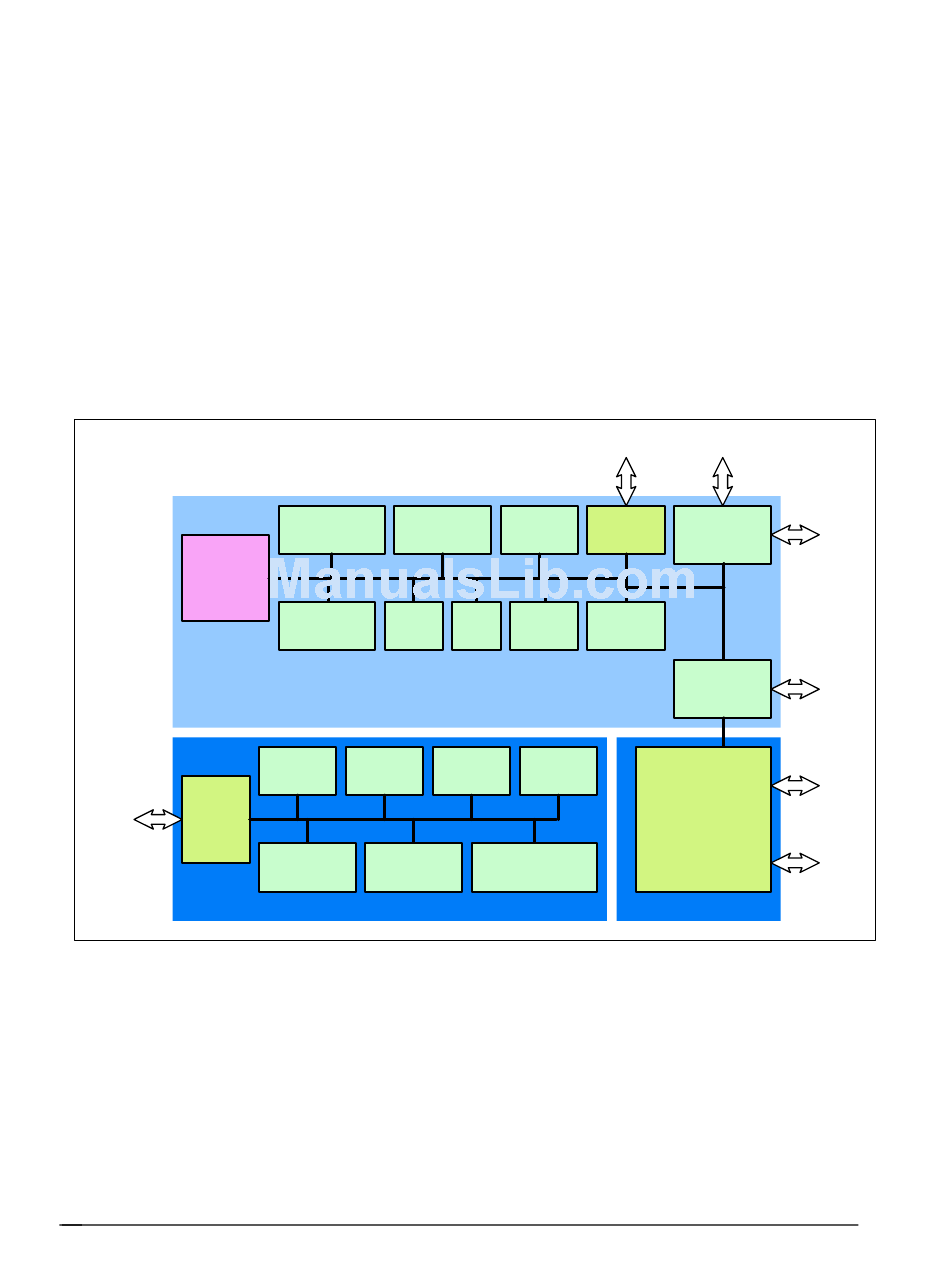

Integrated BMC Block Diagram
ARM926EJ-S
16K D & I
Cache
BMC & KVMS Subsystem
LPC
LPC
Interface
Interface
To Host
BMC & KVMS Subsystem
3.6

PCIe* to PCI-X* Bridge 6702PXH (PXH-V) (LX Board SKU Only)

The Intel 6702PXH 64-bit PCI Hub is a peripheral chip that performs PCI bridging
functions between the PCI Express* interface and the PCI bus. The Intel 6702PXH 64-bit
PCI Hub contains a single PCI bus interface that can be configured to operate in PCI (33
or 66 MHz) or PCI-X* Mode 1 (66, 100, or 133 MHz).
