Summary of Contents for Intel SE7210TP1
- Page 1 ® Intel Server Board SE7320SP2 / SE7525GP2 User Guide ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/Products Order Number: C62033-002...
- Page 2 Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components when the fully integrated system is used together. It is the responsibility of the system integrator that chooses not to use Intel developed server building blocks to consult vendor datasheets and operating parameters to determine the amount of airflow required for their specific application and environmental conditions.
-
Page 3: About This Manual
For information about which accessories, memory, processors, and third-party hardware have been tested and can be used with your board, and for ordering information for Intel products, see http://www.support.intel.com/support/motherboards/server. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 4: Additional Information And Software
BIOS settings and chipset information If you just received this product and Intel® Server Board SE7320SP2 Quick Start User’s Guide in the product box need to install it Intel® Server Board SE7525GP2 Quick Start User’s Guide in the product box For virtual system tours and A link to the SMaRT Tool is available under “Other Resources”... -
Page 5: Safety Information
Turn off the server and disconnect the power cord, telecommunications systems, networks, and modems attached to the server before opening it. Otherwise, personal injury or equipment damage can result. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 6: Safety Cautions
Safety Cautions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the Resource CD and/or at http://support.intel.com/support/motherboards/server/safecert.htm. SAFETY STEPS: Whenever you remove the chassis covers to access the inside of the system, follow these steps: Turn off all peripheral devices connected to the system. - Page 7 Preface Wichtige Sicherheitshinweise Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor Sie eine der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu Intel- Serverplatinen und -Servergehäusen auf der Ressourcen-CD oder unter http://support.intel.com/support/motherboards/server/safecert.htm. SICHERHEISMASSNAHMEN: Immer wenn Sie die Gehäuseabdeckung abnehmen um an das Systeminnere zu gelangen, sollten Sie folgende Schritte beachten: Schalten Sie alle an Ihr System angeschlossenen Peripheriegeräte aus.
- Page 8 Instrucciones de seguridad importantes Lea todas las declaraciones de seguridad y precaución de este documento antes de realizar cualquiera de las instrucciones. Vea Intel Server Boards and Server Chassis Safety Information en el CD Resource y/o en http://support.intel.com/support/motherbords/server/safecert.htm. INSTRUCCIONES DE SEGURIDAD: Cuando extraiga la tapa del chasis para acceder al interior del sistema, siga las siguientes instrucciones: Apague todos los dispositivos periféricos conectados al sistema.
- Page 9 Se il sistema è stato a lungo in funzione, il microprocessore e il dissipatore di calore potrebbero essere surriscaldati. Fare attenzione alla presenza di piedini appuntiti e parti taglienti sulle schede e sul telaio. È consigliabile l'uso di guanti di protezione. Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
- Page 10 Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
-
Page 11: Table Of Contents
System Cooling Fans Do Not Rotate Properly ............. 41 Diskette Drive Activity Light Does Not Light ..............42 CD-ROM Drive or DVD-ROM Drive Activity Light Does Not Light ....... 42 Cannot Connect to a Server..................42 Intel Server Board SE7320SP2 / SE7525GP2 User Guide... - Page 12 Industry Canada (ICES-003) ..................54 Europe (CE Declaration of Conformity)................ 54 Taiwan Declaration of Conformity (BSMI) ..............54 Korean Compliance (RRL) ................... 54 Getting Help ....................... 55 ® Intel Server Issue Report Form............... 57 Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
- Page 13 Contents Figures Figure 1. Intel® Server Board SE7320SP2................15 Figure 2. Intel Server Board SE7320SP2 / SE7525GP2 Layout........... 18 Figure 3. Configuration and BIOS Select Jumper Locations..........19 Figure 4. Back Panel Connectors ..................20 Figure 5. Making Connections to the Server Board ............. 21 Figure 6.
- Page 14 Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
-
Page 15: Server Board Features

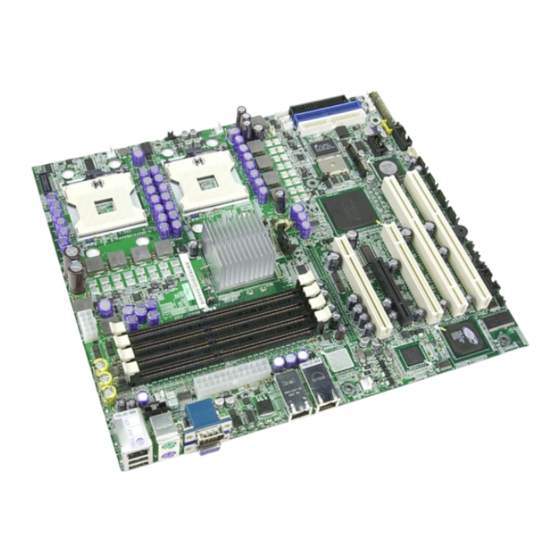

1 Server Board Features ® This chapter briefly describes the main features of Intel Server Board SE7320SP2 / SE7525GP2. This chapter provides a photograph of the product, a list of server board features, and diagrams showing the location of important components and connections on the server board. -
Page 16: Server Board Se7320Sp2 Features
Server Board SE7320SP2 Features Feature Description Processors Support for two Intel® Xeon™ processors in two 604-pin Intel Xeon processor sockets with an 800 MHz system bus Four 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets Memory Support for up to 8 GB Registered ECC system memory Support for single-sided or double-sided DIMMs (DDR266/333) Intel ®... -
Page 17: Server Board Se7525Gp2 Features
Server Board SE7525GP2 Features Feature Description Processors Support for two Intel® Xeon™ processors in two 604-pin Intel Xeon processor sockets with an 800 MHz system bus Four 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets Memory Support for up to 8 GB Registered ECC system memory Support for single-sided or double-sided DIMMs (DDR266/333) ®... -
Page 18: Server Board Connector And Component Locations
KK: Chassis Intrusion Header R: System Fan Header 5 LL: Serial B Header S: Processor 2 Fan Header MM: SCSI LED Connector T: ATA Power Connector Figure 2. Intel Server Board SE7320SP2 / SE7525GP2 Layout Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 19: Configuration And Bios Select Jumpers
If these pins are jumpered, the board will boot off of either BIOS (bank.0 or bank 1) depending on which is available first. Force Boot If these pins are jumpered, the board will boot off of bank 0 BIOS. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 20: Back Panel Connectors
Solid Amber Network connection in place Blinking Amber Transmit/receive activity 10 Mbps connection (if left LED is on or blinking) Right LED Solid Amber 100 Mbps connection Solid Green 1000 Mbps connection Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 21: Making Connections To The Server Board
H. System Fan Headers 5 & 6 R. SATA Connectors I. Hot Swap Backplane Header S. Chassis Intrusion Connector J. Processor 21 Fan Header T. Serial B Header Figure 5. Making Connections to the Server Board Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 22: Hardware Requirements
Software.” Processor Both the SE7320SP2 and SE7525GP2 server boards are designed to support one or two Intel® Xeon™ processors utilizing an 800 MHz front side bus with frequencies starting at 2.8 GHz. Previous generations of the Xeon processor are not supported for use on server boards SE7320SP2 and SE7525GP2. -
Page 23: Server Board Installations And Upgrades
2. Turn off all peripheral devices connected to the server. Turn off the server. 3. Disconnect the AC power cord. 4. Remove the server’s cover. See your chassis documentation for instructions. 5. Locate the DIMM sockets. See Figure 6. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 24: Figure 6. Installing Memory
11. Reconnect or replace any internal components you needed to disconnect or remove. 12. Replace the server’s cover. Reconnect any external components you needed to disconnect. 13. Attach the AC power cord. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 25: Removing Dimms
Keep part of your body in contact with the metal chassis to dissipate the static charge while handling the processor. (2) Avoid moving around unnecessarily. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 26: Installing The Processor
6. Align the pins of the processor with the socket, and insert the processor into the socket. Lower the socket lever completely. ✏ NOTE Make sure the alignment triangle mark and the alignment triangle cutout align correctly. See Figure 7. OM15042 Figure 7. Opening Socket Lever and Attaching Processor Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 27: Figure 8. Installing Heat Sink Over Processor
11. Reconnect or replace any internal components you needed to disconnect or remove. 12. Replace the server’s cover. Reconnect any external components you needed to disconnect. 13. Attach the AC power cord. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 28: Removing The Processor
8. Reconnect or replace any internal components you needed to disconnect or remove. 9. Replace the server’s cover. Reconnect any external components you needed to disconnect. 10. Attach the AC power cord. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 29: Replacing The Backup Battery
Kassera använt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 30: Figure 9. Replacing The Battery
10. Reconnect or replace any internal components you needed to disconnect or remove. 11. Replace the server’s cover. Reconnect any external components you needed to disconnect. 12. Attach the AC power cord. 13. Run Setup to restore the configuration settings to the RTC. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 31: Server Utilities
“No” is selected and the Enter key is pressed, or the ESC key is pressed, the user is returned to where they were before F10 was pressed without affecting any existing values. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 32: Upgrading The Bios
BIOS upgrade. Review also any release notes in the release notes file that accompanies the new version of the BIOS. The release notes may contain critical information regarding jumper settings, specific fixes, or other information to complete the upgrade. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 33: Upgrading The Bios
6. Check to make sure the BIOS version displayed during POST is the new version as the system reboots. 7. Enter Setup by pressing the F2 key during boot. 8. In Setup, press the F9 and <Enter> to set the parameters back to default values. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 34: Changing The Bios Language
You can use the BIOS upgrade utility to change the language the BIOS uses for messages and the Setup program. Use a bootable diskette containing the Intel flash utility and language files. 1. Boot the computer with the bootable diskette in drive A. The BIOS upgrade utility screen appears. -
Page 35: Recovering The Bios
5. When the system begins beeping, power it down and disconnect the AC power. 6. Return the CMOS Clear jumper to the original location, covering pins 1 and 2. 7. Close the server chassis, reconnect the AC power and power up the system. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 36: Clearing The Password
4. Reconnect the AC power, power up the system. 5. Power down the system and disconnect the AC power. 6. Return the Password Clear jumper to the original location, covering pins 5 and 6. 7. Close the server chassis. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 37: Troubleshooting
SCSI drivers. Intel provides a package called the “Platform Confidence Test” that may help with your diagnostics. See “Additional Information and Software”... -
Page 38: Hardware Diagnostic Testing
5. If the power LED does light, attempt to boot from a floppy diskette or from a CD-ROM disk. 6. Turn on the system. If the power LED does not light, see “Power Light Does Not Light.” Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 39: Verifying Proper Operation Of Key System Lights
Have you securely plugged the server AC power cord into the power supply? Is the power supply correctly set to 110V or 235V, depending on your power output? Will other items plugged into the same power outlet function correctly? Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 40: No Characters Appear On Screen
Remove the memory DIMMs and re-seat them. Make sure the processor(s) comply with the system requirements. Make sure the processor(s) have been populated according to the system requirements. Remove the processor(s) and re-seat them. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 41: Characters Are Distorted Or Incorrect
Are the power supply cables properly connected to the server board? Are there any shorted wires caused by pinched-cables or have power connector plugs been forced into power connector sockets the wrong way? Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 42: Diskette Drive Activity Light Does Not Light
Make sure the correct networking software is installed. If you are directly connecting two servers (without a hub), you will need a crossover cable. Check the network controller LEDs next to the NIC connectors. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 43: Problems With Network
Before installing a PCI card, you should always: Turn off the server power by using the power button on the front of the system. Unplug the AC power cord(s) from the server. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 44: Problems With Newly Installed Application Software
Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 45: Devices Are Not Recognized Under Device Manager (Windows* Operating System)
Troubleshooting Devices are not Recognized under Device Manager (Windows* Operating System) The Windows* operating systems do not include all of the drivers for the Intel® chipsets, onboard NICs, and other components. See “Additional Information and Software” for a link to the current drivers and chipset files. -
Page 46: Led Information
Off = Power is off (off or Power LED Identify the power state Control panel Green of the system On = Power on or S0) Slow Blink = Low power state (S1 – S3) Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 47: Bios Error Messages
NVRAM was invalid and has been updated. Updated Failed NVRAM was invalid but was unable to be updated. Keyboard Error Error in the keyboard connection. Make sure keyboard is connected properly. KB/Interface Error Keyboard interface test failed. continued Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 48: Bios Post Beep Codes
8042 GateA20 cannot be toggled (memory failure or not present) Exception interrupt error Display memory R/W error (Reserved; not used) CMOS Shutdown register test error Invalid BIOS (such as, POST module not found) Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 49: Bios Recovery Beep Codes
An error or warning condition at boot can result in a series of beeps being issued known as "beep ® codes. These beeps have a code that identifies system or PCI card events. For example, some Intel RAID cards have beep codes. Before checking for a system beep code error make sure the PCI card is not causing the beeping. - Page 50 Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
-
Page 51: Regulatory And Compliance Information
Note: Legally the product is required to comply with Class A emission requirements as it is intended for a commercial type market place. Intel targets 10db margin to Class A Limits The Server Board SE7320SP2 / SE7525GP2 has been has been tested and verified to comply with ®... -
Page 52: Certifications / Registrations / Declarations
UL Mark USA/Canada CE Mark Europe FCC Marking (Class A) EMC Marking (Class A) Canada CANADA ICES-003 CLASS A CANADA NMB-003 CLASSE A BSMI Marking (Class A) Taiwan RRL MIC Mark Korea Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 53: Electromagnetic Compatibility Notices
All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded may result in interference to radio and TV reception. Intel Server Board SE7320SP2 / SE7525GP2 User Guide... -
Page 54: Industry Canada (Ices-003)
English translation of the notice above: 1. Type of Equipment (Model Name): On License and Product 2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative 3. Name of Certification Recipient: Intel Corporation 4. Date of Manufacturer: Refer to date code on product 5. -
Page 55: Getting Help
Telephone All calls are billed US $25.00 per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice). Before calling, fill out an “Intel®... - Page 56 800 843 4481 Chile (Mainland and Juan) Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481 Miami 1 800 621 8423 For an updated support contact list, see http://www.intel.com/support/9089.htm/ Intel Server Board SE7320SP2 / SE7525GP2 User Guide...
-
Page 57: Intel Server Issue Report Form
Internet. Date Submitted: Company Name: Contact Name: Email Address: Intel Server Product: Priority (Critical, Hot, High, Low): Brief Problem Description. Provide a brief description below. See the last page for space to include a detailed problem description. - Page 58 Operating System Information Operating System Version Service Pack Peripheral Information Check each box below that is used, and provide the requested information Peripheral Card Or Peripheral Description Driver IRQ # I/O Base FW Rev# Revision Address PCI-Express (x16) PCI Slot 6 PCI-Express (x4) PCI Slot 4 PCI-X (64/66)
- Page 59 Issue Report Form Complete Problem Description In the space below, provide a complete description of the steps used to reproduce the problem or a complete description of where the problem can be found. Please also include any details on troubleshooting already done.
