Intel® Server Boards S3200SH/S3210SH TPS
Table 1. Intel
Ref Description
A PCI-X (64bit/133MHz) Slot 1
B PCI-X (64bit/133MHz) Slot 2
C PCI 5V (32bit/33MHz) Slot 3
D PCI Express* x8
E PCI Express* x16
F System Fan 1 Connector
G Back Panel Connectors
H Diagnostic LEDs
I Processor Fan 1 Connector
J 2X4 Aux Power Connector
K Processor Socket
Revision 1.3
®

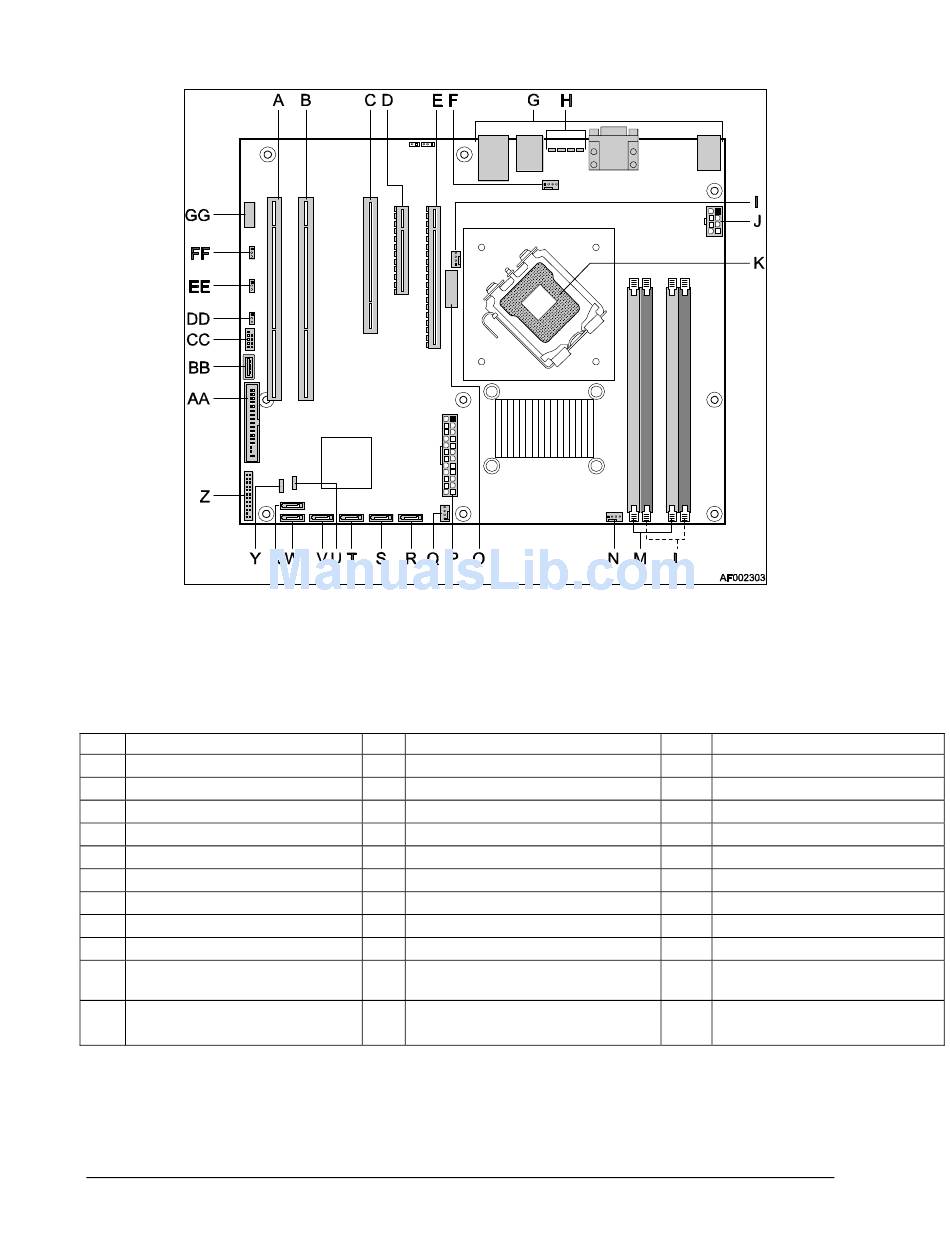

Figure 1. Intel Server Board S3210SHLX Diagram
®
Server Board S3210SHLX Board SKU Layout Reference
Ref
L Channel 2 DIMM Sockets
M Channel 1 DIMM Sockets
N System Fan 3 Connector
O Battery
P Main Power Connector
Q System Fan 2 Connector
R SATA 5
S SATA 4
T SATA 3
U HSBP
V SATA 2
Description
Server Board Overview
Ref Description
W SATA 1
X SATA 0
Y IPMB
Z Front Panel Header
AA Floppy Connector
BB Internal USB
CC External USB
DD CMOS Clear Jumper
EE BIOS Jumper
FF NIC1 NVM Protect Mode
Jumper
GG Serial
Port
7
