Intel® Server Board S3000PT TPS
7.6.3

POST Code LEDs

Four POST code LEDs display POST code progression activities using hexadecimal format,
read from the least significant bit to the most significant bit . These LEDs are not visible from the
rear I/O panel.
7.7

Jumper Blocks

This section describes configuration jumper options on the Intel® Server Board S3000PT.
7.7.1.1 Clear CMOS and NIC1 Firmware Update and system maintenance
Jumpers
Both the CMOS Clear and the NIC1 firmware update jumper consist of 3-pin headers (CMOS
Clear = J1B1, NIC1 FW update = J1B2) located just behind the DIMM slots and near the board
edge. The Intel® Server Board S3000PT provides two 3-pin jumper blocks that are used to
perform clearing of NVRAM and enabling of NIC1 firmware update options. The factory defaults
are set to Normal mode for each function.
The following tables describe each jumper option.
70

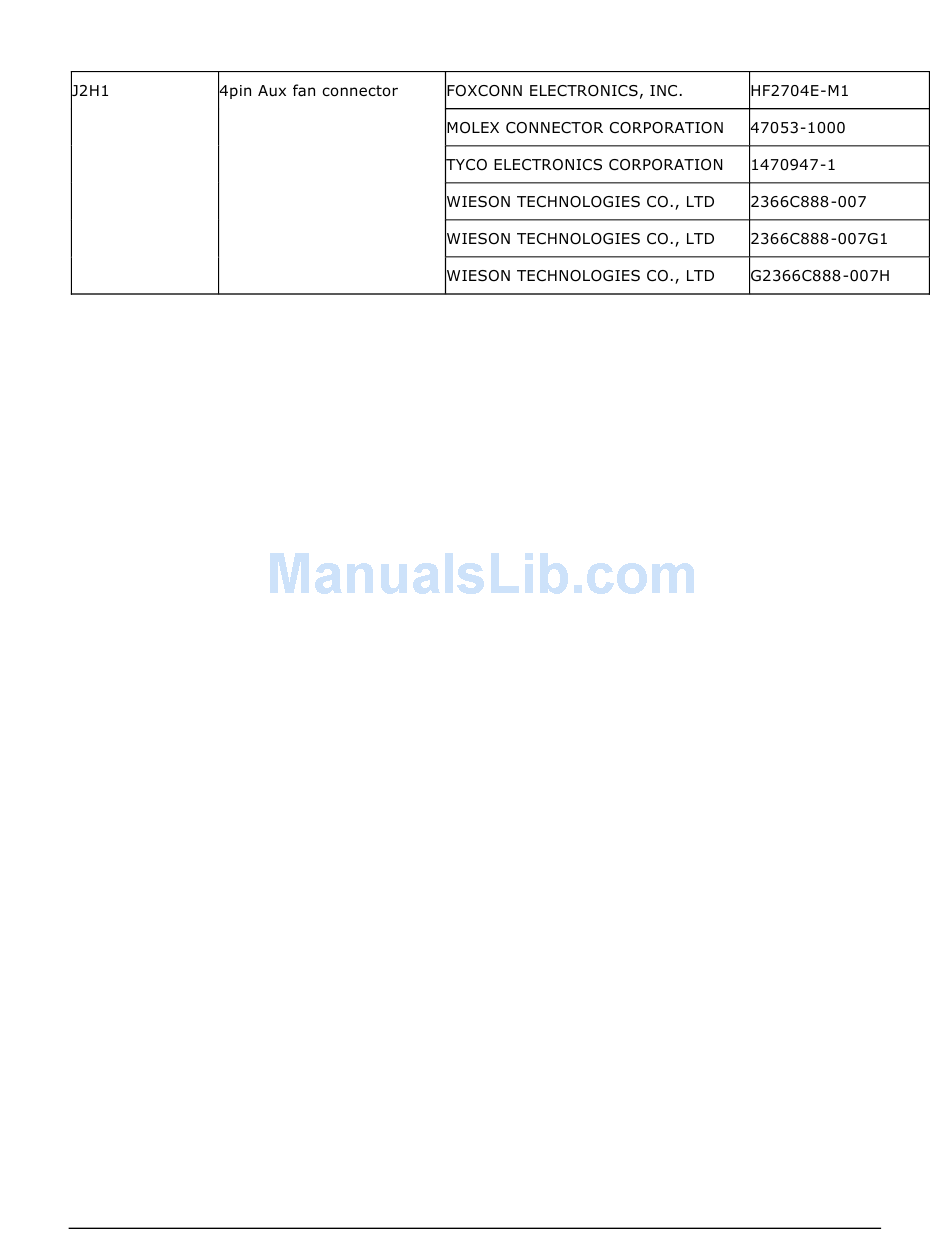

Table 57. Non-Standard Connector Information

Table 58. CMOS Clear Jumper Options (J1B1)

Connectors and Jumper Blocks
Revision 1.3
mode
