Intel® Server Board S3000PT TPS
3.5.3.1.1 Serial Port A
Serial A is a standard DB9 interface located at the rear I/O panel of the server board, above the
video connector. Serial A is designated by a Serial_ A on the silkscreen. The reference
designator is J3A1.
Serial B is a 3-pin header interface located near the SIO. Serial B is designated by a Serial_B
on the silkscreen. The reference designator is J2B1.
Pin
1
2
3
4
5
6
7
8
9
Pin
1
2
3
3.5.3.2 Keyboard and Mouse Support
USB ports can be used to support keyboard and mouse. No PS/2 port is available.
3.5.3.3 Wake-up Control
The Super I/O contains functionality that allows various events to control the power -on and
power-off the system.
3.5.4

BIOS Flash

The board incorporates a SPI flash memory which can work with 16 megabit SPI serial flash
devices that provide 1024K x 8 or 512K x 8 of BIOS and non-volatile storage space. The flash
device is connected through th e SPI bus from the Intel® ICH7R controller.
Revision 1.3

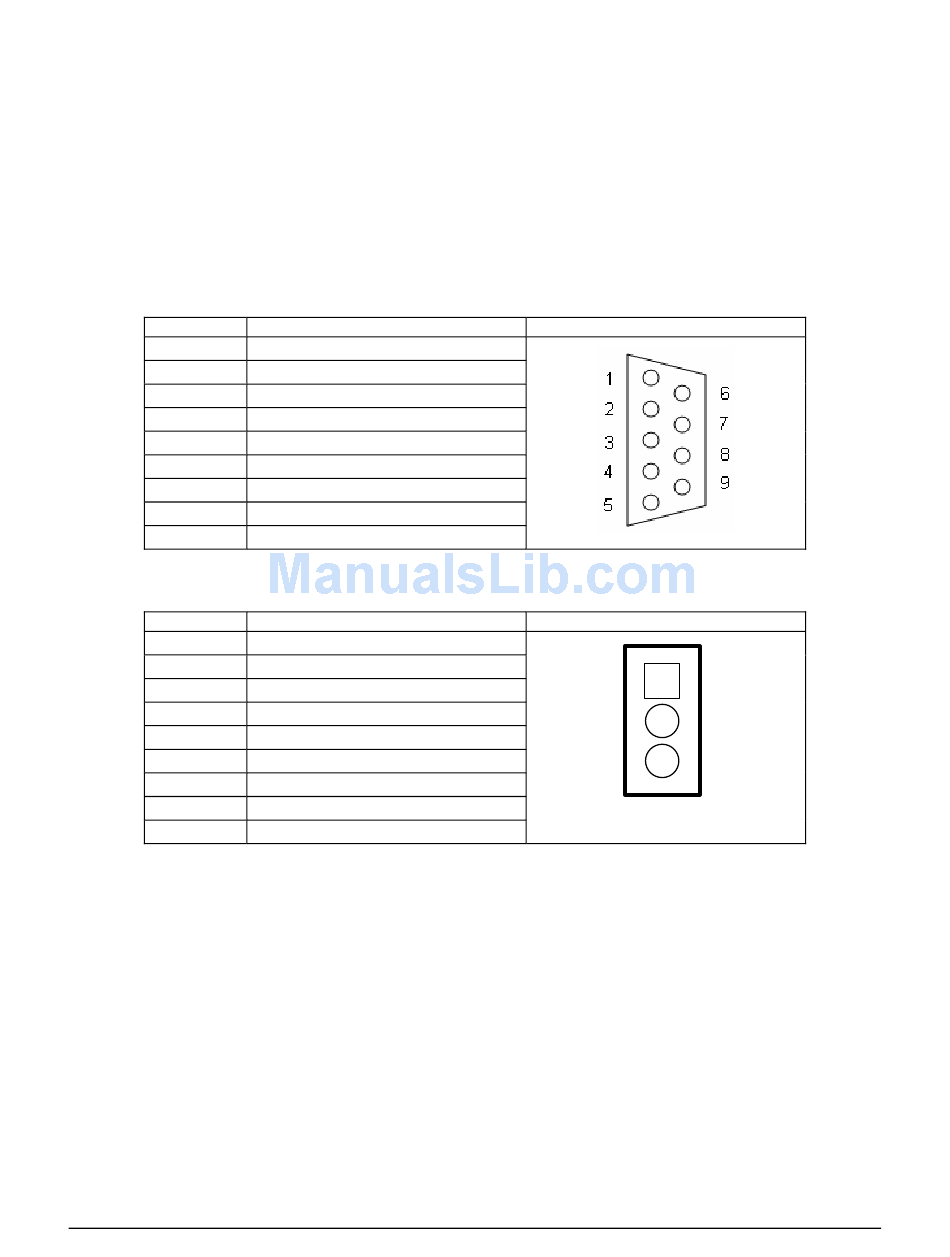

Table 14. Serial A Header Pin-out

Signal Name
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI

Table 15. Serial B Header Pin-out

Signal Name
RXD
GND
TXD
Functional Architecture
Serial Port A Header Pin -out
Serial Port B Header Pin-out
Rx
1
GND
2
Tx
3
3-pin Serial B header
23
