Replacing the 3 1/2-Inch Drive Bracket

When replacing the 3 1/2-inch drive bracket, take care to prevent pulling and loosening the
cable connections.
Place the 3 1/2-inch drive bracket in the 3 1/2-inch device slot.
1.
2. Slide the 3 1/2-inch drive bracket toward the front of the chassis so that the tabs
secure the bracket.
3. Use the previously removed bracket screw to secure the bracket in place (see
Figure Section 3-39).
Screw
Tab

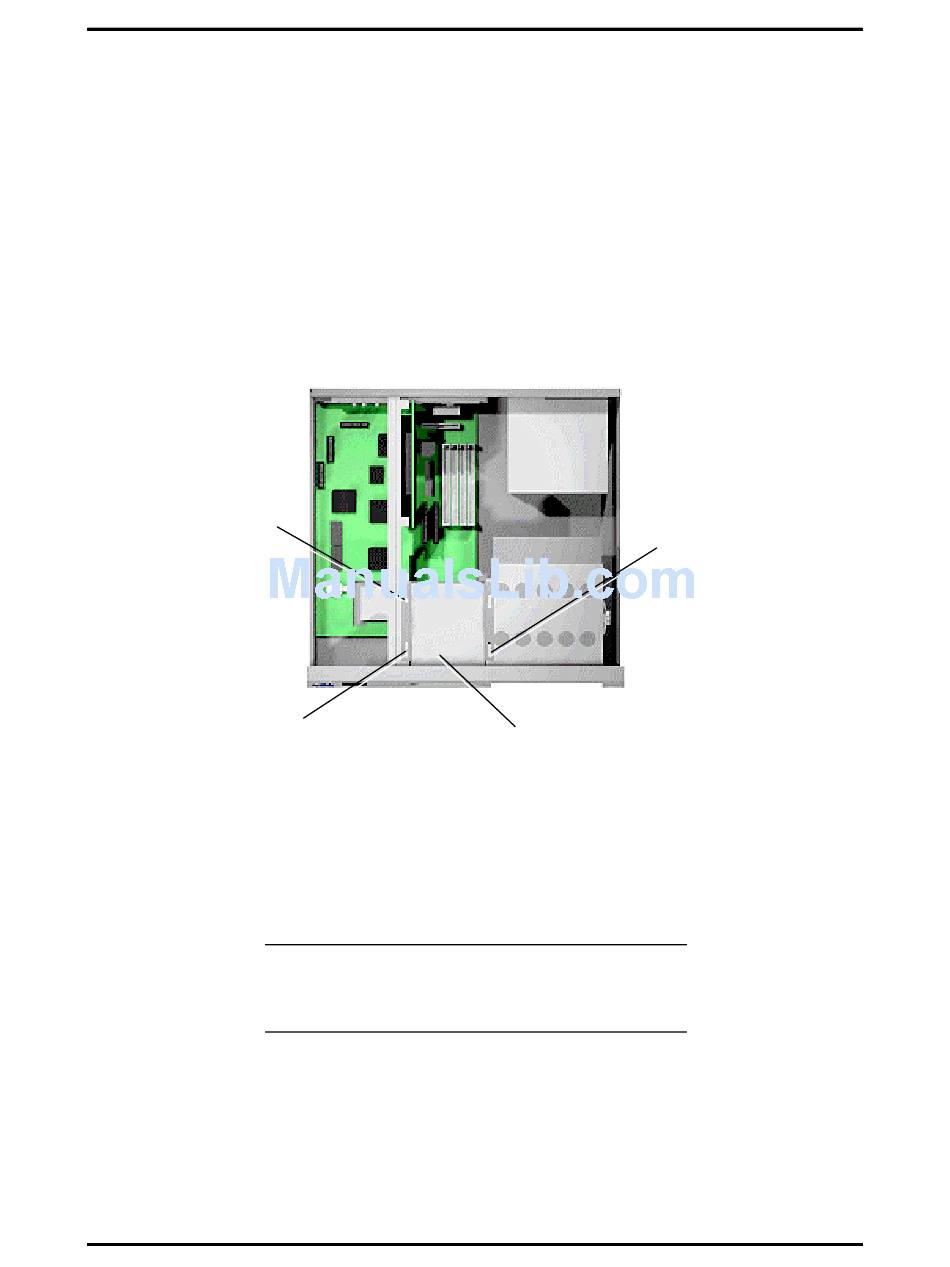

Figure Section 3-39 Securing the 3 1/2-Inch Drive Bracket
Replace the front panel (see "Replacing the Front Panel").
4.
5. Replace the system unit cover.
6. Run the Setup program to set the new configuration.
NOTE: If a 1.2-MB diskette drive was installed,
remove the protective cardboard insert from the
drive.
Option Installation
Tabs
3 1/2-Inch
Drive Bracket
3-29
