ADVANCED CONNECTIONS

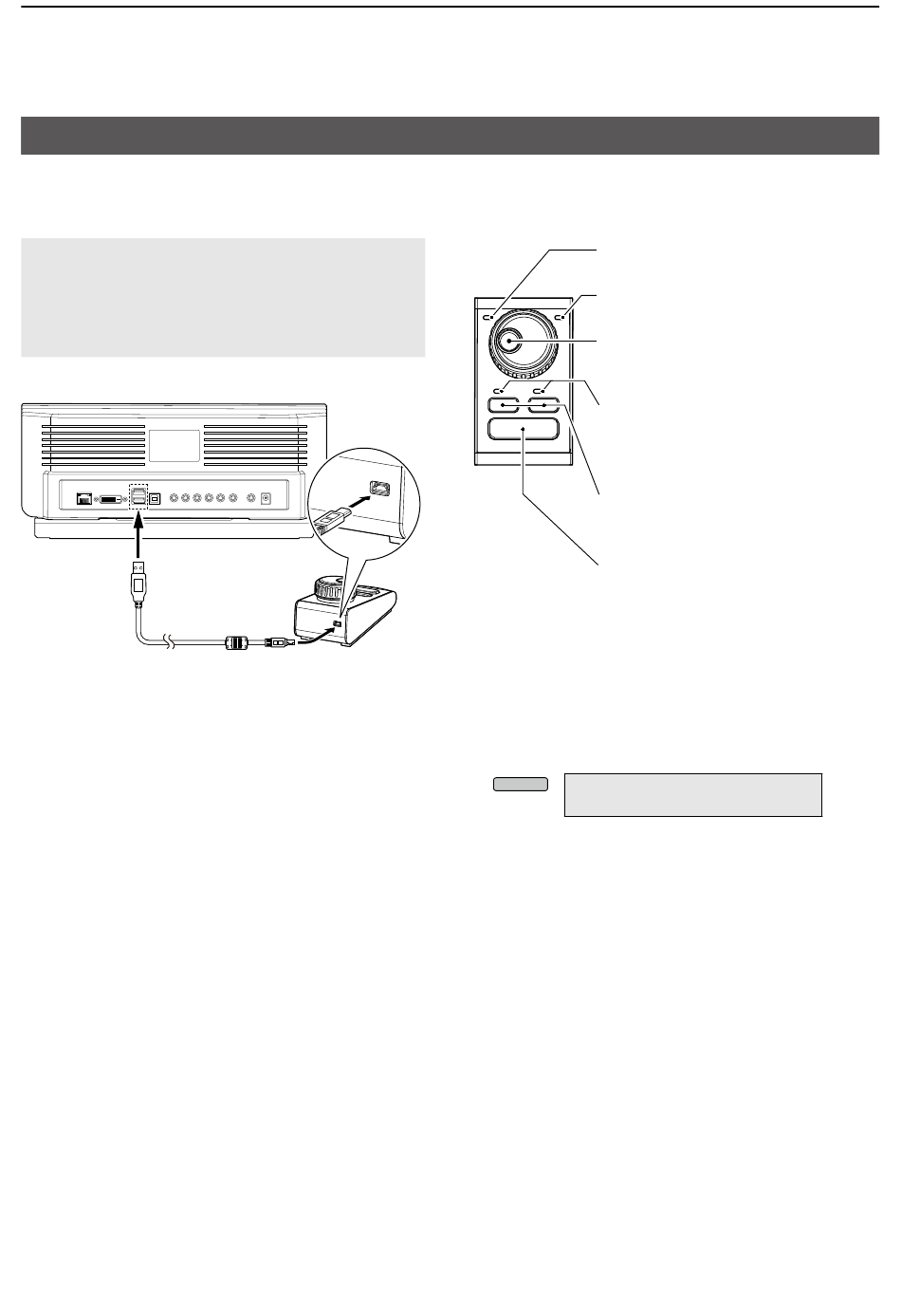

Connecting the RC-28
The optional RC-28 remote encoder can be used as
a sub dial.
NOTE:
• See the RC-28's manual to use the RC-28 with the
RS-BA1 ip remote control software.
• Operation using the RC-28 with other than the USB
cable supplied with the RC-28, or connecting it through
a USB hub, is not guaranteed by Icom.
Controller
To a USB port
USB cable
(supplied with the RC-28)
D Using the RC-28
* The [F-1] and [F-2] buttons or keys are disabled when
RC-28
"USB Dial Selectˮ is set to "Only SUB.ˮ
L Setting the "USB Dial Select" to "MAIN/SUB"
enables you to operate both the Main band and the
Sub band, using the RC-28.
MENU
1-3
[TRANSMIT] LED
Lights while transmitting.
[LINK] LED
Lights while the RC-28 is connected to
the transceiver.
Main dial
Changes the Sub band's operating
frequency (default).
[F-1]/[F-2] LEDs*
[F1] lights when operating the Main
band, and [F-2] lights when operating the
Sub band.
[F-1]/[F-2] buttons*
Selects the Main band or Sub band to
operate with the Main dial.
[TRANSMIT] button
Push to switch between transmit and
receive.
» SET > Connectors > USB DIAL >
USB DIAL Select
