ADVANCED CONNECTIONS

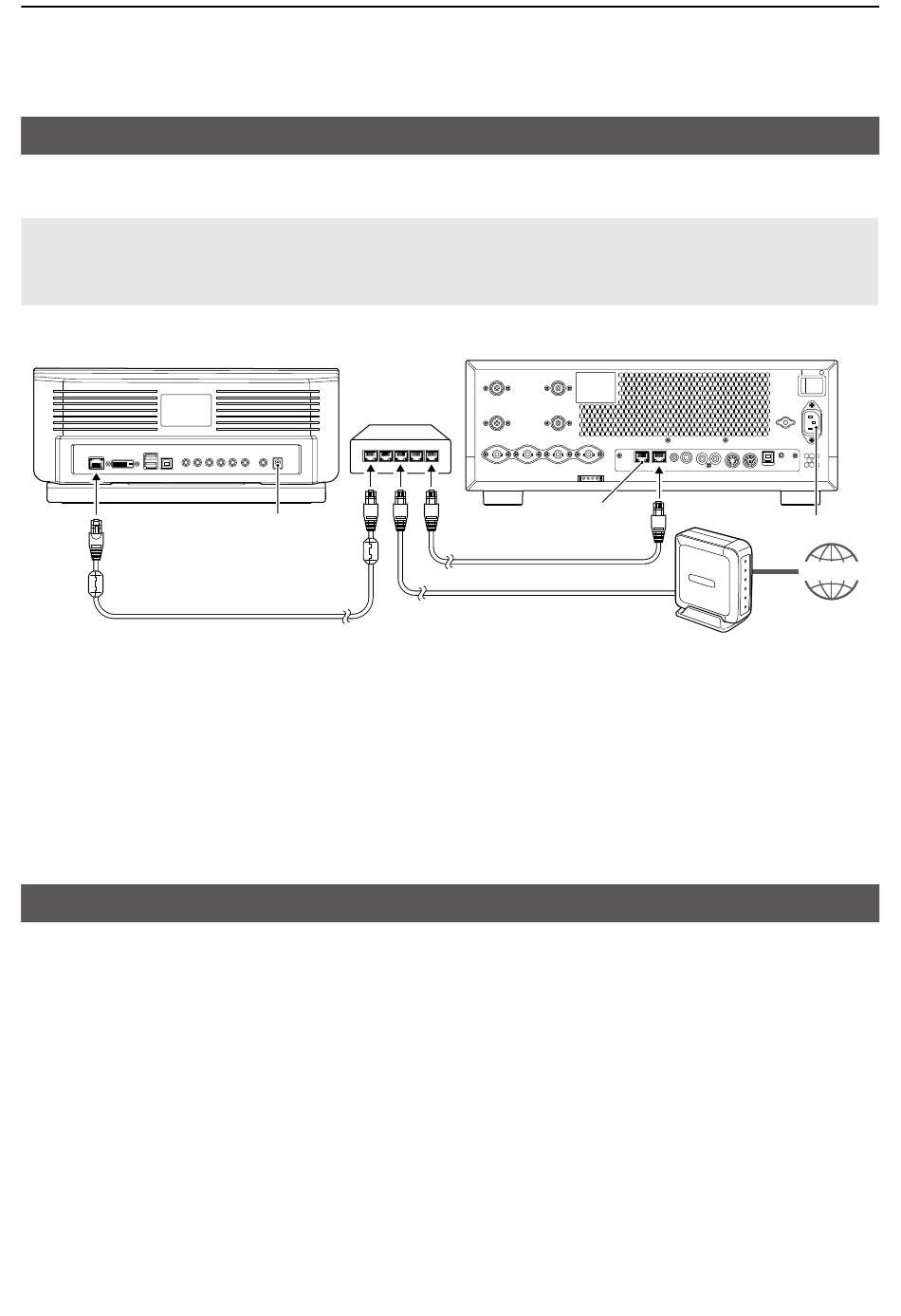

Connecting the controller and RF deck through a network
After the controller and RF deck are paired, you can connect the controller and RF deck through a network as
shown below.
NOTE: Use networking devices and ethernet cables that are compatible with Gigabit Ethernet.
Operation cannot be guaranteed if:
• Connecting through a wireless LAN network.
• Using a networking device or ethernet cable that is compatible only with Fast Ethernet or prior.
Controller
[RF DECK]
Supplied control cable
* 1 User supplied
* 2 See the Basic manual for about connecting the power cables and grounding.
* DO NOT connect [CONTROLLER] to a networking device.
3
L When a DHCP server is not in a network, set "DHCP" to "OFF," and then set "IP Address (LAN)," "IP Address (Controller),"
and "IP Address (RF Deck)."
When using 2 or more IC-7760
Be careful the following when 2 or more IC-7760 (controller and RF deck) are operated.
• The [CONTROLLER] port on the RF deck can be used only for connecting a controller.
DO NOT connect 2 or more controllers or other devices to the RF deck's [CONTROLLER] port.
• Before using the transceiver for the first time, or after performing an All reset, directly connect the controller and
the RF deck with a supplied control cable to pair them.
• When you want to operate an RF deck from 2 controllers, pair the RF deck and each controller.
• Even when an RF deck is paired with 2 or more controllers, you can use only one controller to operate the RF
deck simultaneously.
A controller that is turned ON last has the priority of connecting to the RF deck. In this case, the controller first
connected to the RF deck displays a dialog for 5 seconds, and then that controller will automatically be turned OFF.
L When "Power OFF Setting (for Remote Control)" is set to "Standby/Shutdown," the controller will automatically go into the
Standby mode.
• If you use a one-to-one controller and RF deck but 2 or more controllers and RF decks are in the same network,
DO NOT pair your RF deck with other controllers.
L If the RF deck is paired with another controller, the controller that is turned ON last is connected to the RF deck.
L To clear the pairing information, save the setting data onto an SD card or USB flash drive, do an All reset, and then loading
the saved data files.
Network switch
*
2
1-5
RF deck
* 3
Ethernet cable* 1
Ethernet cable* 1
[LAN]
*
WAN
INTERNET INTERNET
LAN
Router
