Icom IC-7760 Advanced Manual page 54

3
SCOPE OPERATION (ADVANCED)

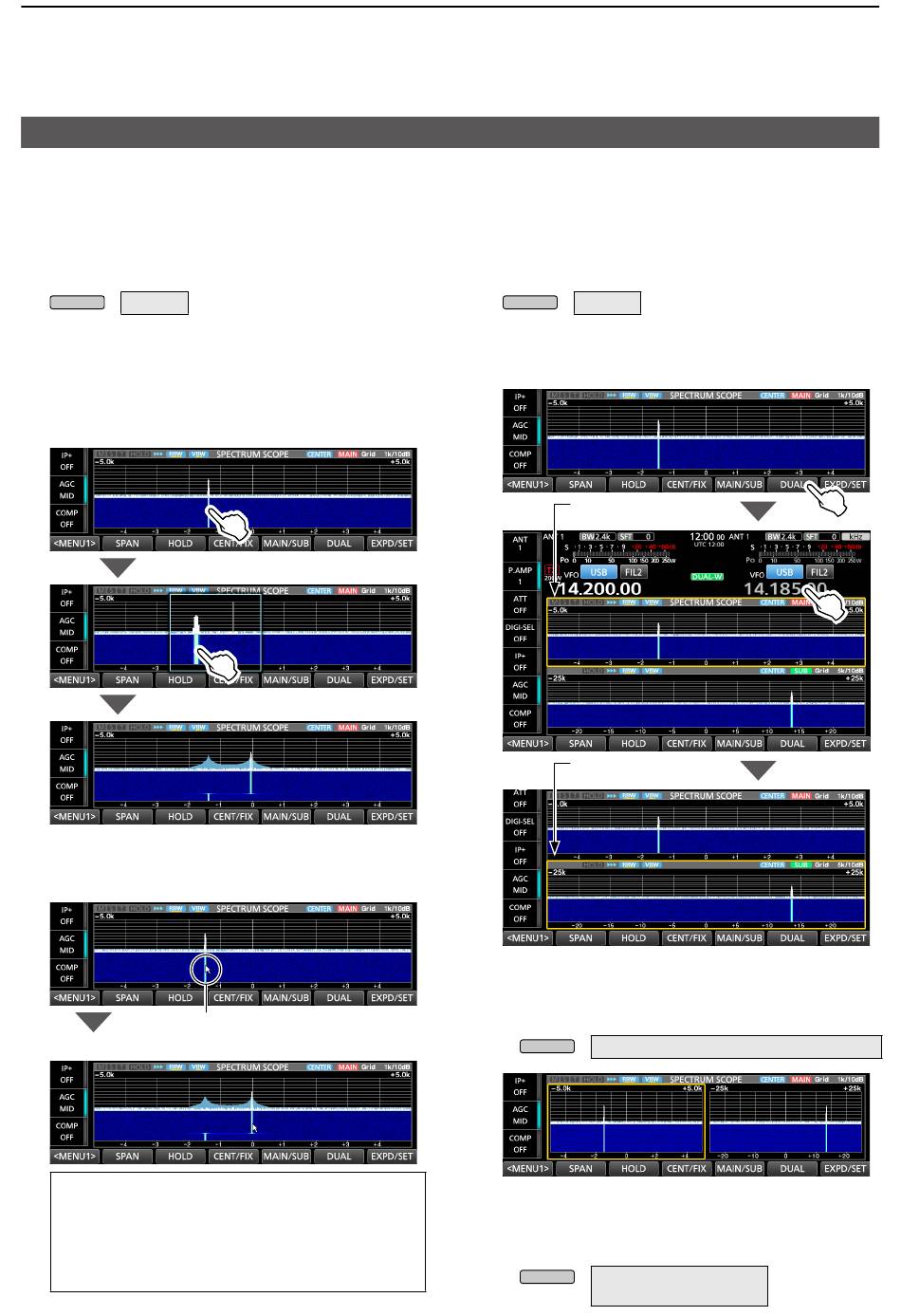

Spectrum scope screen
D Directly selecting a frequency
By touching or clicking on the FFT scope zone or the
waterfall zone in the SPECTRUM SCOPE screen, you
can directly tune your frequency to the signal.
1. Display the SPECTRUM SCOPE screen.
» SCOPE
MENU
2. Touch the signal spectrum on the FFT scope zone
or the waterfall zone or click on a signal.
(Example: in the Center mode)
3. When you touch the FFT scope zone or the
waterfall zone, the area around the touched point
is zoomed in.
Touch the signal in the zoomed area.
L Touch out of the zoomed area to close the zoomed window.
If you click on a signal, your frequency is tuned
to the signal frequency.
Click on the frequency.
Your frequency is tuned to the signal frequency.
TIP: When using a wired mouse
• While right-clicking on the screen, the frequency where the
cursor is located is displayed.
• By right-clicking and dragging the cursor, the frequency
changes. Release to return to the originally selected frequency.
• By clicking and dragging the cursor, the frequency changes
to that where the cursor is released.
D Displaying the Dual Scope screen
The transceiver has a Dual scope mode that
simultaneously displays the Main and Sub band
scopes during Dualwatch operation.
1. Display the SPECTRUM SCOPE screen.
» SCOPE
MENU
2. Touch [DUAL].
L Touching [DUAL] toggles between Dual scope and
Single scope.
The selected scope
is framed in orange.
The Sub band scope
is selected.
L Touching or clicking the scope that is not framed in
orange selects the Main band or Sub band scope.
L You can select the scope display type in the following
item.
»
SCOPE > EXPD/SET > Dual Scope Type
MENU
Example: "Side by Side"
L You can also set the Dual Scope Auto Select item not
to change the operating band (Main/Sub) when the
frequency is touched or clicked.
»
SCOPE > EXPD/SET >
MENU
Dual Scope Auto Select
3-4
