ADVANCED OPERATIONS
Operating PSK
A PSK encoder/decoder is built into the IC-7760.
Using a USB keyboard and contents set in the PSK
TX memory, you can do basic PSK operations without
using an external device or software.
L If you are using PSK software, refer to the software
manual.

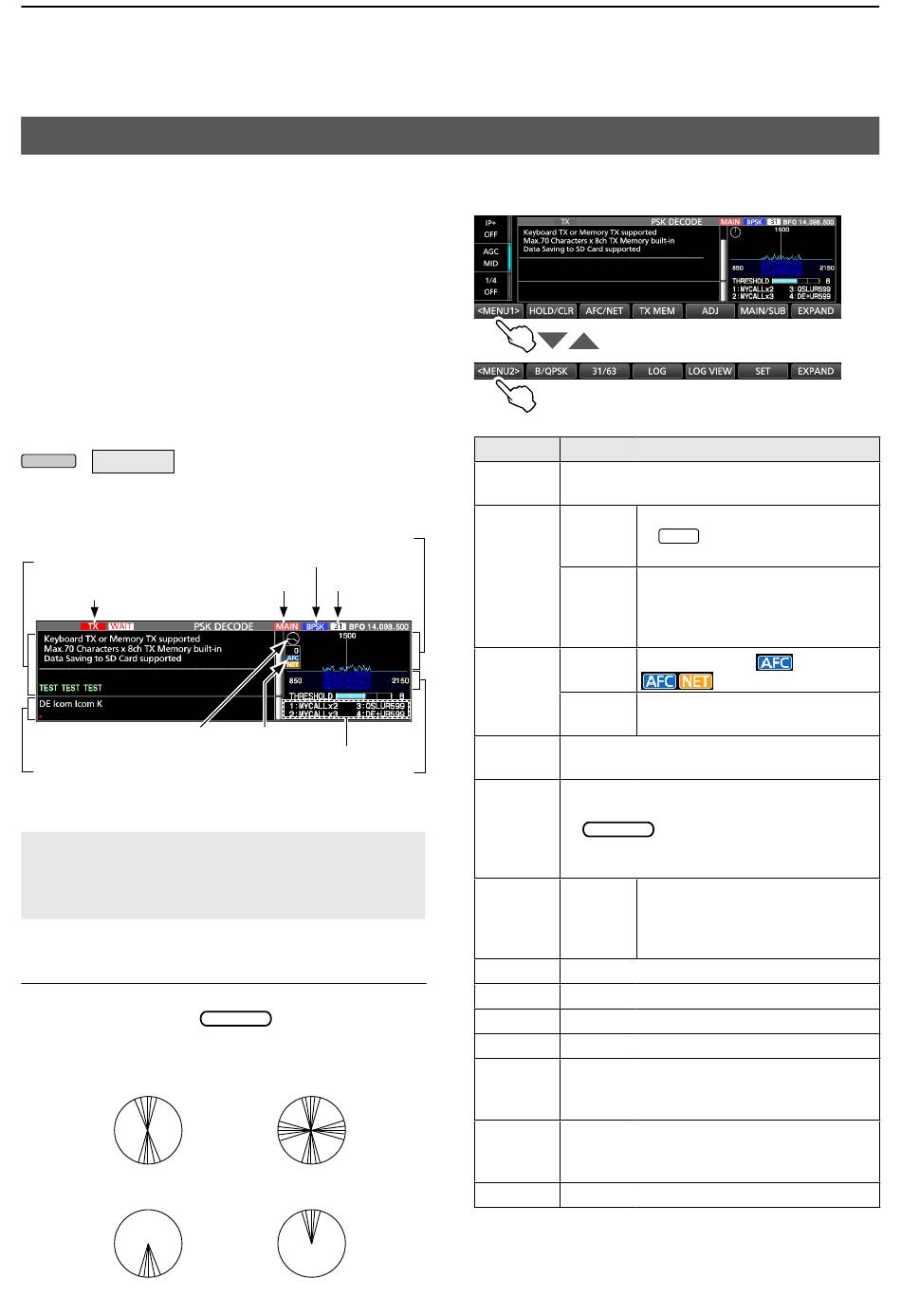

D Displaying the PSK DECODE screen
With the built-in demodulator and decoder, received
PSK signals are displayed on the PSK DECODE
screen.
L The decode screen for the RTTY mode differs slightly
from that of the PSK mode.
» DECODE
MENU
PSK DECODE screen
Decoded characters
MAIN/SUB band icon
Transmitting
Vector tuning
indicator
Transmitting contents
(Example: PT1)
NOTE: "WAIT" is displayed next to the transmitting
status indicator on the PSK DECODE screen while
buffering. If this appears, stop typing for a while and
try transmitting again.
Vector tuning indicator
The Vector tuning indicator is displayed when tuning
PSK signals by rotating
Indication example:
Tuned BPSK signal
BPSK/QPSK idle signal
FFT Scope zone
B/QPSK mode
BPSK 31/36
AFC/NET
PSK memory title
Waterfall zone
.
MAIN DIAL
Tuned QPSK signal
Unmodulated signal
D Using the PSK DECODE screen
Key
< MENU1 >
Selects the Function menus.
< MENU2 >
Touch
HOLD/CLR
Touch for
1 second
Touch
AFC/NET
Touch for
1 second
Opens the PSK MEMORY screen.
TX MEM
• Sending the PSK MEMORY PT1 ~ PT8.
Enters the threshold level adjustment mode.
• Checking the PSK DECODE, rotate
ADJ
MAIN DIAL
where the characters are not displayed by
noise.
Touch for
DEF
1 second
MAIN/SUB Selects the Main or Sub band.
EXPAND Selects the Expanded or Normal screen.
B/QPSK Selects the BPSK or QPSK mode.
31/63 Selects the BPSK31 or BPSK63 mode.
Displays the PSK DECODE LOG screen.
LOG • You can start or stop logging, and select
the file type.
Displays the PSK DECODE LOG VIEW
LOG VIEW screen.
• You can check the saved PSK log files.
SET Displays the PSK DECODE SET screen.
2-22
PSK DECODE screen <MENU1>
PSK DECODE screen <MENU2>
Action
Turns the Hold function ON or OFF.
• is displayed, and the
HOLD
PSK DECODE screen stops.
Clears the displayed characters.
• While the Hold function is ON,
this clears the characters and
cancels the Hold function.
Selects between
(AFC/NET: ON) or OFF.
Adds the offset frequency to the
operating frequency.
to adjust the threshold level to
Resets the Threshold level to the
default.
L The [DEF] key is displayed after
touching [ADJ].
(AFC: ON),
