2
ADVANCED OPERATIONS
DPD function

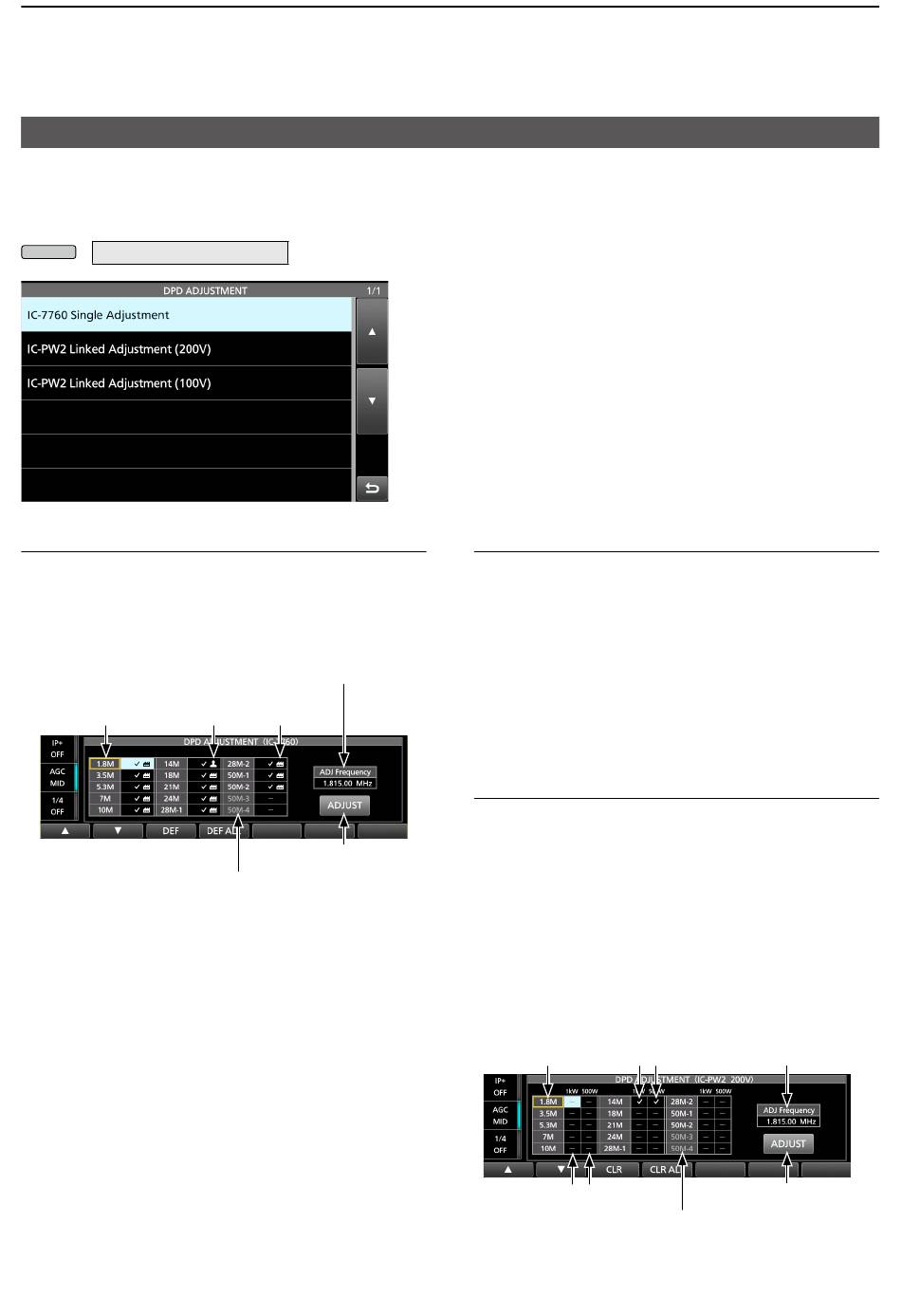

D About the DPD ADJUSTMENT screen
To open the DPD ADJUSTMENT screen, select "DPD
Adjustment" in the SET mode.
» SET > DPD Adjustment
MENU
IC-7760 Single Adjustment
Displays the screen for selecting the band for the DPD
single adjustment and checking the adjustment status
of each band is displayed.
L When using the DPD function only with the transceiver,
the function can be used in factory-adjusted conditions.
Selected band User
(Yellow border) adjusted
The band outside the
DPD operating range
L The band outside the DPD operating range differs,
depending on the transceiver version.
The DPD adjustment frequency
Factory
adjusted
[ADJUST]/[CANCEL] key
IC-PW2 Linked Adjustment (200V)
Displays the screen for selecting the band for the DPD
linked adjustment with the IC-PW2 at 180 ~ 264 V AC
and checking the adjustment status of each band at
1 kW or 500 W output is displayed.
L The adjustment starts at the maximum output power
selected on the IC-PW2.
L If the IC-PW2 is not connected, the previous DPD linked
adjustment status will be displayed.
L If the DPD linked adjustment cannot be performed, the
DPD single adjustment is required.
IC-PW2 Linked Adjustment (100V)
Displays the screen for selecting the band for the DPD
linked adjustment with the IC-PW2 at 90 ~ 132 V AC
and checking the adjustment status of each band at
500 W output is displayed.
L If the IC-PW2 is not connected, the previous DPD linked
adjustment status will be displayed.
L If the DPD linked adjustment cannot be performed, the
DPD single adjustment is required.
Example: The DPD ADJUSTMENT (IC-PW2 200V)
screen
Selected band
(Yellow border)
Unadjusted
L The band outside the DPD operating range differs,
depending on the transceiver version.
2-35
The DPD adjustment
Adjusted frequency
[ADJUST]/[CANCEL] key
The band outside the
DPD operating range
