Icom IC-7760 Advanced Manual page 108

11
OTHER FUNCTIONS

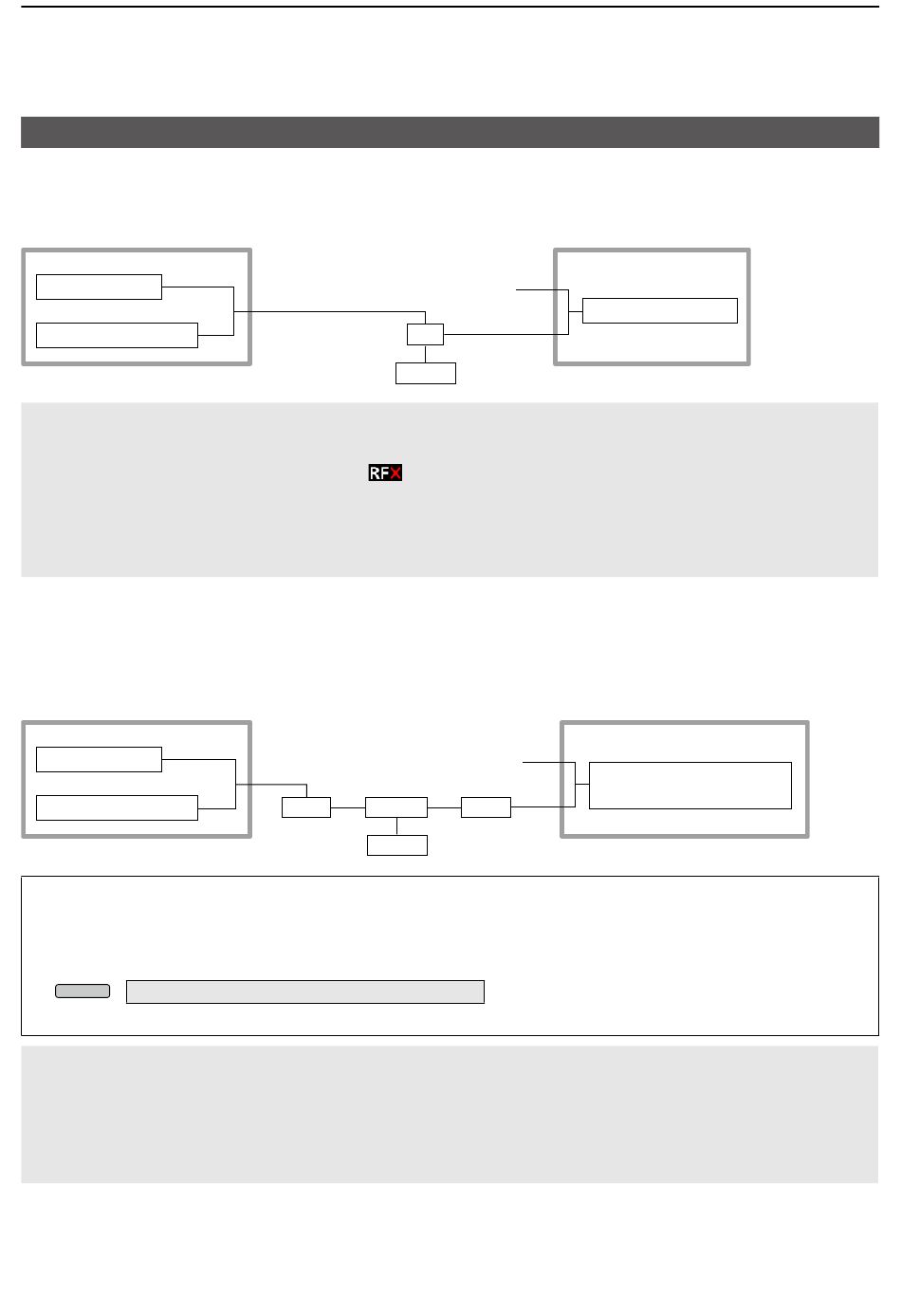

About IP connection between the controller and RF deck
Connecting the controller and RF deck through a network:
The controller and RF deck are connected through a network.
L All 3 IP addresses are used for the connection.
Controller
IP Address (LAN)
IP Address (Controller)
NOTE:
• You need to connect the controller and RF deck directly to pair them before using the transceiver for the first time, or after
performing an All reset. If you do not, they cannot be connected.
("The RF deck is not detected." is displayed and
• Use networking devices and ethernet cables that are compatible with Gigabit Ethernet.
• Operation cannot be guaranteed if:
- Connecting through a wireless LAN network.
- Using even one networking device or ethernet cable that is compatible only with Fast Ethernet or earlier, between the
controller and RF deck.
Connecting the controller and RF deck between different segments:
The controller and RF deck are connected between different segments (Example: LAN 1 and LAN 2).
L The RF deck cannot obtain a dynamic IP address from the DHCP server. Ask the network administrator for the network
settings.
Controller
IP Address (LAN)
IP Address (Controller)
TIP: To use this connection method
1. Turn ON the transceiver and confirm the controller and RF deck are connected.
• The indicator on the RF deck's front panel lights blue.
2. Set "Connection from Different Segment" to "ON," and then set the items in the "Different Segment Settings"
menu.
» SET > Network > Different Segment Settings
MENU
3. Restart the transceiver.
NOTE:
• Use networking devices and ethernet cables that are compatible with Gigabit Ethernet.
• Operation cannot be guaranteed if:
- Connecting through a wireless LAN network.
- Using even one networking device or ethernet cable that is compatible only with Fast Ethernet or earlier, between the
controller and RF deck.
• The controller and RF deck cannot be connected if NAT/IP masquerading or a packet filter is used on a router.
DO NOT connect
[RF DECK]
LAN
Internet
blinks.)
DO NOT connect
[RF DECK]
LAN 1 Router
Internet
RF deck
[CONTROLLER]
×
IP Address (RF Deck)
[LAN]
RF deck
[CONTROLLER]
×
Different Segment Settings >
[LAN]
IP Address (RF Deck)
LAN 2
11-10
