Icom IC-7760 Advanced Manual page 107

11
OTHER FUNCTIONS
About IP connection between the controller and RF deck
The IC-7760's controller and RF deck connect using the IP
method. The IC-7760 has 3 IP addresses described to the right,
and when you connect the controller and RF deck through a
network, all of 3 IP addresses are used.
L When you connect the controller and RF deck directly with the supplied control cable, settings of 3 IP addresses are not used
for the connection.
L When using the NTP function or remotely controlling by a PC using the RS-BA1, "IP Address (LAN)" is used to connect to a
network.
There are 4 connection methods.
in is a setting in the Set mode. Not used addresses are grayed in the images.
L
» SET > Network
MENU
NOTE: DO NOT connect 2 or more controllers, or other devices to the RF deck's [CONTROLLER].

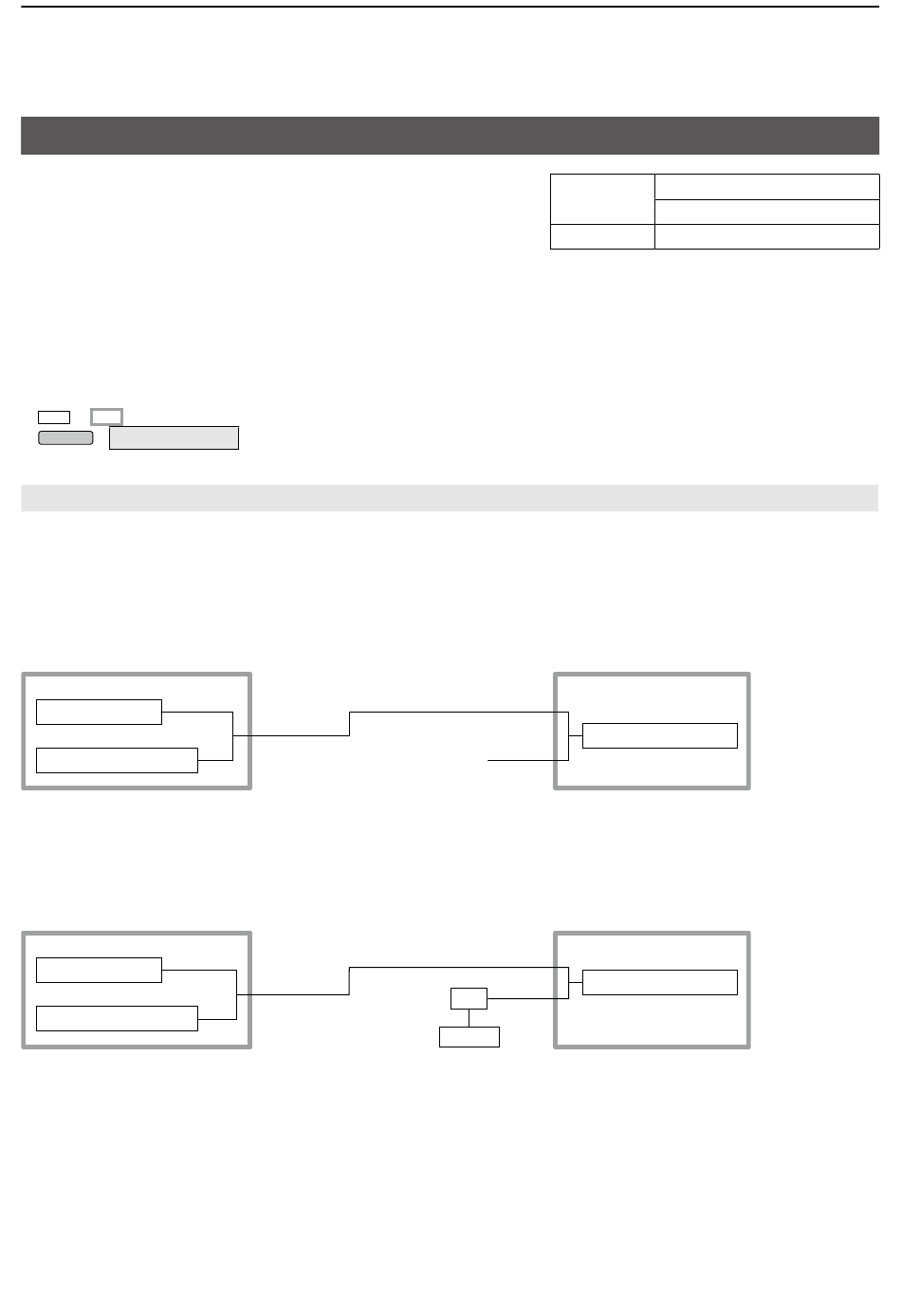

Connecting the controller and RF deck directly:
The controller and RF deck are directly connected with a supplied control cable.
L You have to connect like this before using the transceiver for the first time, or after performing an All reset.
The controller and RF deck are automatically paired after the RF deck is turned ON, and then the controller is turned ON.
L The IP addresses are not used for the connection.
Controller
IP Address (LAN)
IP Address (Controller)
Connecting the controller and RF deck directly, and connecting the RF deck to a network:
The controller and RF deck are directly connected with a supplied control cable, and the RF deck's [LAN] port is
connected to a network switch.
L "IP Address (LAN)" is used to connect to a network. Other IP addresses are not used to connect the controller and RF deck.
Controller
IP Address (LAN)
IP Address (Controller)
[RF DECK]
No connection
[RF DECK]
Controller
RF deck
RF deck
[CONTROLLER]
IP Address (RF Deck)
[LAN]
RF deck
[CONTROLLER]
IP Address (RF Deck)
[LAN]
LAN
Internet
11-9
IP Address (LAN)
IP Address (Controller)
IP Address (RF Deck)
