Icom IC-7760 Advanced Manual page 56

3
SCOPE OPERATION (ADVANCED)

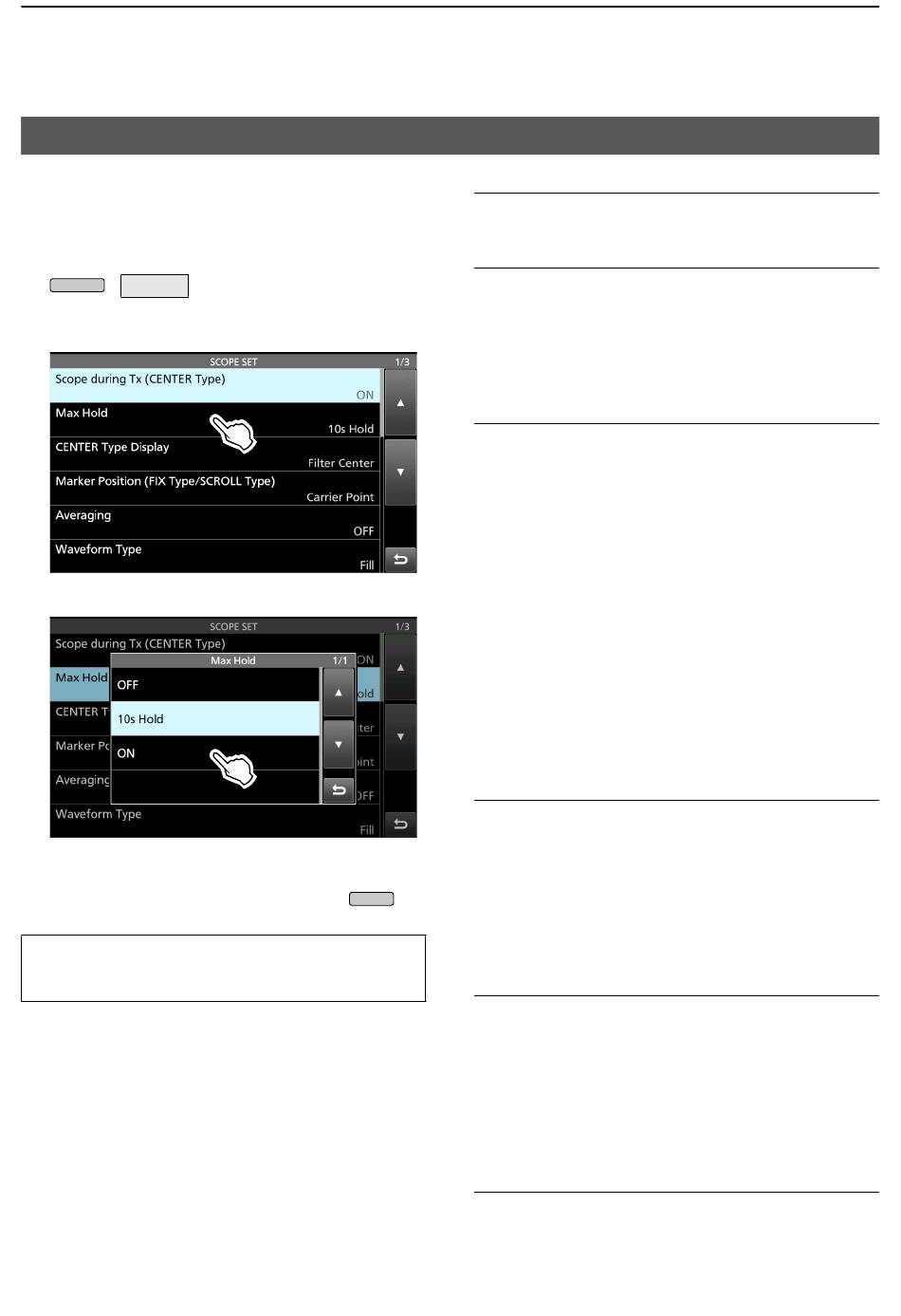

SCOPE SET screen
This screen is used to set the waveform color, Scope
range for the Fixed and Scroll-F modes, and other
settings.
1. Display the SPECTRUM SCOPE screen.
» SCOPE
MENU
2. Touch [EXPD/SET] for 1 second.
3. Touch the item to set. (Example: Max Hold)
4. Touch the option to set. (Example: ON)
L See to the right for details on the setting items and
their options.
5. To close the SCOPE SET screen, push
TIP: You can set each item to its default by touching
the item for 1 second, and then touching "Default" on
the QUICK MENU screen.
Scope during Tx (CENTER Type)
Turns the TX signal display ON or OFF.
Max Hold
Selects the Peak Level Holding function.
• OFF:
• 10s Hold: Holds the peak spectrum for 10 seconds.
• ON:
CENTER Type Display
Selects the center frequency of the SPECTRUM
SCOPE screen. (Only in the Center mode)
• Filter Center:
• Carrier Point Center:
• Carrier Point Center (Abs. Freq.):
Marker Position (FIX Type/SCROLL Type)
Selects the marker position on the SPECTRUM
SCOPE screen. (Only in the Fixed or Scroll mode)
• Filter Center: Displays the Marker on the selected
• Carrier Point: Displays the Marker on the carrier
.
EXIT
Averaging
Sets the FFT scope Waveform Averaging function to
between 2 and 4, or OFF.
• OFF:
• 2, 3, 4: The FFT scope screen averages 2 to 4
Waveform Type
Selects the outline waveform display for the FFT
scope screen.
• Fill:
• Fill+Line: Displays both the waveform and the
3-6
Turns OFF the Peak Level Holding
function.
Continuously holds the peak spectrum.
Displays the selected filter's center frequency
in the center of the SPECTRUM SCOPE
screen.
Displays the carrier point frequency of the
selected operating mode in the center of the
SPECTRUM SCOPE screen.
In addition to the carrier point center setting
above, the actual frequency is displayed at
the bottom of the scope.
L Abs. Freq. : Absolute Frequency
filter's center frequency.
point frequency of the selected
operating mode.
The FFT scope screen refreshes on each
sweep. This setting displays the critical
spectrum view.
sweeps to smoothly display the spectrum.
Displays only the waveform, in color.
outline, in color.
(Default: ON)
(Default: 10s Hold)
(Default: Filter Center)
(Default: Carrier Point)
(Default: OFF)
(Default: Fill)
