ADVANCED OPERATIONS
DPD function
D Clearing the DPD adjustment value
You can clear the DPD adjustment value in each
adjustment screen.
L The deletion range differs, depending on each screen.
L Even if the IC-PW2 is not connected, the DPD linked
adjustment value can be cleared.
To clear all the DPD single adjustment values and
the DPD linked adjustment values (100V/200V):

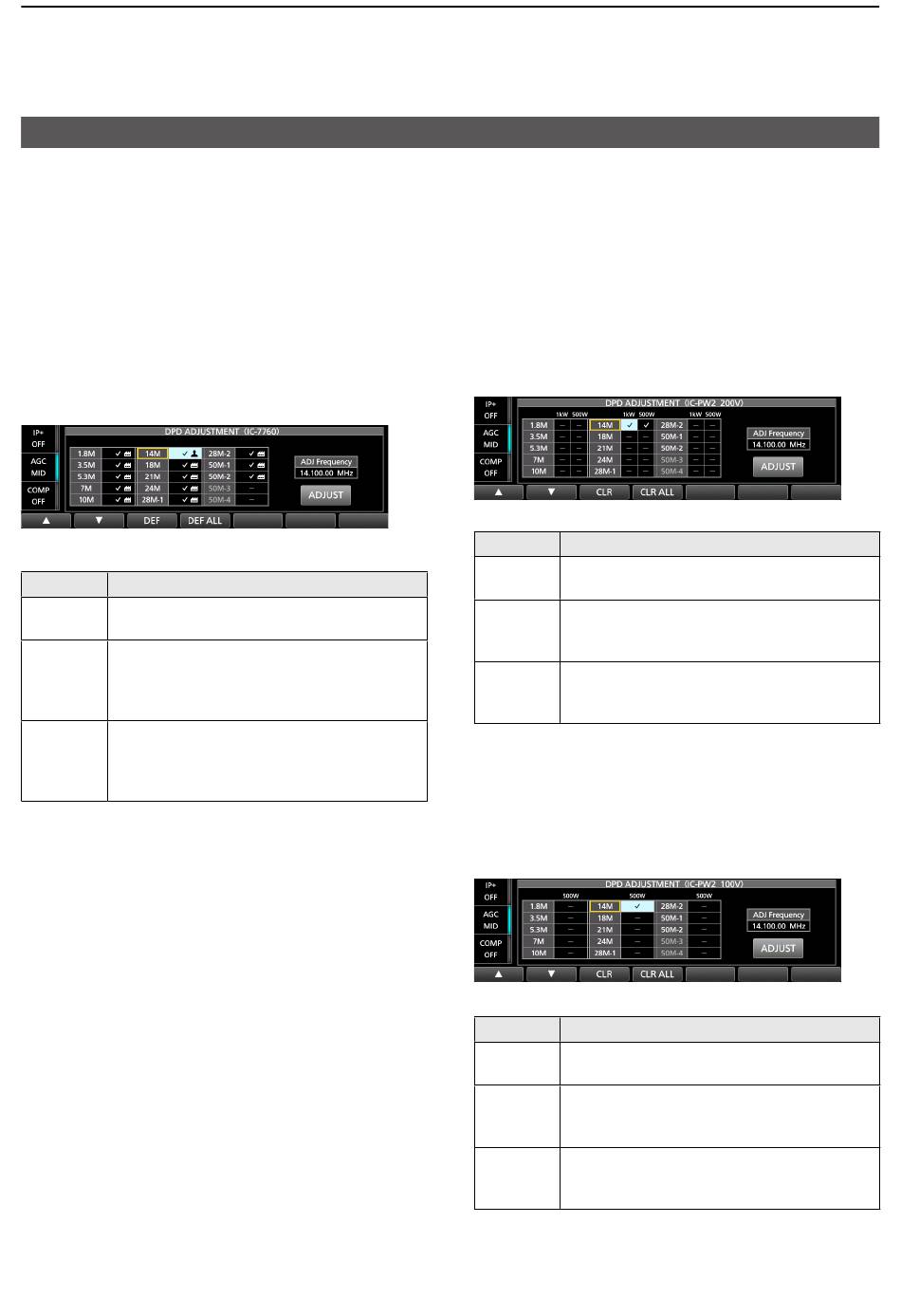

Touch the following keys on the DPD ADJUSTMENT
(IC-7760) screen.
Key
Selects the band.
▲/▼
L Usable only when the [DEF] key is pushed.
Clears all the DPD single adjustment values
and the DPD linked adjustment values
DEF
(100V/200V, at 1 kW and 500 W output)
registered in the selected band.
Clears all the DPD single adjustment values
and the DPD linked adjustment values
DEF ALL
(100V/200V, at 1 kW and 500 W output)
registered in all bands.
Action
To clear only the DPD linked adjustment value (200V):
Touch the following keys on the DPD ADJUSTMENT
(IC-PW2 200V) screen.
Key
Selects the band.
▲/▼
L Usable only when the [CLR] key is pushed.
Clears all the DPD linked adjustment values
CLR (200V, at 1 kW and 500 W output) registered
in the selected band.
Clears all the DPD linked adjustment values
CLR ALL (200V, at 1 kW and 500 W output) registered
in all bands.
To clear only the DPD linked adjustment value (100V):
Touch the following keys on the DPD ADJUSTMENT
(IC-PW2 100V) screen.
Key
Selects the band.
▲/▼
L Usable only when the [CLR] key is pushed.
Clears the DPD linked adjustment values
CLR (100V, at 500 W output) registered in the
selected band.
Clears all the DPD linked adjustment values
CLR ALL (100V, at 500 W output) registered in all
bands.
2-38
