Icom IC-7760 Advanced Manual page 105

11
OTHER FUNCTIONS
Screen Capture function
You can capture the transceiver display (Main and
Sub screen) onto an SD card or a USB flash drive.
Most of the screens used in this manual are captured
using this function.
However, some displays cannot be captured.
NOTE: To use the Screen Capture function, an SD
card or a USB flash drive (user supplied) is required.
D Setting the Screen Capture function
1. Open the "Screen Capture [POWER] Switch"
screen.
» SET > Function >
MENU
Screen Capture [POWER] Switch
2. Touch "ON" to turn ON the Screen Capture
function.
3. Select the SD card or USB flash drive to save
screen capture data in "Screen Capture Storage
Media."
» SET > Function >
MENU
Screen Capture Storage Media
4. Select the screen capture file type in "Screen
Capture File Type."
» SET > Function >
MENU
Screen Capture File Type
5. To close the FUNCTION screen, push
several times.
TIP: You can also assign the Screen Capture
function to the [Print Screen] key on the USB
keyboard.
» SET > Function >
MENU
Screen Capture Keyboard [Print Screen]
D Capturing a screen
1. Display the desired screen to capture.
2. Push to capture the screen.
POWER
• The captured screen is saved onto the selected
media.
L If "Screen Capture Keyboard [Print Screen]" is set to
ON, push [Print Screen] on the keyboard.

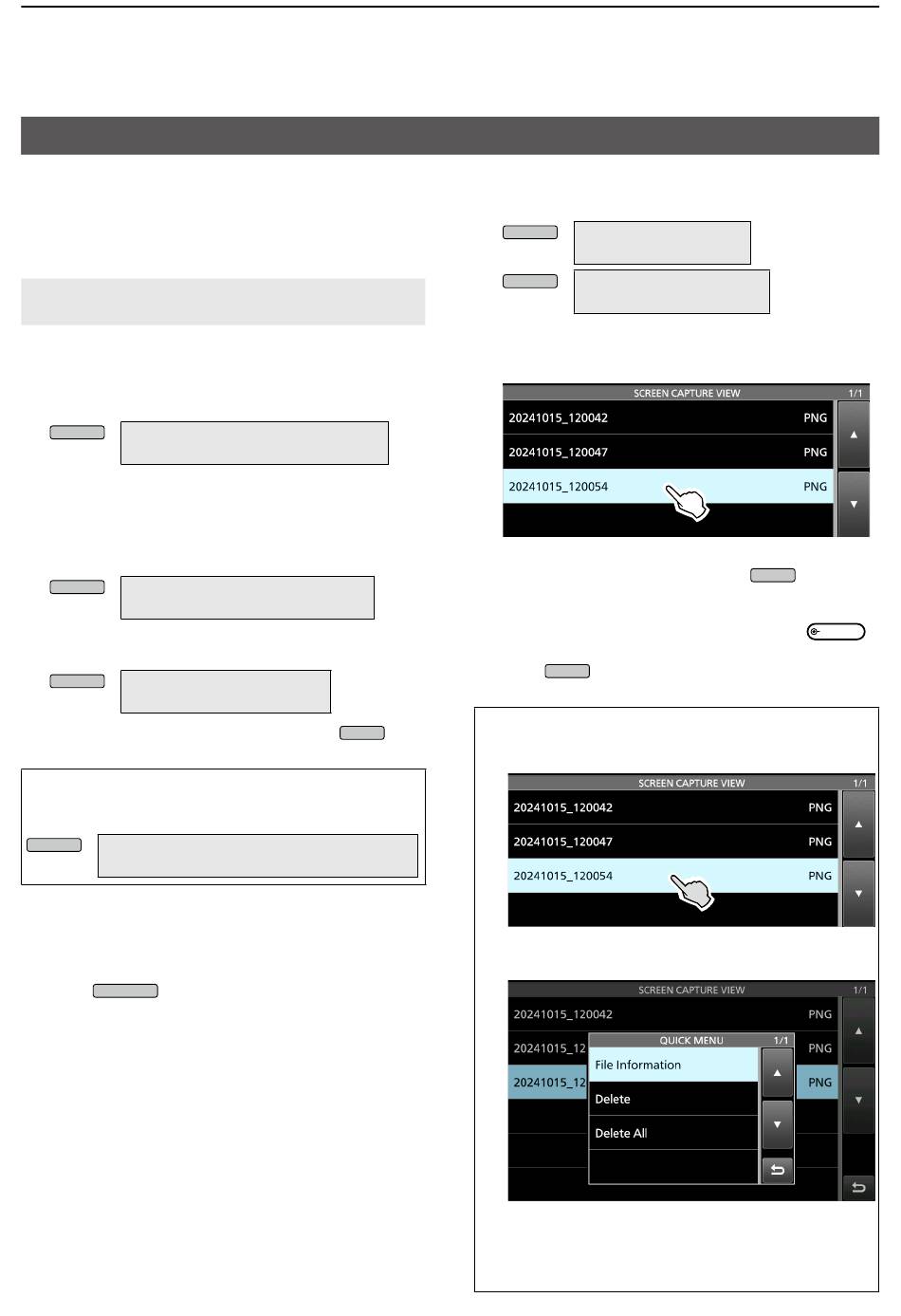

D Viewing the captured screen
1. Open the SCREEN CAPTURE VIEW screen.
MENU
MENU
• The capture list is displayed.
• The latest screen capture is at the top of the list.
2. Touch the desired screen capture to display it.
• The screen captures are displayed on the Main and
L While a screen capture is displayed, you can scroll
3. To close the SCREEN CAPTURE VIEW screen,
push
Checking the file information and deleting a file
EXIT
1. Touch the screen capture that you want to view
or delete for 1 second.
2. Touch an item from "File Information," "Delete,"
and "Delete All."
• File Information: Displays the file name, size, and
• Delete:
• Delete All:
11-7
» SET > SD Card >
Screen Capture View
» SET > USB Flash Drive >
Screen Capture View
Sub screens, and the indicator on
white.
through all the screen captures by rotating
several times.
EXIT
date of the selected screen capture.
Deletes the selected file.
Deletes all files.
blinks
NR
.
MULTI
