C
ONFIGURING THE
• Creation
via LACP.
Web – Click Port, Port Information or Trunk Information.
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type. (10G or 100-TX)
• MAC address – The physical layer address for this port. (To access
this item on the web, see "Setting the Switch's IP Address" on
page 3-20.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or
down).
• Speed-duplex – Shows the current speed and duplex mode. (Auto, or
fixed choice)
9. Trunk Information only.
3-122
S
WITCH
9
– Shows if a trunk is manually configured or dynamically set

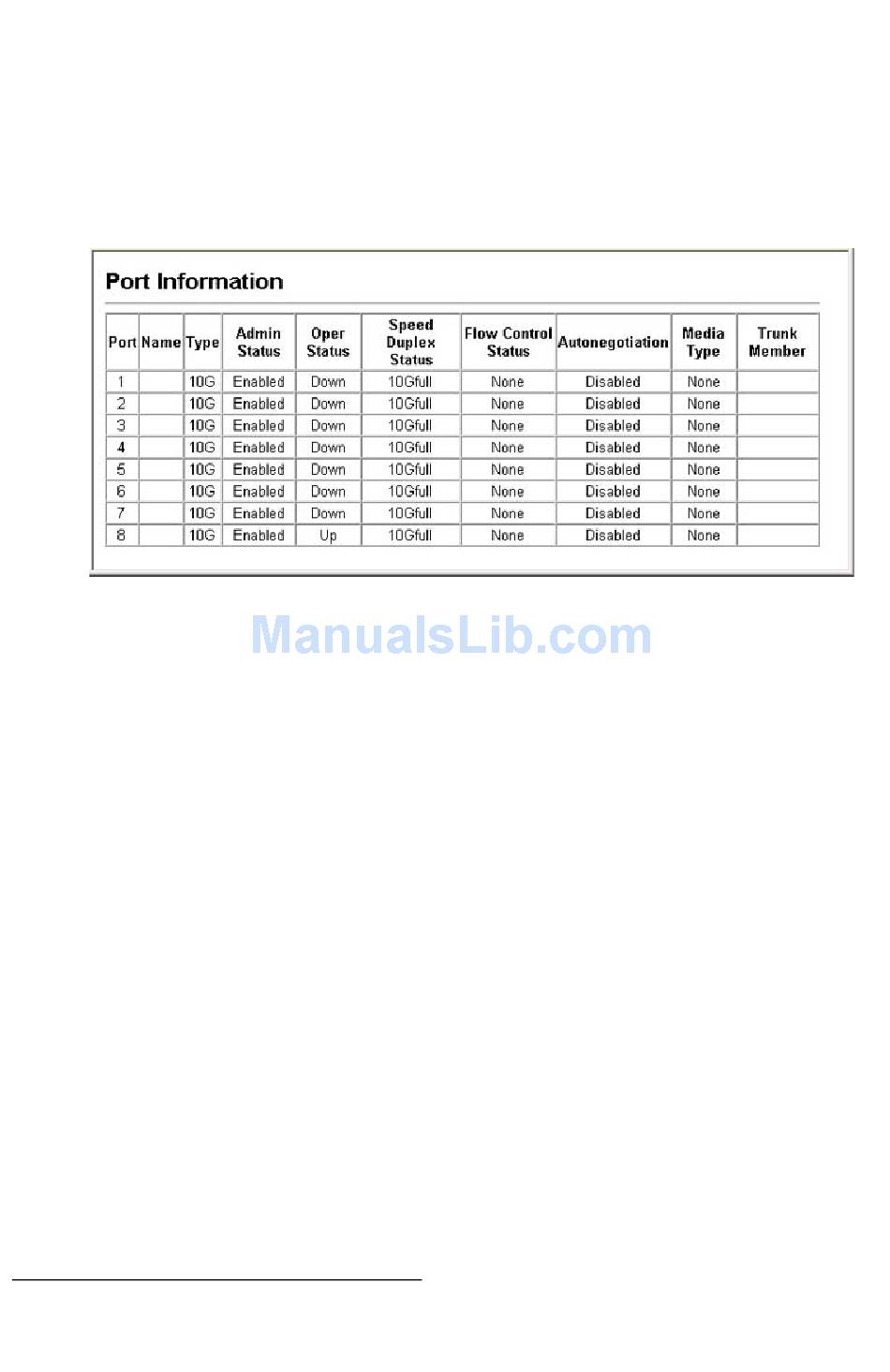

Figure 3-51 Port - Port Information
