Appendix B—Media Specifi cations

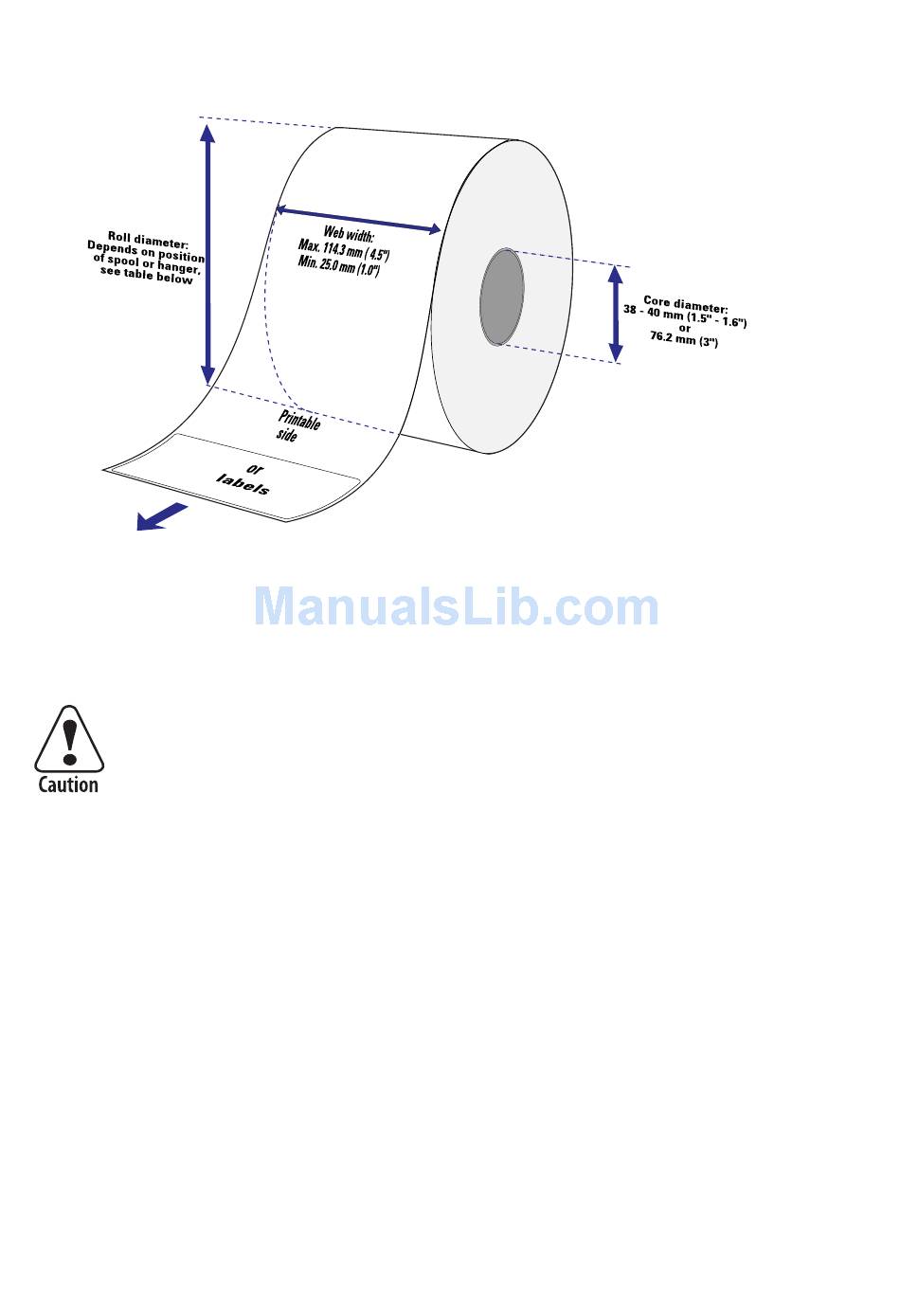

Media Roll Size

Core
Diameters:
Width:
The media must be wound up on the core in such a way
that the printer can pull the end free.
Roll
Max. diameter:
• Position 1
• Position 2
• Position 3
Max. width:
Min. width (standard):
Min. width (Quick-Load): 40 mm
The maximum recommended media thickness is 175µm (7 mils) with
the standard printhead or 220µm (8.7 mils) with a special printhead.
Thicker media may be used, but print quality will be reduced. The
stiffness is also important and must be balanced against thickness to
maintain print quality.
122
38-40 mm (1.5 inches) or
76.2 mm (3 inches)
Must not protrude outside the media.
152 mm
203 mm
213 mm
114.3 mm
25 mm
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
(6.00 inches)
(8.00 inches)
(8.38 inches)
(4.50 inches)
(1.00 inches)
(1.57 inches)
