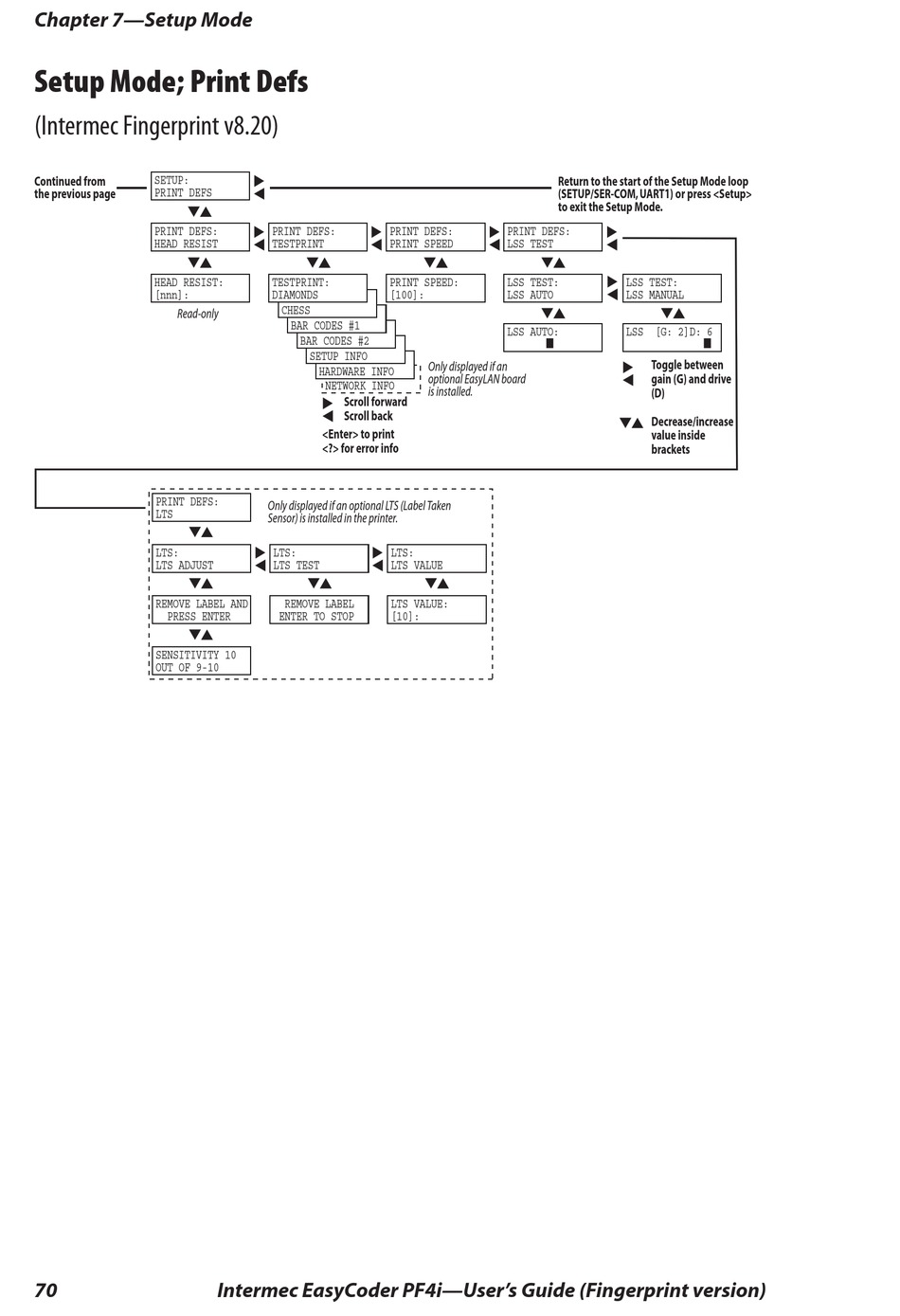

Chapter 7—Setup Mode
Setup Mode; Print Defs
(Intermec Fingerprint v8.20)
SETUP:
Continued from
PRINT DEFS
the previous page
PRINT DEFS:
HEAD RESIST
HEAD RESIST:
[nnn]:
Read-only
PRINT DEFS:
LTS
LTS:
LTS ADJUST
REMOVE LABEL AND
PRESS ENTER
SENSITIVITY 10
OUT OF 9-10
70
PRINT DEFS:
TESTPRINT
TESTPRINT:
DIAMONDS
TESTPRINT:
CHESS
TESTPRINT:
BAR CODES #1
TESTPRINT:
BAR CODES #2
TESTPRINT:
SETUP INFO
TESTPRINT:
HARDWARE INFO
TESTPRINT:
NETWORK INFO
Scroll forward
Scroll back
<Enter> to print
<?> for error info
Only displayed if an optional LTS (Label Taken
Sensor) is installed in the printer.
LTS:
LTS TEST
REMOVE LABEL
ENTER TO STOP
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
PRINT DEFS: PRINT DEFS:
PRINT SPEED LSS TEST
PRINT SPEED: LSS TEST:
[100]: LSS AUTO
LSS AUTO:
Only displayed if an
optional EasyLAN board
is installed.
LTS:
LTS VALUE
LTS VALUE:
[10]:
Return to the start of the Setup Mode loop
(SETUP/SER-COM, UART1) or press <Setup>
to exit the Setup Mode.
LSS TEST:
LSS MANUAL
LSS [G: 2]D: 6
Toggle between
gain (G) and drive
(D)
Decrease/increase
value inside
brackets
