Media Supply Positions

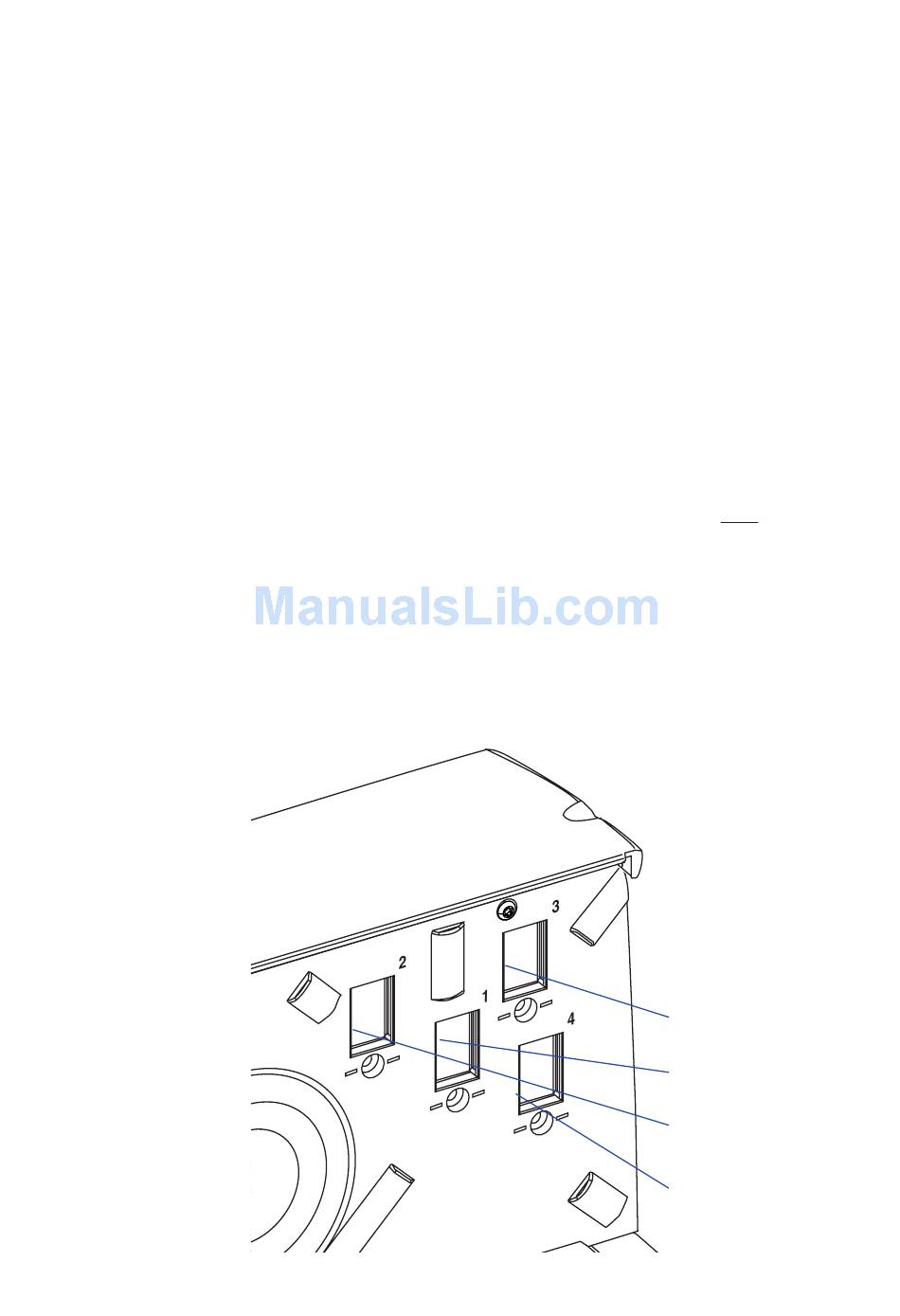

There are four sets of slots and threaded holes in the printer's center sec-
tion for the media supply roll post or rotating hub (optional). These slots
allow the largest possible roll size to fi t, given the limitations of any liner
takeup unit and/or the full enclosure provided by the long side door or
Megatop. The positions are indicated by numbers engraved in the center
section.
• Position 1 is used when the media compartment is fully enclosed by a
long side door, regardless of the existence of any integral liner takeup
unit. Maximum roll size is 152 mm (6 inches).
• Position 2 is used when the printer has a short side door that only
encloses the print mechanism, but does not have an integral liner
takeup unit. Maximum roll size is 203 mm (8.00 inches).
• Position 3 is used when the printer has a short side door and an
integral liner takeup unit. This position is also used with the optional
8-inch Megatop, see Chapter 9, "Options." Maximum roll size is 213
mm (8.38 inches).
• Position 4 is not used.
The printer can also use an external media supply located behind the
printer, unless it has an optional 8-inch Megatop.
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
Chapter 2—Installation
Position 3
Position 1
Position 2
Position 4
(not used)
