Installing the Quick-Load Guides

The Quick-Load guides may, depending on model, be factory-installed
or be enclosed in the box for optional installation by the user. They
replace the standard edge guide.
The Quick-Load guides facilitate media load from behind the print
mechanism and help guiding the media when using an external supply.
Quick-Load guides cannot be used for peel-off operation.
The standard ring-shaped edge guide is used when you want to load the
media from the side rather than from behind and is necessary for peel-off
operation
The EasyCoder PF4i comes with two sets of Quick-Load guides. The
narrow type can be used with media that is 40–114.3 mm (1.57–4.5 in.)
wide, and the wide type is used for media between 80 and 114.3 mm
(3.15–4.5 inches). The inner guide should be fi tted fl ush to the center
section, whereas the outer of the guide is adjustable for various media
widths. Refer to Chapter 4, "Media Load/Tear-Off with Quick-Load
Guides" for loading instructions.

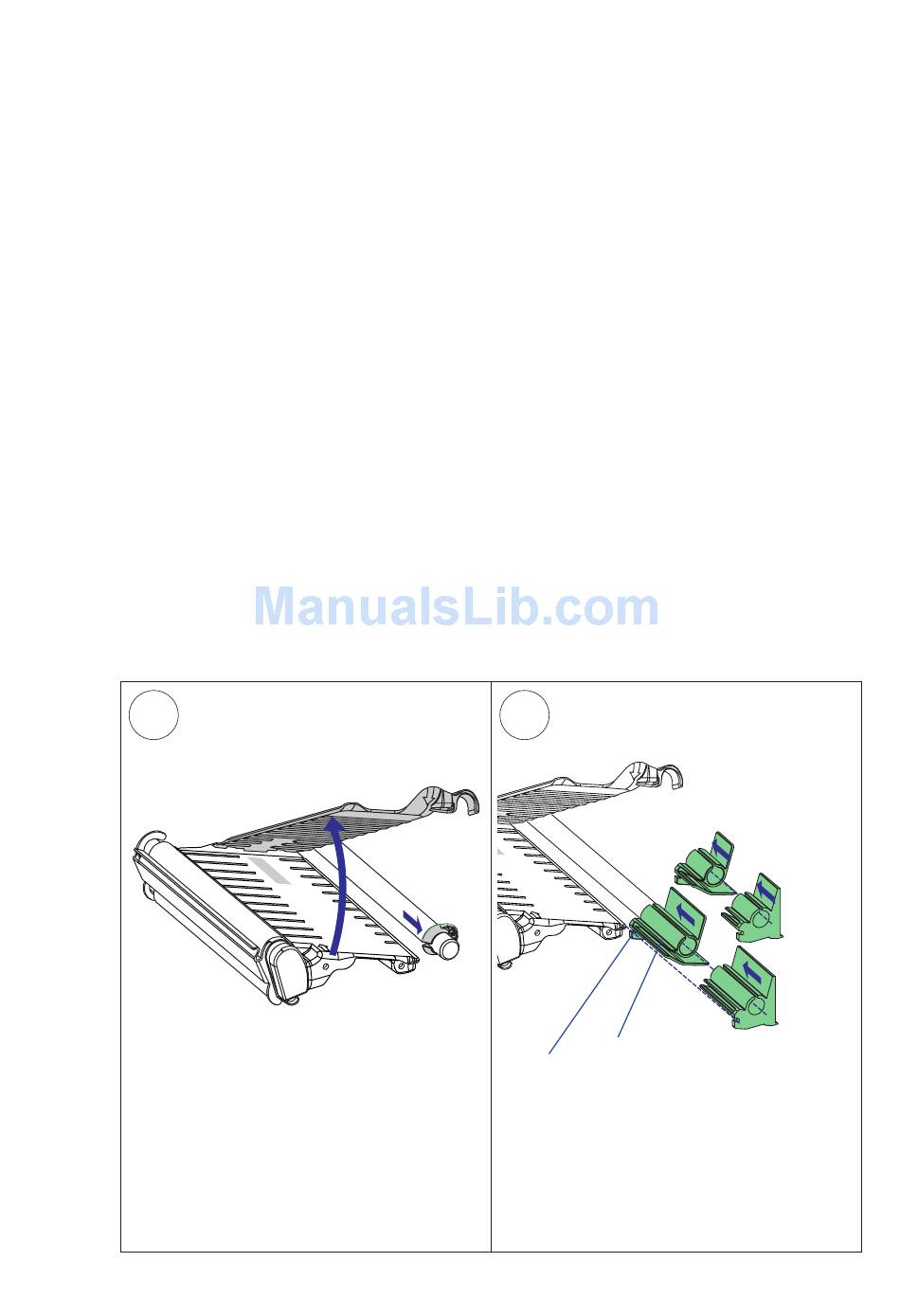

1
Lift up the upper media guide and pull
out the green edge guide (save it for
later use).
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
Chapter 12—Adjustments
2
Notch
Wide guides
Rail
Press the wide or narrow Quick-Load
guides onto the shaft as illustrated,
making sure that the notches fi t the rail
at the rear of the lower media guide.
Narrow guides
