Optional Interfaces

The printer can optionally be fi tted with one of the following interface
boards at the right-hand side of the printer's rear plate:
• Double Serial Interface Board (device "uart2:" and "uart3:")
• Serial/Industrial Interface Board (device "uart2:")
• IEEE 1284 Parallel Interface Board (device "centronics:")
Regardless of any of the interface board mentioned above is installed, the
printer can also be fi tted with one of the following EasyLAN interface
boards for connection to a Local Area Network (LAN):
• EasyLAN Ethernet Interface (device "net1:")
• EasyLAN Wireless Interface (device "net1:")

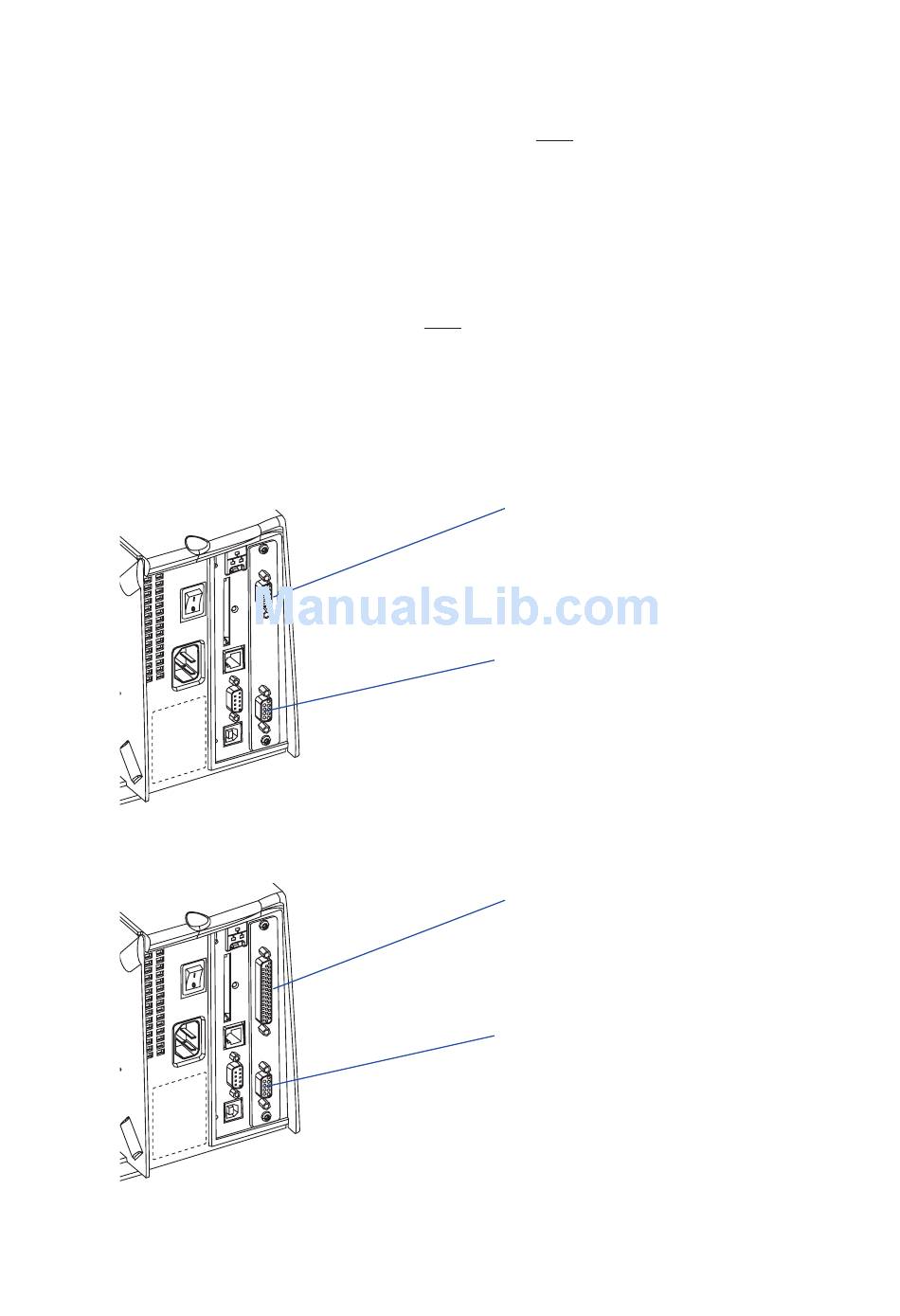

Double Serial Interface Board
Serial/Industrial Interface Board
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
Appendix C—Interfaces
"uart3:"
RS-232,
RS-422 non isolated,
or 20 mA current loop
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
Industrial interface
8 digital In ports
8 digital Out ports
4 relay ports
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
