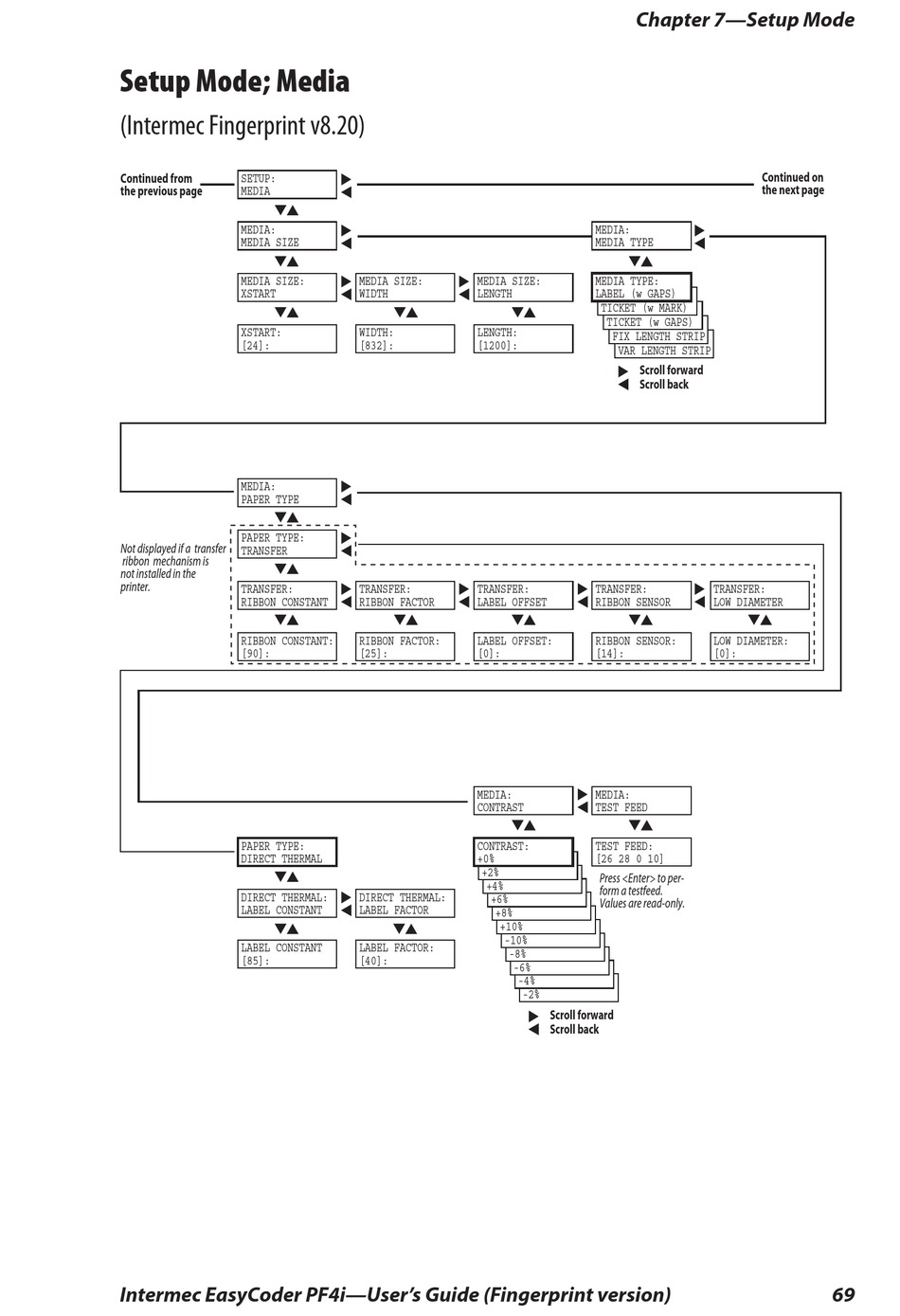

Setup Mode; Media
(Intermec Fingerprint v8.20)
Continued from
SETUP:
the previous page
MEDIA
MEDIA:
MEDIA SIZE
MEDIA SIZE:
XSTART
XSTART:
[24]:
MEDIA:
PAPER TYPE
PAPER TYPE:
Not displayed if a transfer
TRANSFER
ribbon mechanism is
not installed in the
printer.
TRANSFER:
RIBBON CONSTANT
RIBBON CONSTANT:
[90]:
PAPER TYPE:
DIRECT THERMAL
DIRECT THERMAL:
LABEL CONSTANT
LABEL CONSTANT
[85]:
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
MEDIA SIZE: MEDIA SIZE:
WIDTH LENGTH
WIDTH: LENGTH:
[832]: [1200]:
TRANSFER: TRANSFER:
RIBBON FACTOR LABEL OFFSET
RIBBON FACTOR: LABEL OFFSET:
[25]: [0]:
MEDIA:
CONTRAST
CONTRAST:
+0%
CONTRAST:
+2%
CONTRAST:
+4%
CONTRAST:
DIRECT THERMAL:
+6%
CONTRAST:
LABEL FACTOR
+8%
CONTRAST:
+10%
CONTRAST:
-10%
CONTRAST:
LABEL FACTOR:
-8%
CONTRAST:
[40]:
-6%
CONTRAST:
-4%
CONTRAST:
-2%
Chapter 7—Setup Mode
MEDIA:
MEDIA TYPE
MEDIA TYPE:
LABEL (w GAPS)
MEDIA TYPE:
TICKET (w MARK)
MEDIA TYPE:
TICKET (w GAPS)
MEDIA TYPE:
FIX LENGTH STRIP
MEDIA TYPE:
VAR LENGTH STRIP
Scroll forward
Scroll back
TRANSFER: TRANSFER:
RIBBON SENSOR LOW DIAMETER
RIBBON SENSOR: LOW DIAMETER:
[14]: [0]:
MEDIA:
TEST FEED
TEST FEED:
[26 28 0 10]
Press <Enter> to per-
form a testfeed.
Values are read-only.
Scroll forward
Scroll back
Continued on
the next page
